6506FE Series
Manufacturer: Belden Inc.
Beta
⌘K

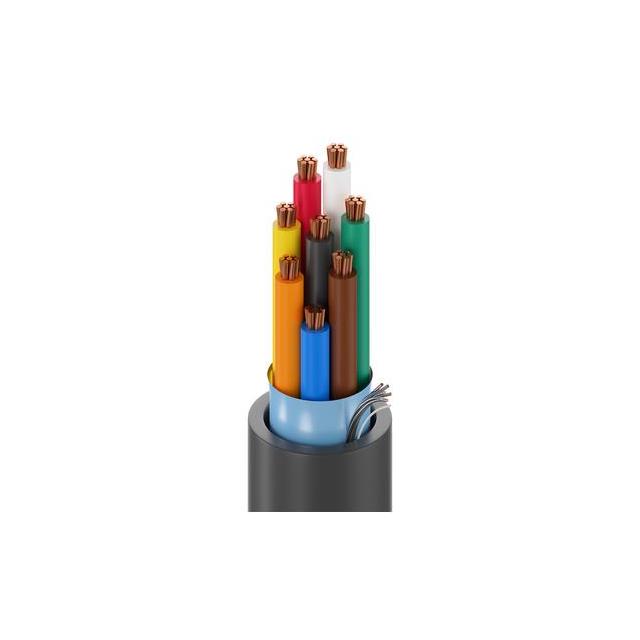

CABLE 8COND 22AWG NATURAL
| Part | Shield Material | Shield Coverage | Voltage | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Shield Type | Length | Length | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors [custom] | Cable Type | Jacket Color | Conductor Material | Conductor Insulation | Features | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 300 VDC | Security Sound | 75 ░C | 0 °C | 22 AWG | Foil | 304.8 m | 1000 ft | 0.381 mm | 0.015 in | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 30 AWG | 7 | 8 | Multi-Conductor | Natural | Copper Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) | Drain Wire Rip Cord | UL Style CMP | 0.19 in | 4.83 mm |
Belden Inc. | Aluminum | 100 % | 300 VDC | Security Sound | 75 ░C | 0 °C | 22 AWG | Foil | 304.8 m | 1000 ft | 0.381 mm | 0.015 in | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 30 AWG | 7 | 8 | Multi-Conductor | Violet | Copper Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) | Drain Wire Rip Cord | UL Style CMP | 0.19 in | 4.83 mm |
Belden Inc. | Aluminum | 100 % | 300 VDC | Security Sound | 75 ░C | 0 °C | 22 AWG | Foil | 152.4 m | 500 ft | 0.381 mm | 0.015 in | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 30 AWG | 7 | 8 | Multi-Conductor | Natural | Copper Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) | Drain Wire Rip Cord | UL Style CMP | 0.19 in | 4.83 mm |
