4119-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

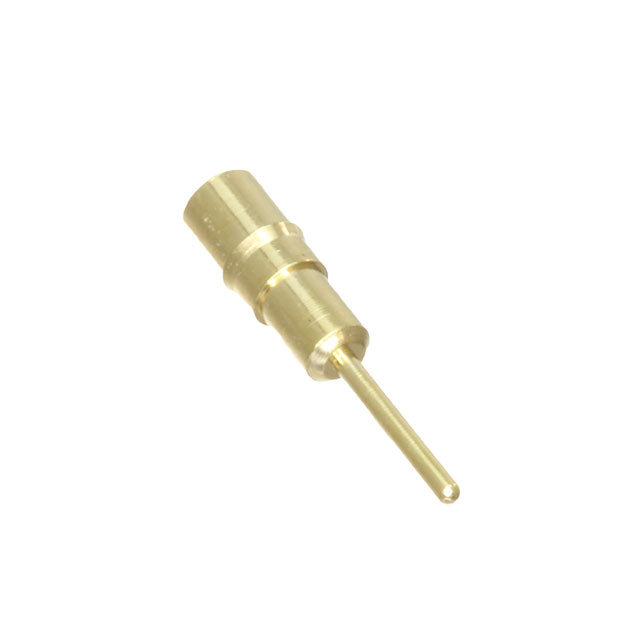

RECEPTACLE WITH A STANDARD TAIL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Accepts Square Pin Size | Accepts Square Pin Size | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Tail Diameter [diameter] | Tail Diameter [diameter] | Contact Finish | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Termination | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Socket Depth | Socket Depth | Tail Type | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.025 in | 0.64 mm | 0.078 " | 1.98 mm | 0.083 in | 2.11 mm | 30 Áin | 0.76 Ám | Beryllium Copper | 0.59 mm | 0.023 in | Gold | 0.64 mm | 0.037 in | 0.94 mm | 0.025 in | Press-Fit | 0.051 in | 1.3 mm | 0.183 in | 4.65 mm | Standard Tail | 0.406 " | 10.3 mm |
