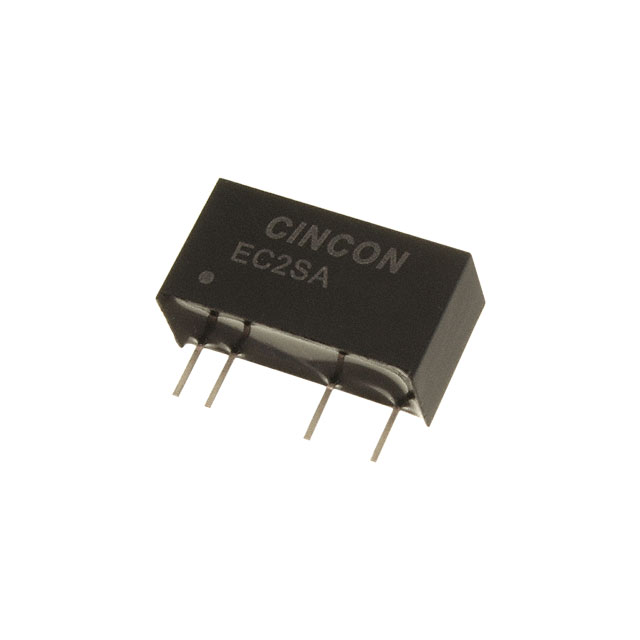

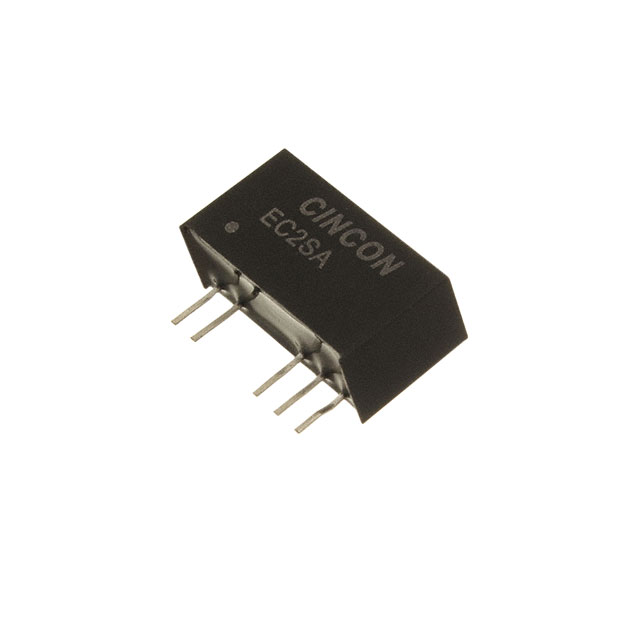

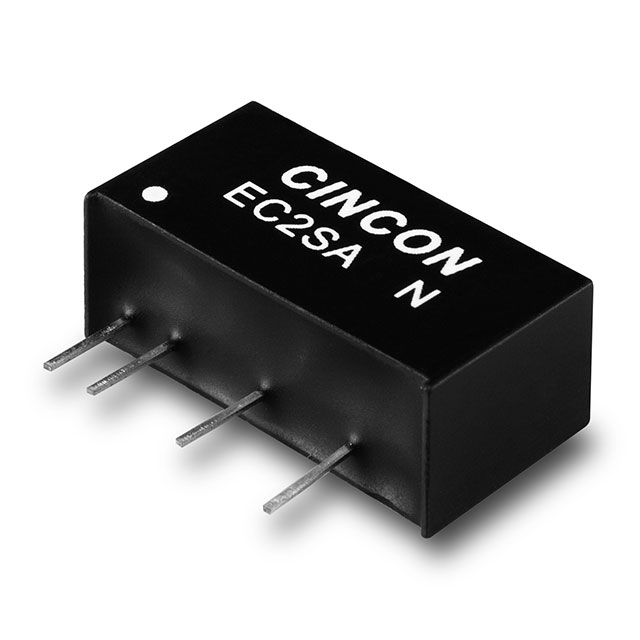

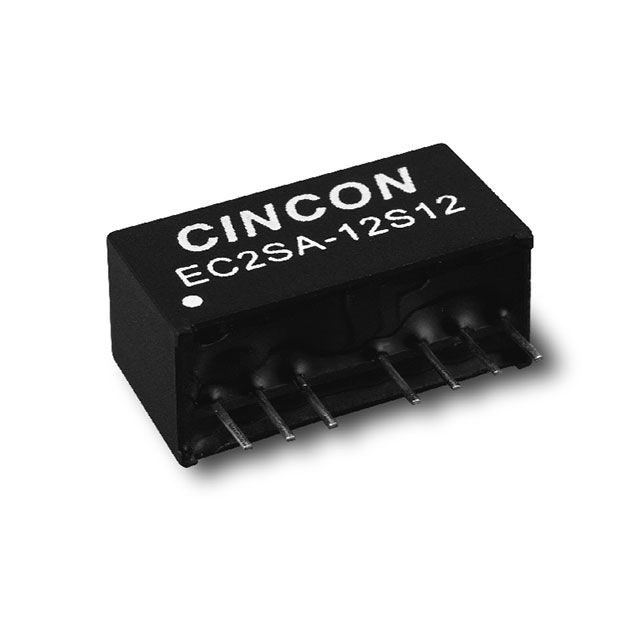

EC2SA Series

Isolated DC/DC Converters - Through Hole DC-DC Converter, 2 Watt, Unregulated Output, 12VDC Input, 5VDC Output

Manufacturer: Cincon Electronics Co. LTD

Catalog

Isolated DC/DC Converters - Through Hole DC-DC Converter, 2 Watt, Unregulated Output, 12VDC Input, 5VDC Output

Part	Efficiency	Voltage - Output 1	Type	Applications	Features	Voltage - Isolation	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Standard Number	Package / Case	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Cincon Electronics Co. LTD EC2SA-12S33N	76 %	3.3 V	Isolated Module	ITE (Commercial)	Remote On/Off SCP UVLO	1.5 kV	500 mA	Through Hole	1	60950-1	8-SIP Module 7 Leads	CE	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	18 V	-40 °C	85 °C	9 V	1.7 W

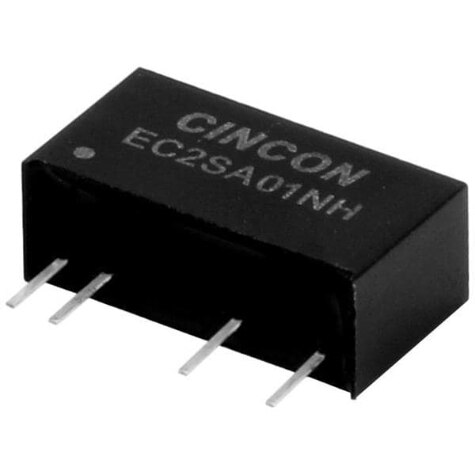

Cincon Electronics Co. LTD EC2SA13NH	87 %	15 V	Isolated Module	ITE (Commercial)		3000 V	134 mA	Through Hole	1		7-SIP Module 4 Leads	CE	0.28 in	0.4 "	0.77 in	19.6 mm	7.2 mm	10.2 mm	13.2 V	-40 °C	105 C	10.8 V	2 W
Cincon Electronics Co. LTD EC2SA15NH	87 %	15 V	Isolated Module	ITE (Commercial)		3000 V		Through Hole	2		7-SIP Module 5 Leads	CE	0.28 in	0.4 "	0.77 in	19.6 mm	7.2 mm	10.2 mm	13.2 V	-40 °C	105 C	10.8 V	2 W	67 mA	67 mA	-15 V
Cincon Electronics Co. LTD EC2SA-48D12N		12 V	Isolated Module	ITE (Commercial)	Remote On/Off SCP UVLO	1.5 kV		Through Hole	2	60950-1	8-SIP Module 7 Leads	CE	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	75 V	-40 °C	85 °C	36 V	2 W	83 mA	83 mA	-12 V
Cincon Electronics Co. LTD EC2SA22N	81 %	12 V	Isolated Module	ITE (Commercial)	SCP	1000 V	167 mA	Through Hole	1		6-SIP Module 5 Leads	CE	0.28 in	0.4 "	0.77 in	19.6 mm	7.2 mm	10.2 mm	26.4 V	-40 °C	85 °C	21.6 V	2 W
Cincon Electronics Co. LTD EC2SA-24D05N	79 %	5 V	Isolated Module	ITE (Commercial)	Remote On/Off SCP UVLO	1.5 kV		Through Hole	2	60950-1	8-SIP Module 7 Leads	CE	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	36 V	-40 °C	85 °C	18 V	2 W			-5 V
Cincon Electronics Co. LTD EC2SA-24D12N	81 %	12 V	Isolated Module	ITE (Commercial)	Remote On/Off SCP UVLO	1.5 kV		Through Hole	2	60950-1	8-SIP Module 7 Leads	CE	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	36 V	-40 °C	85 °C	18 V	2 W	83 mA	83 mA	-12 V
Cincon Electronics Co. LTD EC2SA-48D05N	78 %	5 V	Isolated Module	ITE (Commercial)	Remote On/Off SCP UVLO	1.5 kV		Through Hole	2	60950-1	8-SIP Module 7 Leads	CE	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	75 V	-40 °C	85 °C	36 V	2 W			-5 V
Cincon Electronics Co. LTD EC2SA05N	86 %	15 V	Isolated Module	ITE (Commercial)	SCP	1000 V		Through Hole	2		6-SIP Module 5 Leads	CE	0.28 in	0.4 "	0.77 in	19.6 mm	7.2 mm	10.2 mm	5.5 V	-40 °C	85 °C	4.5 V	2 W	67 mA	67 mA	-15 V
Cincon Electronics Co. LTD EC2SA23NH	88 %	15 V	Isolated Module	ITE (Commercial)		3000 V	134 mA	Through Hole	1		7-SIP Module 4 Leads	CE	0.28 in	0.4 "	0.77 in	19.6 mm	7.2 mm	10.2 mm	26.4 V	-40 °C	105 C	21.6 V	2 W
