GRPB042 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 8POS 1.27MM

Part	Contact Length - Mating	Contact Length - Mating	Features	Contact Finish Thickness - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Material	Contact Finish - Mating	Contact Type	Style	Number of Positions	Material Flammability Rating	Fastening Type	Mounting Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Shape	Insulation Height	Insulation Height	Shrouding	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Number of Rows	Overall Contact Length [x]	Overall Contact Length	Contact Length - Post	Contact Length - Post

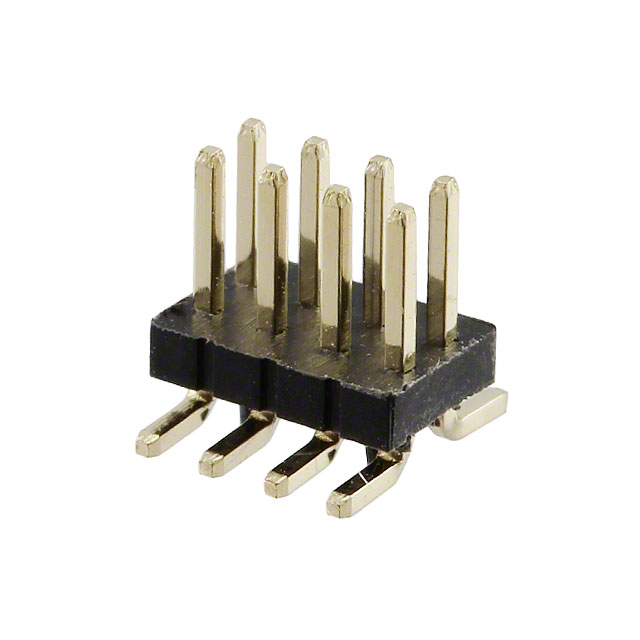

Sullins Connector Solutions GRPB042VWQP-RC	3 mm	0.118 in	Board Guide	Flash	Solder	-40 °C	105 ░C	Gold	Nylon 9T Polyamide (PA9T)	Gold	Male Pin	Board to Board Cable	8	UL94 V-0	Push-Pull	Surface Mount	Brass	0.05 in	1.27 mm	Header	Square	0.039 "	1 mm	Unshrouded	All	0.05 in	1.27 mm	Flash	2

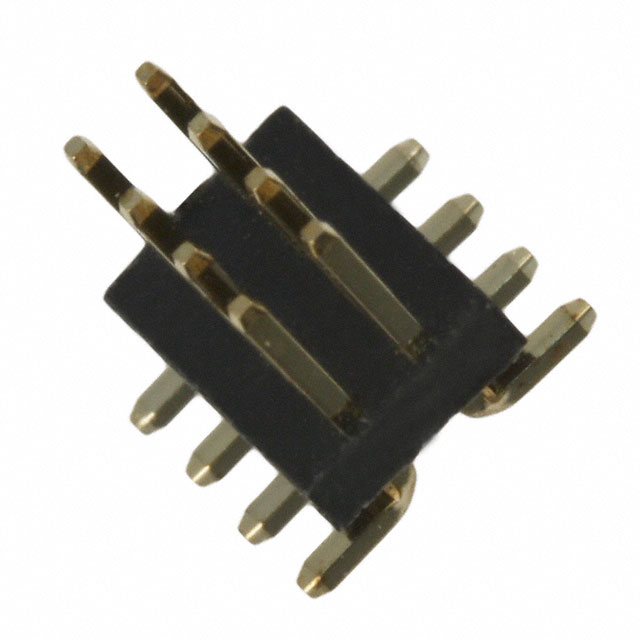

Sullins Connector Solutions GRPB042VWQS-RC	3 mm	0.118 in		Flash	Solder	-40 °C	105 ░C	Gold	Nylon 9T Polyamide (PA9T)	Gold	Male Pin	Board to Board Cable	8	UL94 V-0	Push-Pull	Surface Mount	Brass	0.05 in	1.27 mm	Header	Square	0.039 "	1 mm	Unshrouded	All	0.05 in	1.27 mm	Flash	2

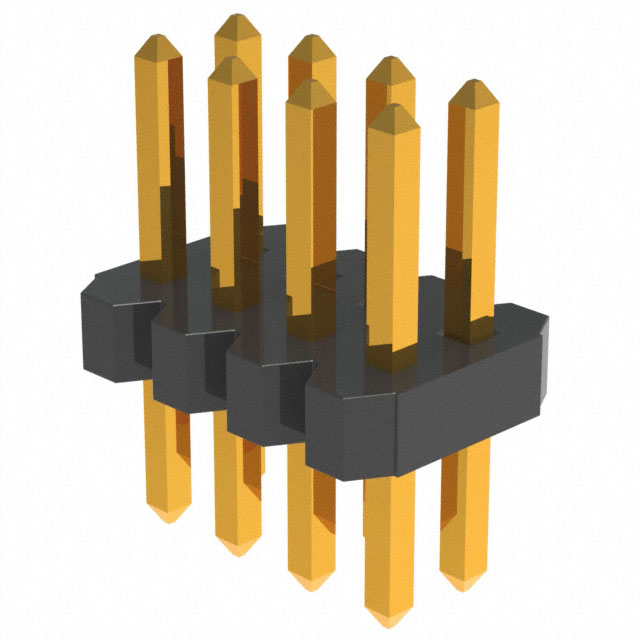

Sullins Connector Solutions GRPB042VWVN-RC	3 mm	0.118 in		Flash	Solder	-40 °C	105 ░C	Gold	Nylon 9T Polyamide (PA9T)	Gold	Male Pin	Board to Board Cable	8	UL94 V-0	Push-Pull	Through Hole	Brass	0.05 in	1.27 mm	Header	Square	0.039 "	1 mm	Unshrouded	All	0.05 in	1.27 mm	Flash	2	0.248 in	6.3 mm	0.091 in	2.3 mm

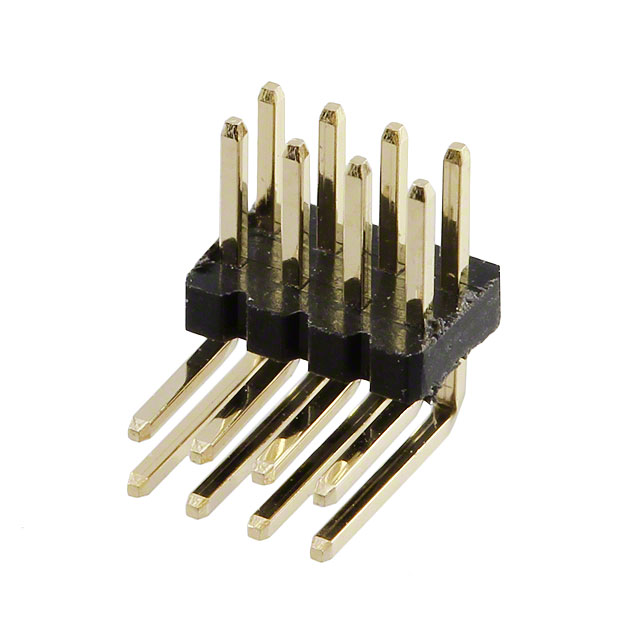

Sullins Connector Solutions GRPB042MWCN-RC	3 mm	0.118 in		Flash	Solder	-40 °C	105 ░C	Gold	Nylon 9T Polyamide (PA9T)	Gold	Male Pin	Board to Board Cable	8	UL94 V-0	Push-Pull	Through Hole Right Angle	Brass	0.05 in	1.27 mm	Header	Square	0.134 in	3.4 mm	Unshrouded	All	0.05 in	1.27 mm	Flash	2			0.098 in	2.5 mm
