111626 Series

Catalog

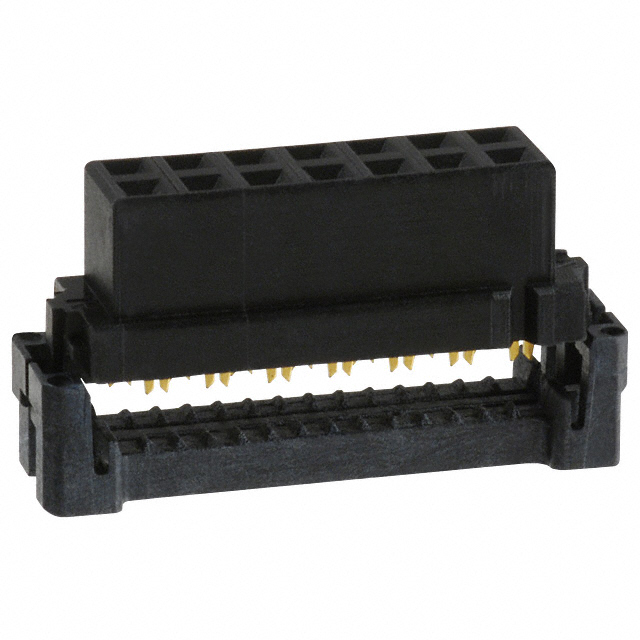

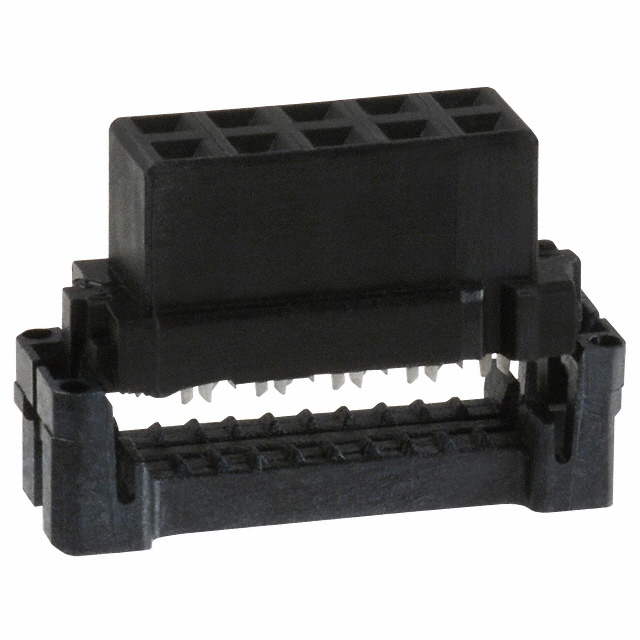

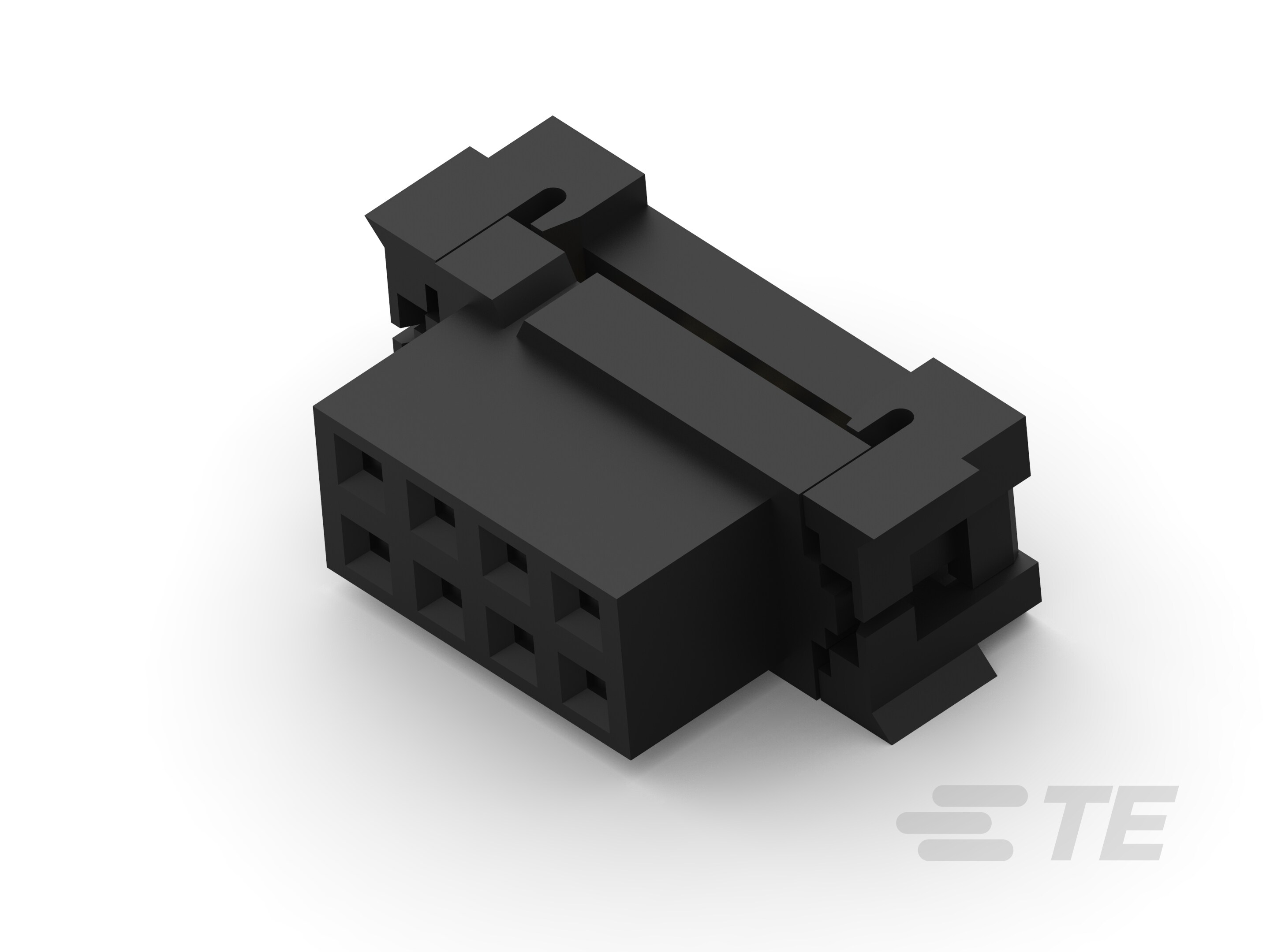

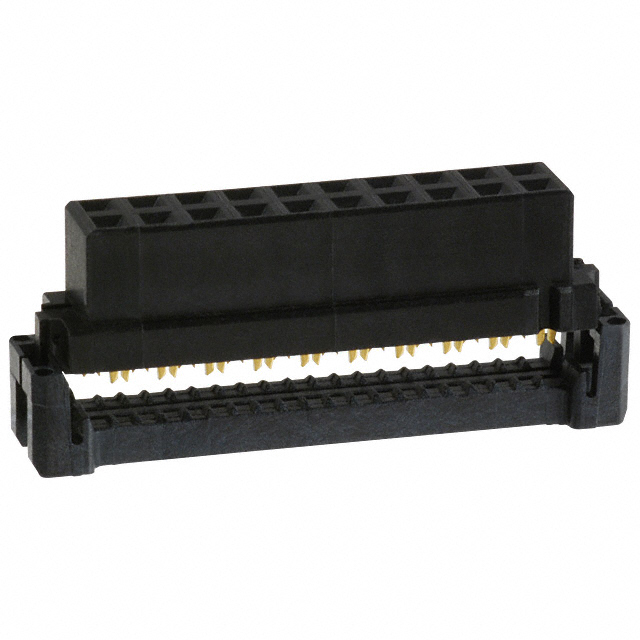

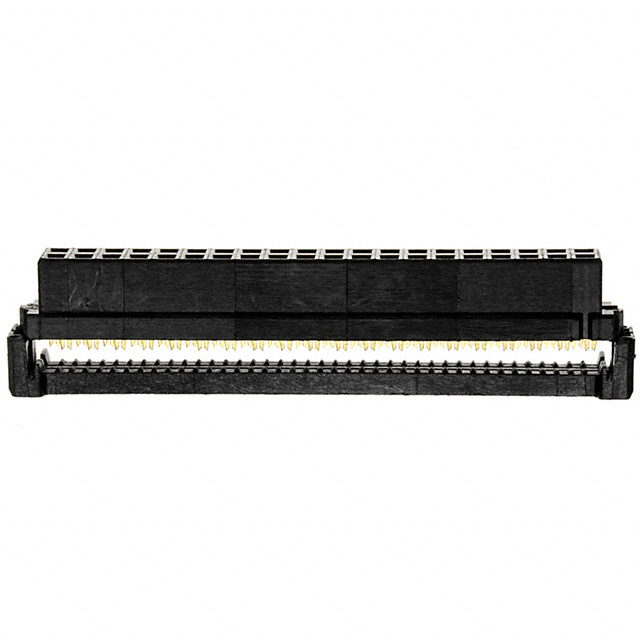

CONN IDC CONNECTOR RCP 44 POS 2MM IDT RA SIDE ENTRY CABLE MOUNT TUBE

Part	Wire Gauge	Cable Termination	Wire Type	Number of Positions	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Number of Rows [custom]	Mounting Type	Connector Type	Contact Type	Features	Pitch [x]	Pitch [x]

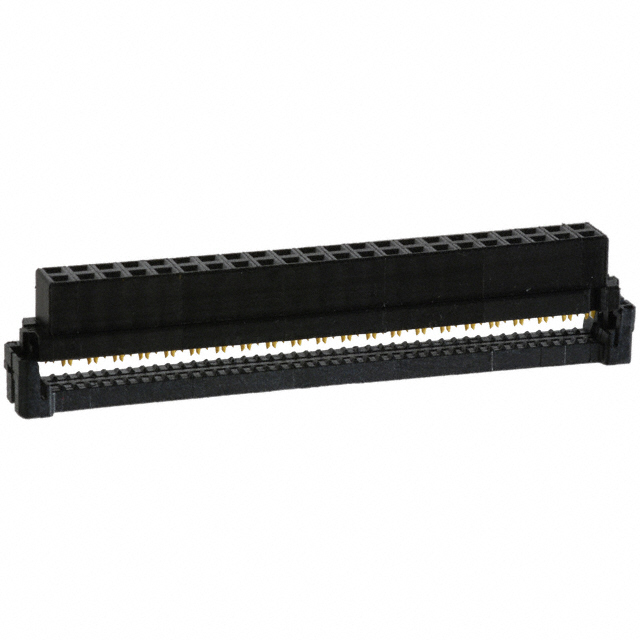

TE Connectivity AMP Connectors 2-111626-2	28 AWG	IDC	Ribbon Cable	44	Gold	Black	30 Áin	0.76 Ám	2 mm	0.079 in	2	Free Hanging (In-Line)	Receptacle	Female Socket	Feed Through	0.079 in	2 mm
TE Connectivity AMP Connectors 111626-4	28 AWG	IDC	Ribbon Cable	20	Gold	Black	30 Áin	0.76 Ám	2 mm	0.079 in	2	Free Hanging (In-Line)	Receptacle	Female Socket	Feed Through	0.079 in	2 mm
TE Connectivity AMP Connectors 111626-2	28 AWG	IDC	Ribbon Cable	14	Gold	Black	30 Áin	0.76 Ám	2 mm	0.079 in	2	Free Hanging (In-Line)	Receptacle	Female Socket	Feed Through	0.079 in	2 mm

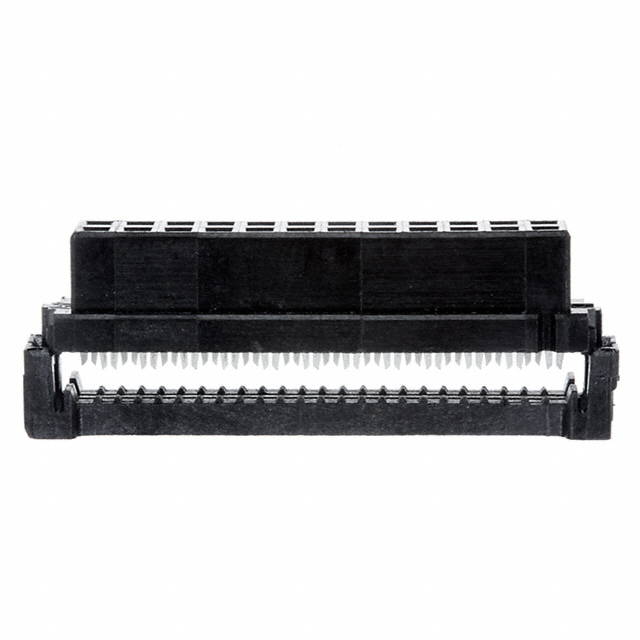

TE Connectivity AMP Connectors 2-111626-6	28 AWG	IDC	Ribbon Cable	24	Gold	Black	30 Áin	0.76 Ám	2 mm	0.079 in	2	Free Hanging (In-Line)	Receptacle	Female Socket	Feed Through	0.079 in	2 mm
TE Connectivity AMP Connectors 1-111626-9	28 AWG	IDC	Ribbon Cable	20	Gold	Black	30 Áin	0.76 Ám	2 mm	0.079 in	2	Free Hanging (In-Line)	Receptacle	Female Socket	Feed Through	0.079 in	2 mm
TE Connectivity AMP Connectors 111626-9	28 AWG	IDC	Ribbon Cable	40	Gold	Black	30 Áin	0.76 Ám	2 mm	0.079 in	2	Free Hanging (In-Line)	Receptacle	Female Socket	Feed Through	0.079 in	2 mm
TE Connectivity AMP Connectors 111626-1	28 AWG	IDC	Ribbon Cable	10	Gold	Black	30 Áin	0.76 Ám	2 mm	0.079 in	2	Free Hanging (In-Line)	Receptacle	Female Socket	Feed Through	0.079 in	2 mm
