PEC07 Series

Manufacturer: Sullins Connector Solutions

Catalog

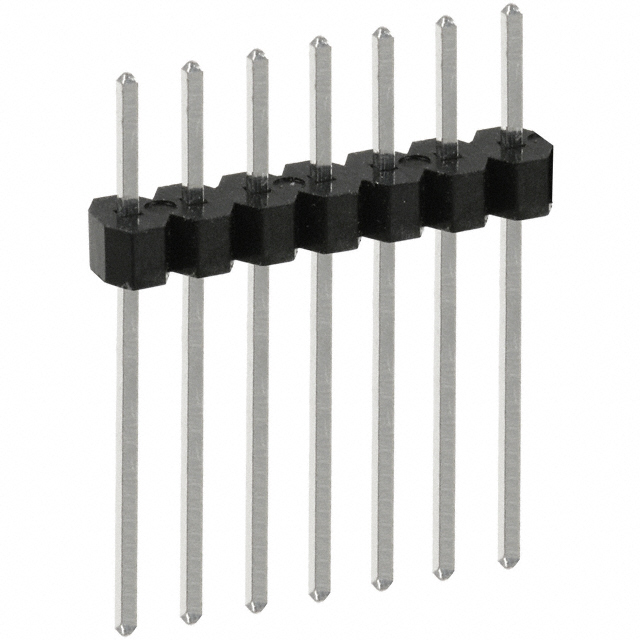

CONN HEADER VERT 7POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Termination	Pitch - Mating	Pitch - Mating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Style	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Connector Type	Shrouding	Insulation Color	Contact Type	Mounting Type	Number of Positions	Number of Positions Loaded	Fastening Type	Number of Rows	Contact Material	Current Rating (Amps)	Contact Length - Post [custom]	Contact Length - Post [custom]	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PEC07SFEN	2.54 µm	100 µin	Square	Solder	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	100 çin	2.54 çm	Tin	23.83 mm	0.938 in	Board to Board Cable	0.52 in	13.21 mm	8.08 mm	0.318 in	0.1 in	2.54 mm	UL94 V-0	Header Breakaway	Unshrouded	Black	Male Pin	Through Hole	7	All	Push-Pull	1	Phosphor Bronze	3 A
Sullins Connector Solutions PEC07SGBN	2.54 µm	100 µin	Square	Solder	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	100 çin	2.54 çm	Tin			Board to Board Cable			8.08 mm	0.318 in	0.14 in	3.56 mm	UL94 V-0	Header Breakaway	Unshrouded	Black	Male Pin	Right Angle Through Hole	7	All	Push-Pull	1	Phosphor Bronze	3 A	5.08 mm	0.2 "
Sullins Connector Solutions PEC07SAAN	2.54 µm	100 µin	Square	Solder	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	100 çin	2.54 çm	Tin			Board to Board Cable	0.12 in	3.05 mm	5.84 mm	0.23 in	0.1 in	2.54 mm	UL94 V-0	Header Breakaway	Unshrouded	Black	Male Pin	Through Hole	7	All	Push-Pull	1	Phosphor Bronze	3 A			11.43 mm	0.45 in
Sullins Connector Solutions PEC07SACN	2.54 µm	100 µin	Square	Solder	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	100 çin	2.54 çm	Tin	16.51 mm	0.65 in	Board to Board Cable	0.32 in	8.13 mm	5.84 mm	0.23 in	0.1 in	2.54 mm	UL94 V-0	Header Breakaway	Unshrouded	Black	Male Pin	Through Hole	7	All	Push-Pull	1	Phosphor Bronze	3 A
Sullins Connector Solutions PEC07DGBN	2.54 µm	100 µin	Square	Solder	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	100 çin	2.54 çm	Tin			Board to Board Cable			8.08 mm	0.318 in			UL94 V-0	Header Breakaway	Unshrouded	Black	Male Pin	Right Angle Through Hole	14	All	Push-Pull		Phosphor Bronze	3 A	5.08 mm	0.2 "			6.1 mm	0.24 in	2	0.1 in	2.54 mm
Sullins Connector Solutions PEC07DACN	2.54 µm	100 µin	Square	Solder	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	100 çin	2.54 çm	Tin	16.51 mm	0.65 in	Board to Board Cable	0.32 in	8.13 mm	5.84 mm	0.23 in	0.1 in	2.54 mm	UL94 V-0	Header Breakaway	Unshrouded	Black	Male Pin	Through Hole	14	All	Push-Pull		Phosphor Bronze	3 A							2	0.1 in	2.54 mm
Sullins Connector Solutions PEC07DAGN	2.54 µm	100 µin	Square	Solder	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	100 çin	2.54 çm	Tin	26.67 mm	1.05 in	Board to Board Cable	0.72 "	18.29 mm	5.84 mm	0.23 in	0.1 in	2.54 mm	UL94 V-0	Header Breakaway	Unshrouded	Black	Male Pin	Through Hole	14	All	Push-Pull		Phosphor Bronze	3 A							2	0.1 in	2.54 mm
Sullins Connector Solutions PEC07SFDN	2.54 µm	100 µin	Square	Solder	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	100 çin	2.54 çm	Tin	21.29 mm	0.838 in	Board to Board Cable	0.42 in	10.67 mm	8.08 mm	0.318 in	0.1 in	2.54 mm	UL94 V-0	Header Breakaway	Unshrouded	Black	Male Pin	Through Hole	7	All	Push-Pull	1	Phosphor Bronze	3 A
Sullins Connector Solutions PEC07DBDN	2.54 µm	100 µin	Square	Solder	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	100 çin	2.54 çm	Tin			Board to Board Cable	0.4 in	10.16 mm	5.84 mm	0.23 in			UL94 V-0	Header Breakaway	Unshrouded	Black	Male Pin	Right Angle Through Hole	14	All	Push-Pull		Phosphor Bronze	3 A					6.1 mm	0.24 in	2	0.1 in	2.54 mm
Sullins Connector Solutions PEC07SFAN	2.54 µm	100 µin	Square	Solder	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	100 çin	2.54 çm	Tin			Board to Board Cable	0.12 in	3.05 mm	8.08 mm	0.318 in	0.1 in	2.54 mm	UL94 V-0	Header Breakaway	Unshrouded	Black	Male Pin	Through Hole	7	All	Push-Pull	1	Phosphor Bronze	3 A			13.67 mm	0.538 in
