XZFMDK10 Series
Manufacturer: SunLED
Beta
⌘K
DISPLAY 7-SEG 0.4" SGL RED 10SMD
| Part | Power Dissipation (Max) [Max] | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Number of Characters | Current - Test | Wavelength - Peak | Common Pin | Display Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Digit/Alpha Size | Digit/Alpha Size | Package / Case | Color | Number of Characters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 75 mw | 1.85 V | 27 mcd | 1 | 10 mA | 650 nm | Common Anode | 7-Segment | 9.1 mm | 3.75 mm | 0.591 in | 15 mm | 0.148 in | 0.358 in | 10.16 mm | 0.4 in | 10-SMD No Lead | Red | |

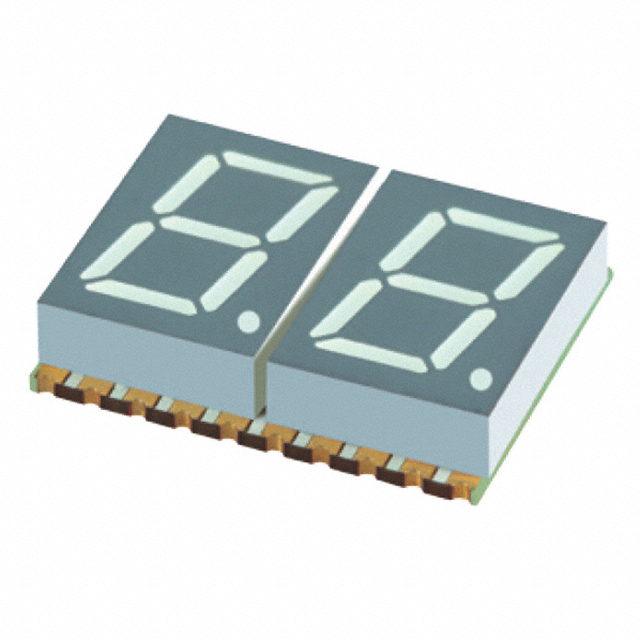

 SunLED | 75 mw | 1.85 V | 10 mcd | 10 mA | 645 nm | Common Cathode | 7-Segment | 18.5 mm | 13 mm | 0.148 in | 3.75 mm | 0.512 in | 0.728 in | 10.16 mm | 0.4 in | 20-SMD No Lead | Red | 2 | |
SunLED | 75 mw | 1.85 V | 10 mcd | 1 | 10 mA | 645 nm | Common Cathode | 7-Segment | 9.1 mm | 3.75 mm | 0.512 " | 13 mm | 0.148 in | 0.358 in | 10.16 mm | 0.4 in | 10-SMD No Lead | Red |
