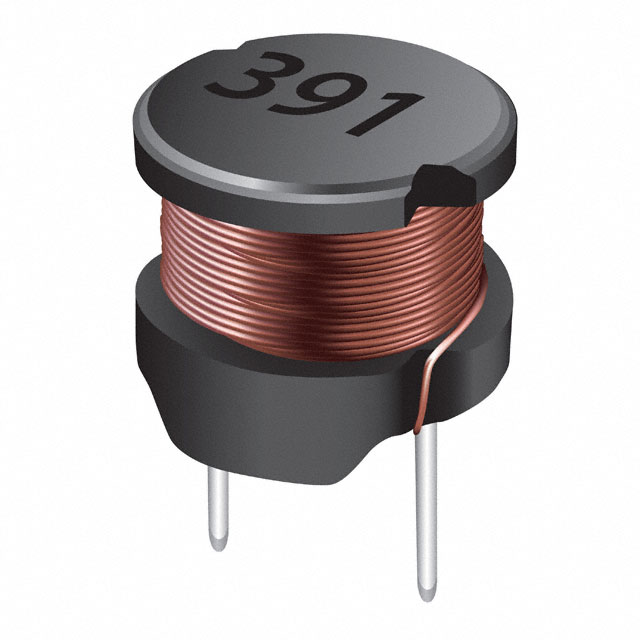

RL875 Series

Catalog

FIXED IND 680UH 330MA 1.96OHM TH

Part	Tolerance	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Mounting Type	Q @ Freq [custom]	Q @ Freq [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Inductance	Shielding	Material - Core	Package / Case	Q @ Freq	Height - Seated (Max) [Max]	DC Resistance (DCR)
Bourns Inc. RL875-681K-RC	10 %	1 kHz	1.96 Ohm	2.5 MHz	Through Hole	20	796 kHz	0.307 in	7.8 mm	0.295 in	7.5 mm	0.33 A	-40 C	105 ░C	Drum Core Wirewound	680 µH	Unshielded	Ferrite	Radial Vertical Cylinder (Open)
Bourns Inc. RL875-221K-RC	10 %	1 kHz	630 mOhm	5 MHz	Through Hole			0.307 in	7.8 mm	0.295 in	7.5 mm	570 mA	-40 C	105 ░C	Drum Core Wirewound	220 µH	Unshielded	Ferrite	Radial Vertical Cylinder (Open)	18 796 kHz
Bourns Inc. RL875-472K-RC	10 %	1 kHz	16.7 Ohm	1 MHz	Through Hole			0.307 in	7.8 mm	0.295 in	7.5 mm	120 mA	-40 C	105 ░C	Drum Core Wirewound	4.7 mH	Unshielded	Ferrite	Radial Vertical Cylinder (Open)	35 252 kHz
Bourns Inc. RL875-103K	10 %	1 kHz	33 Ohm		Through Hole			0.307 in	7.8 mm		5.5 mm	84 mA	-30 ░C	100 °C	Drum Core Wirewound	10 mH	Unshielded	Ferrite	Radial Vertical Cylinder (Open)		0.217 "
Bourns Inc. RL875-392K	10 %	1 kHz			Through Hole			0.307 in	7.8 mm		5.5 mm	150 mA	-30 ░C	100 °C	Drum Core Wirewound	3.9 mH	Unshielded	Ferrite	Radial Vertical Cylinder (Open)		0.217 "	10.6 Ohm
Bourns Inc. RL875-181K-RC	10 %	1 kHz		5.5 MHz	Through Hole			0.307 in	7.8 mm	0.295 in	7.5 mm	660 mA	-40 C	105 ░C	Drum Core Wirewound	180 µH	Unshielded	Ferrite	Radial Vertical Cylinder (Open)	18 796 kHz		570 mOhm
Bourns Inc. RL875-470K-RC	10 %	2.52 MHz		10 MHz	Through Hole			0.307 in	7.8 mm	0.295 in	7.5 mm	1.3 A	-40 C	105 ░C	Drum Core Wirewound	47 µH	Unshielded	Ferrite	Radial Vertical Cylinder (Open)	2.52 MHz 26		150 mOhm
Bourns Inc. RL875-152K-RC	10 %	1 kHz	4.7 Ohm	1.5 MHz	Through Hole			0.307 in	7.8 mm	0.295 in	7.5 mm	0.22 A	-40 C	105 ░C	Drum Core Wirewound	1.5 mH	Unshielded	Ferrite	Radial Vertical Cylinder (Open)	35 252 kHz
Bourns Inc. RL875-560K-RC	10 %	2.52 MHz	180 mOhm	10 MHz	Through Hole			0.307 in	7.8 mm	0.295 in	7.5 mm	1.2 A	-40 C	105 ░C	Drum Core Wirewound	56 µH	Unshielded	Ferrite	Radial Vertical Cylinder (Open)	2.52 MHz 26
Bourns Inc. RL875-101K	10 %	1 kHz	280 mOhm		Through Hole			0.307 in	7.8 mm		5.5 mm	0.89 A	-30 ░C	100 °C	Drum Core Wirewound	100 µH	Unshielded	Ferrite	Radial Vertical Cylinder (Open)		0.217 "
