HVGC-320 Series

Catalog

LED DRVR CC AC/DC

Part	Mounting Type	Dimming	Approval Agency	Voltage - Isolation	Features	Voltage - Output [Min]	Voltage - Output [Max]	Type	Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Topology	Efficiency	Ratings	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Termination Style
MEAN WELL USA Inc. HVGC-320-3500AB	Chassis Mount	Analog PWM	cURus EAC FCC	3750 VDC	OTP OVP SCP	114.3 V	228.6 V	Constant Current	528 VAC	300 W	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	1	AC DC Converter	93 %	IP65	UL 8750	90 °C	-40 C	180 VAC	1.05 A	Wire Leads
MEAN WELL USA Inc. HVGC-320-2800B	Chassis Mount	Analog PWM		3750 VDC	OTP OVP SCP	57 V	114.3 V	Constant Current	528 VAC	320 W	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	1	AC DC Converter	93.5 %	IP67		90 °C	-40 C	180 VAC	2.8 A	Wire Leads
MEAN WELL USA Inc. HVGC-320-3500B	Chassis Mount	Analog PWM		3750 VDC	OTP OVP SCP	45.7 V	91.4 V	Constant Current	528 VAC	320 W	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	1	AC DC Converter	93 %	IP67		90 °C	-40 C	180 VAC	3.5 A	Wire Leads
MEAN WELL USA Inc. HVGC-320-700B	Chassis Mount	Analog PWM		3750 VDC	OTP OVP SCP	214 V	428 V	Constant Current	528 VAC	320 W	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	1	AC DC Converter	93.5 %	IP67		90 °C	-40 C	180 VAC	700 mA	Wire Leads

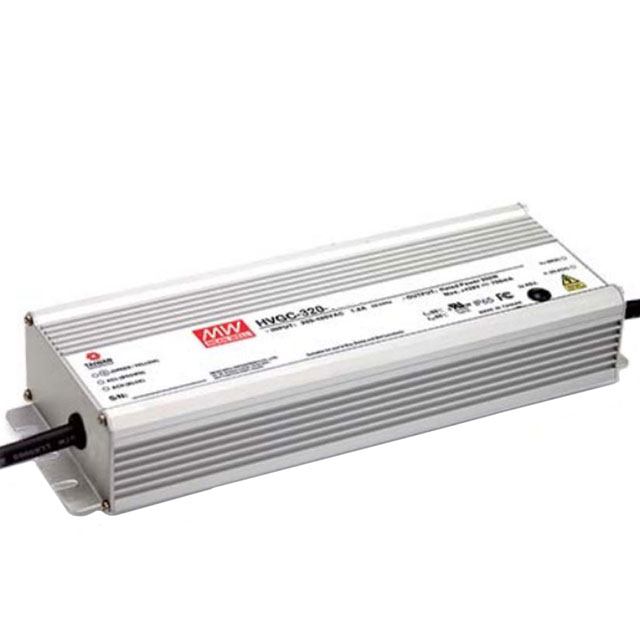

MEAN WELL USA Inc. HVGC-320-700AB	Chassis Mount	Analog PWM	cURus EAC FCC	3750 VDC	OTP OVP SCP	114.3 V	228.6 V	Constant Current	528 VAC	300 W	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	1	AC DC Converter	93 %	IP65	UL 8750	90 °C	-40 C	180 VAC	1.05 A	Wire Leads
MEAN WELL USA Inc. HVGC-320-2100AB	Chassis Mount	Analog PWM	cURus EAC FCC	3750 VDC	OTP OVP SCP	76.2 V	152.4 V	Constant Current	528 VAC	320 W	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	1	AC DC Converter	93.5 %	IP65		90 °C	-40 C	180 VAC	2.1 A	Wire Leads

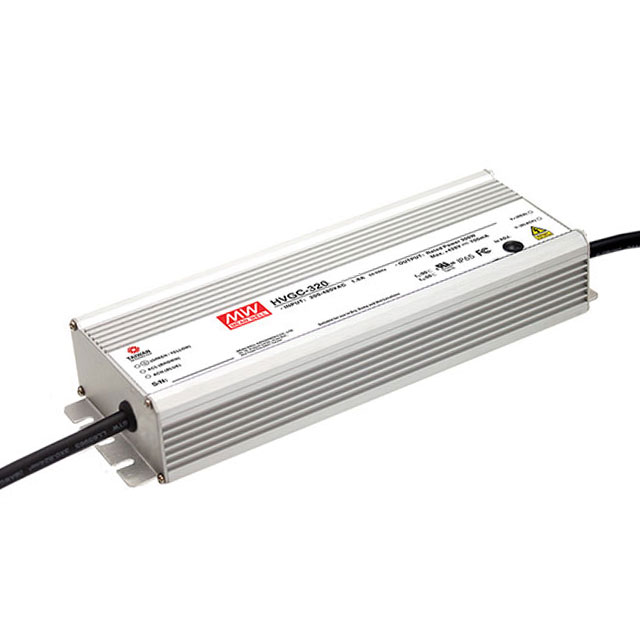

MEAN WELL USA Inc. HVGC-320-1750AB	Chassis Mount	Analog PWM	cURus EAC FCC	3750 VDC	OTP OVP SCP	91.4 V	182.8 V	Constant Current	528 VAC	320 W	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	1	AC DC Converter	93.5 %	IP65		90 °C	-40 C	180 VAC	1.75 A	Wire Leads
MEAN WELL USA Inc. HVGC-320-1750A	Chassis Mount			3750 VDC	OTP OVP SCP	91.4 V	182.8 V	Constant Current	528 VAC	320 W	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	1	AC DC Converter	93.5 %	IP65		90 °C	-40 C	180 VAC	1.75 A	Wire Leads
MEAN WELL USA Inc. HVGC-320-1400A	Chassis Mount			3750 VDC	OTP OVP SCP	114.3 V	228.6 V	Constant Current	528 VAC	320 W	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	1	AC DC Converter	93.5 %	IP65		90 °C	-40 C	180 VAC	1.4 A	Wire Leads
MEAN WELL USA Inc. HVGC-320-1750B	Chassis Mount	Analog PWM		3750 VDC	OTP OVP SCP	91.4 V	182.8 V	Constant Current	528 VAC	320 W	90 mm	3.54 in	9.26 in	1.72 in	235.2 mm	43.8 mm	1	AC DC Converter	93.5 %	IP67		90 °C	-40 C	180 VAC	1.75 A	Wire Leads
