SSP-LB24 Series

Catalog

LIGHT BAR 24" BLU 24V 120DEG 10W

Part	Voltage - Supply	Length	Length	Approval Agency	Power - Rated	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [x]	Termination Style	Illumination Color	Rated Life	Operating Temperature [Max]	Operating Temperature [Min]	Lens Type	Ingress Protection	Luminous Flux	Length [x]	Length [x]

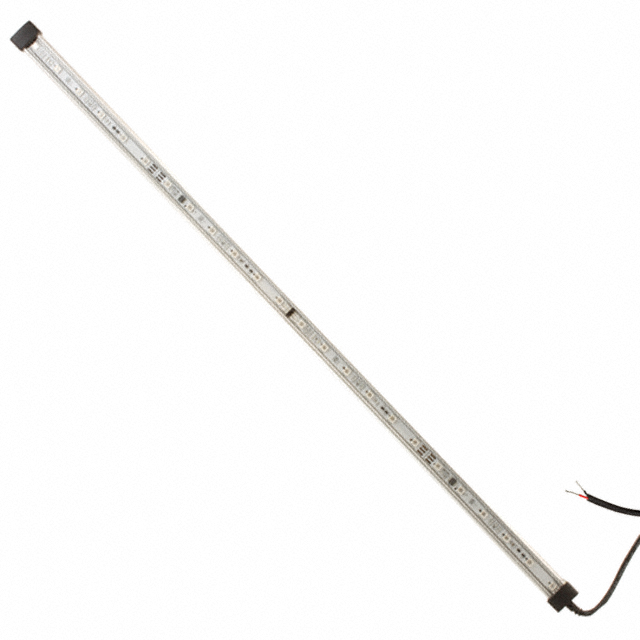

Lumex Opto/Components Inc. SSP-LB24USB24K10	24 V	24.02 in	0.61 m	CE	1.6 W	0.59 in	0.87 in	14.9 mm	22.2 mm	Cable Leads	Blue	20000 Hours	45 °C	-20 ░C	Clear Flat	IP66 - Dust Tight Water Resistant

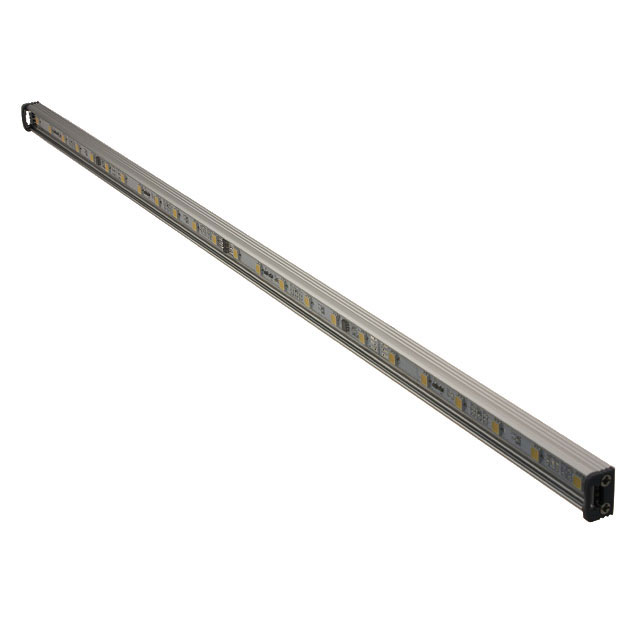

Lumex Opto/Components Inc. SSP-LB24MW024K10	24 V				10 W	0.52 in	0.77 in	13.3 mm	19.5 mm	Connector	Warm White	20000 Hours	45 °C	-20 ░C	Clear Flat		600 lm	604 mm	23.78 "

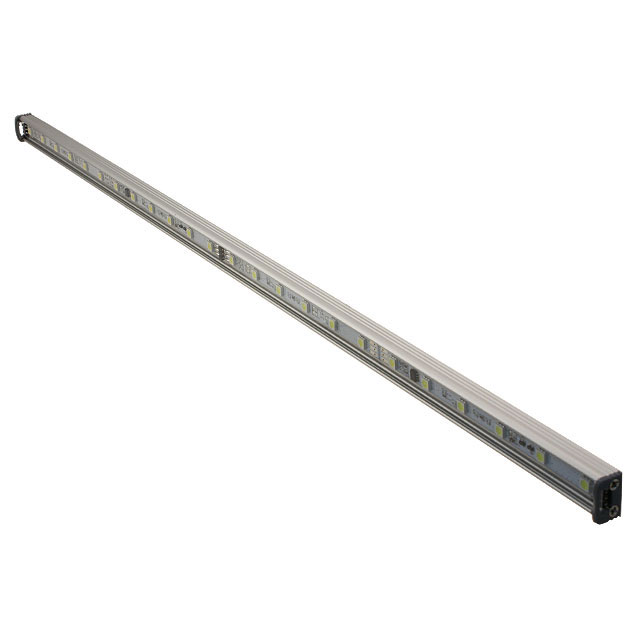

Lumex Opto/Components Inc. SSP-LB24UW024K07	24 V				6.6 W	0.59 in	0.87 in	14.9 mm	22.2 mm	Cable Leads	Cool White	20000 Hours	45 °C	-20 ░C	Clear Flat		440 lm	604 mm	23.78 "

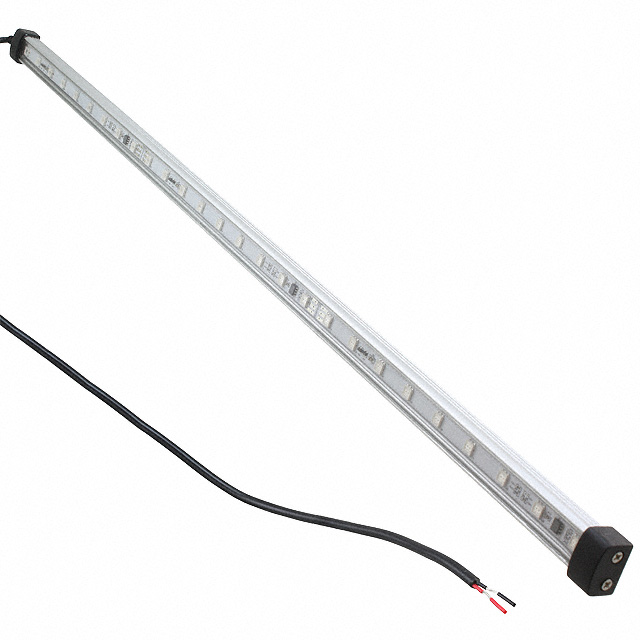

Lumex Opto/Components Inc. SSP-LB24SR24K10	24 V	24.02 in	0.61 m	CE	1.5 W	0.59 in	0.87 in	14.9 mm	22.2 mm	Cable Leads	Red	20000 Hours	45 °C	-20 ░C	Clear Flat	IP66 - Dust Tight Water Resistant
