1571220 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Actuator Material	Switch Travel	Mechanical Life	Mounting Type	Actuator Orientation	Illumination	Circuit	Ingress Protection	Contact Rating @ Voltage	Outline [y]	Outline [x]	Switch Function	Actuator Height off PCB, Vertical [z]	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Features	Actuator Type

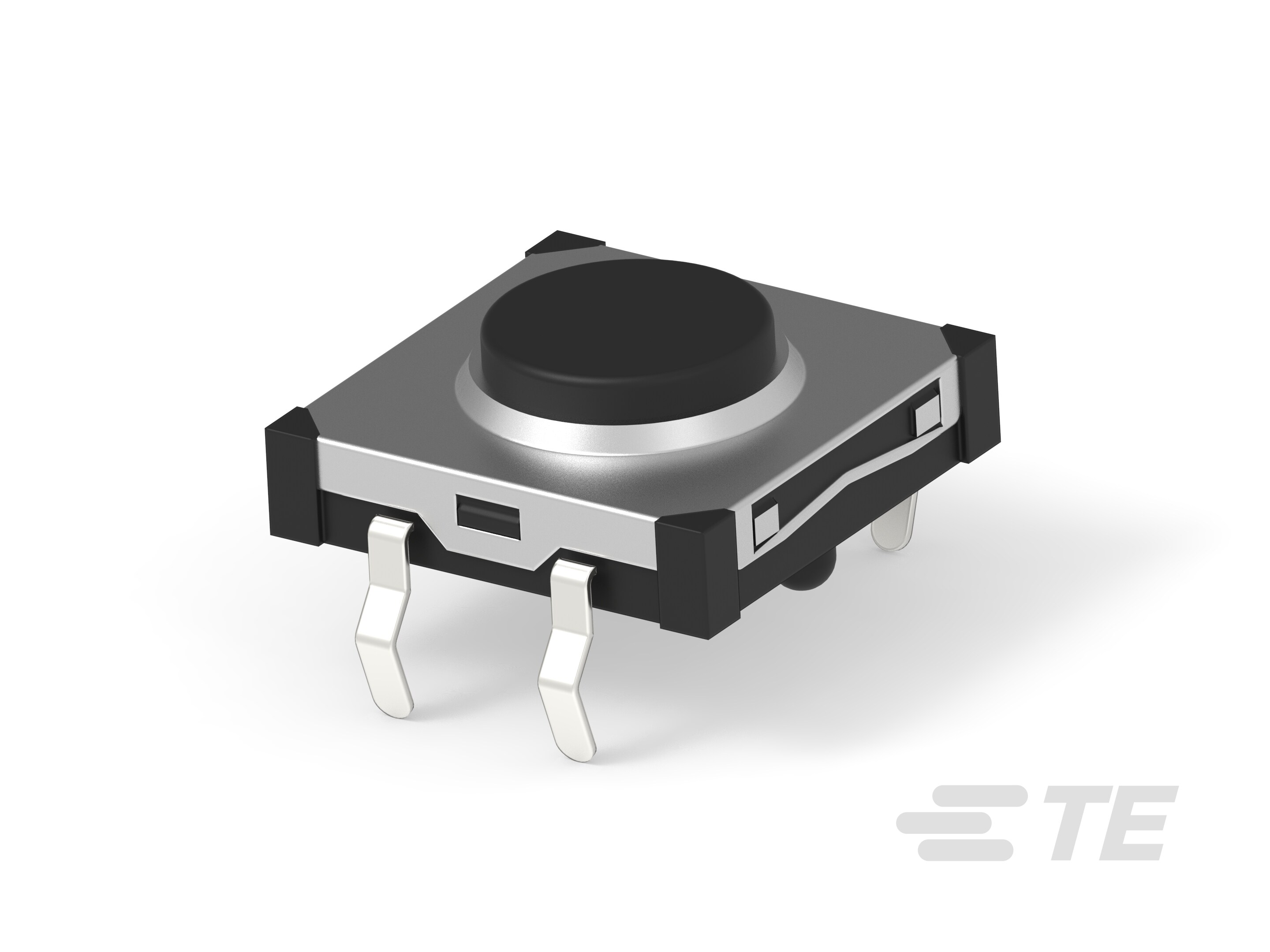

TE Connectivity AMP Connectors 1571220-2	Thermoplastic	0.35 mm	1000000 Cycles	Through Hole	Top Actuated	Non-Illuminated	SPST-NO	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	12 mm	12 mm	Off-Mom	4.3 mm	160 gf	85 °C	-35 °C	PC Pin	Board Guide Sealed - Fully	Standard
TE Connectivity AMP Connectors 1571220-1				Through Hole	Top Actuated	Non-Illuminated	SPST-NO	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	12 mm	12 mm	Off-Mom	4.3 mm	160 gf	85 °C	-35 °C	PC Pin	Sealed - Fully	Standard

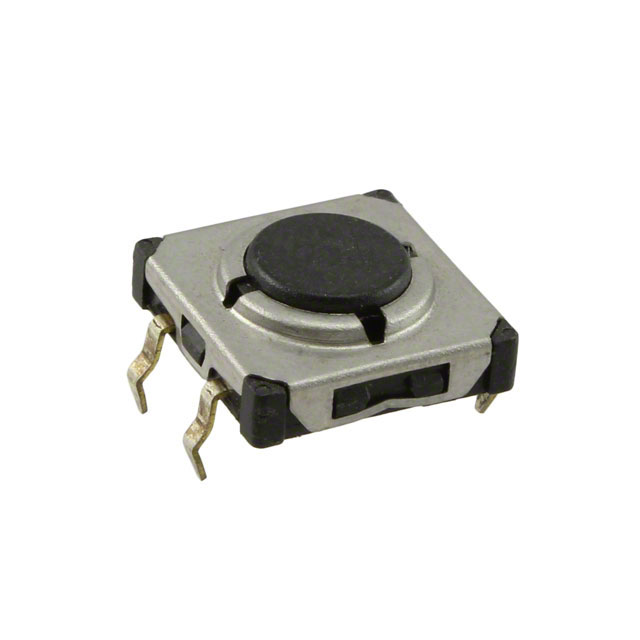

TE Connectivity AMP Connectors 1571220-1	Thermoplastic	0.35 mm	1000000 Cycles	Through Hole	Top Actuated	Non-Illuminated	SPST-NO	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	12 mm	12 mm	Off-Mom	4.3 mm	160 gf	85 °C	-35 °C	PC Pin	Sealed - Fully	Standard
