NHD-C0220 Series

Catalog

LCD MOD 40DIG 20X2 TRANSFLCT WHT

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]	Display Mode	Character Format [x]	Character Format [y]	Controller Type	Character Size [z]	Character Size [y]	Backlight	Display Type	Text Color	Display Format [x]	Display Format [y]	Background Color	Viewing Area [x]	Viewing Area [y]	Interface	Dot Size [y]	Dot Size [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Characters

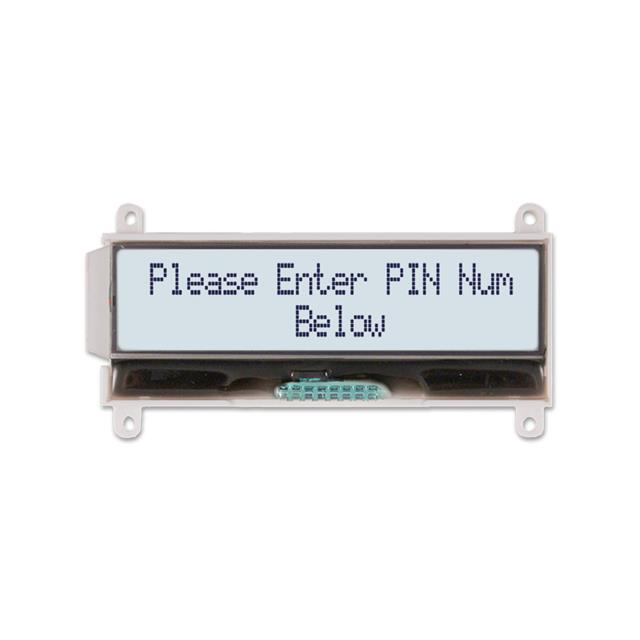

Newhaven Display Intl NHD-C0220BIZ-FSW-FBW-3V3M	2.7 V	3.5 V	27.1 mm	75.7 mm	6.8 mm	Transflective	5 Dots	8 Dots	ST7036	5.55 mm	2.45 mm	LED - White	FSTN - Film Super-Twisted Nematic	Black	20	2	White	61 mm	15.1 mm	I2C	0.65 mm	0.45 mm	-20 ░C	70 °C	40

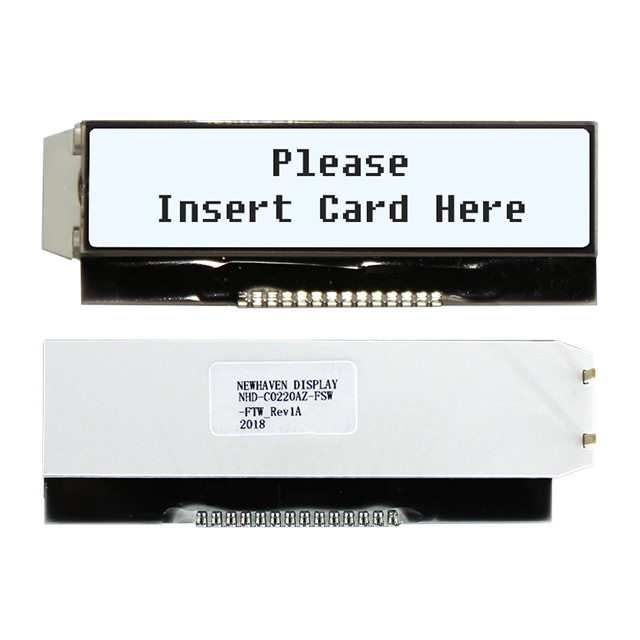

Newhaven Display Intl NHD-C0220AZ-FSW-FTW	4.5 V	5.5 V	25 mm	70.3 mm	6.1 mm	Transflective	5 Dots	8 Dots	NT-7605	5.55 mm	2.45 mm	LED - White	FSTN - Film Super-Twisted Nematic	Black	20	2	White	61 mm	15.1 mm	Parallel	0.65 mm	0.45 mm	-20 ░C	70 °C	40

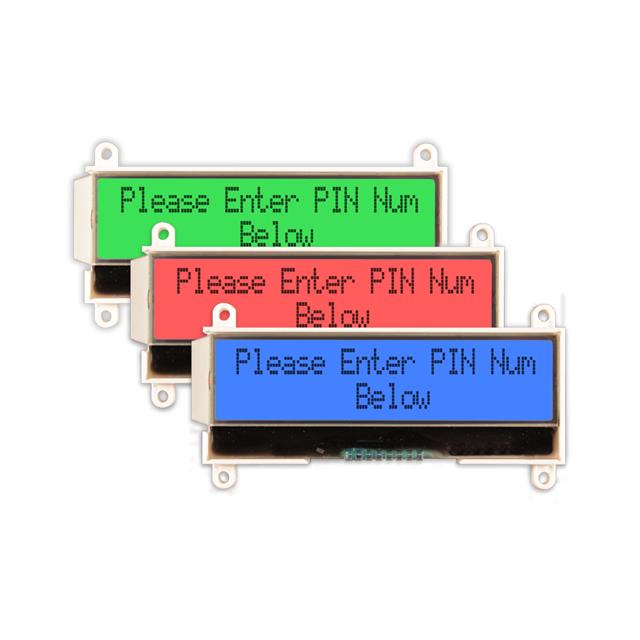

Newhaven Display Intl NHD-C0220BIZ-FS(RGB)-FBW-3VM	2.7 V	3.5 V	27.1 mm	75.7 mm	6.8 mm	Transflective	5 Dots	8 Dots	ST7036	5.55 mm	2.45 mm	LED - Red/Green/Blue	FSTN - Film Super-Twisted Nematic	Black	20	2	Blue Green Red	61 mm	15.1 mm	I2C	0.65 mm	0.45 mm	-20 ░C	70 °C	40

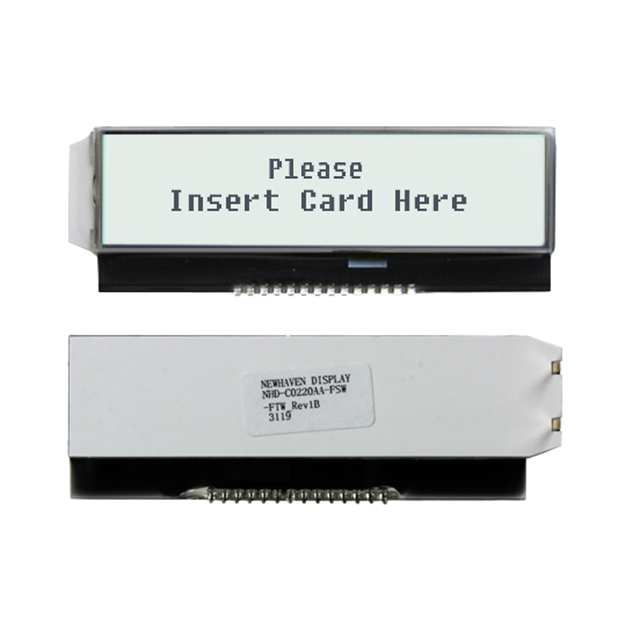

Newhaven Display Intl NHD-C0220AA-FSW-FTW	3.2 V	3.4 V	25 mm	70.3 mm	6.1 mm	Transflective	5 Dots	8 Dots	NT-7605	5.55 mm	2.45 mm	LED - White	FSTN - Film Super-Twisted Nematic	Black	20	2	White	61 mm	15.1 mm	Parallel	0.65 mm	0.45 mm	-20 ░C	70 °C	40

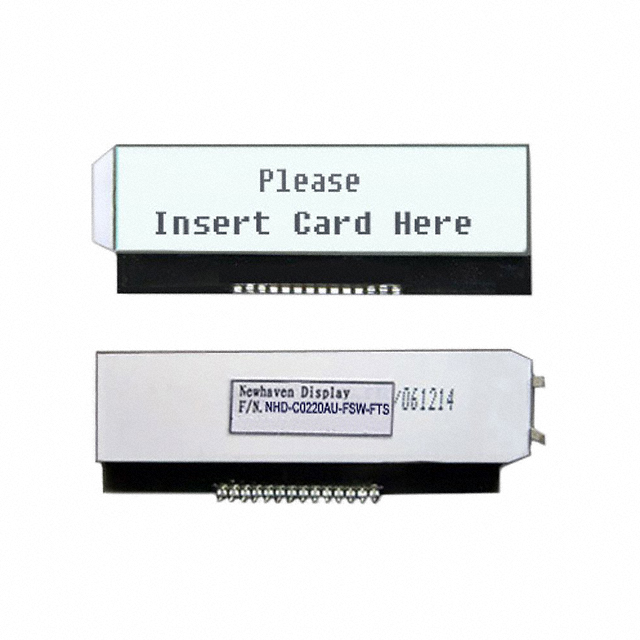

Newhaven Display Intl NHD-C0220AU-FSW-FTS	3.2 V	3.4 V	25 mm	69.5 mm	5.8 mm	Transflective	5 Dots	8 Dots		5.55 mm	2.45 mm	LED - White	FSTN - Film Super-Twisted Nematic	Gray	20	2	White	61 mm	15.1 mm	Parallel	0.65 mm	0.45 mm	0 °C	50 °C	40
