4218 Series

Catalog

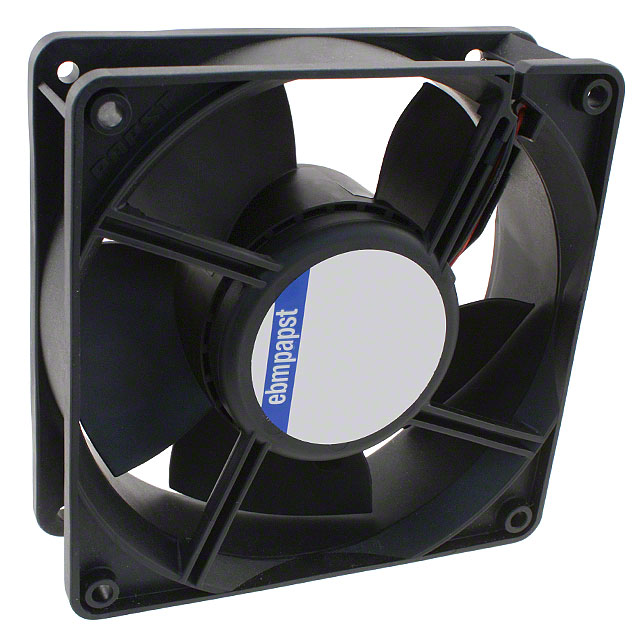

FAN AXIAL 119X38MM 48VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Weight	Weight	Voltage - Rated	Approval Agency	Width [y]	Noise	Fan Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Bearing Type	Termination	RPM	Operating Temperature
ebm-papst Inc. 4218/2	62500 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced	2.72 m³/min	97 CFM	36 VDC	56 VDC	Square	119 mm	119 mm	4.3 W	0.639 lb	289.85 g	48 VDC	CE CSA UL VDE	38 mm	45 dB(A)	Tubeaxial	3 Wire Leads	-4 °F	167 °F	Speed Sensor (Tach)	Ball
ebm-papst Inc. 4218H	40 °C 60000 Hrs	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced	3.03 m³/min	108.3 CFM	36 VDC	56 VDC	Square	119 mm	119 mm	5.6 W	0.639 lb	289.85 g	48 VDC	CE CSA UL VDE	38 mm	49 dB	Tubeaxial		-20 ░C	65 °C		Ball	2	3400 RPM	(-20 ~ 65°C)
