EC08 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CABLE MARKERS PRE-MARKED PUSH ON WHITE BOX

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Cable Diameter [Min]	Cable Diameter [Max]	Cable Diameter [Min]	Cable Diameter [Max]	Size	Size	Type	Legend	Material	Legend
TE Connectivity AMP Connectors EC0859-000	-45 °C	70 °C	White	0.134 in	5.7 mm	3.4 mm	0.224 in	0.18 in	4.5 mm	Wire Marker Push On	Minus (-)	Poly-Vinyl Chloride (PVC)
TE Connectivity AMP Connectors EC0829-000	-45 °C	70 °C	White	0.134 in	5.7 mm	3.4 mm	0.224 in	0.18 in	4.5 mm	Wire Marker Push On		Poly-Vinyl Chloride (PVC)	7
TE Connectivity AMP Connectors EC0850-000	-45 °C	70 °C	White	0.134 in	5.7 mm	3.4 mm	0.224 in	0.18 in	4.5 mm	Wire Marker Push On	S	Poly-Vinyl Chloride (PVC)
TE Connectivity AMP Connectors EC0844-000	-45 °C	70 °C	White	0.134 in	5.7 mm	3.4 mm	0.224 in	0.18 in	4.5 mm	Wire Marker Push On	M	Poly-Vinyl Chloride (PVC)
TE Connectivity AMP Connectors EC0890-000	-45 °C	70 °C	Yellow	0.134 in	5.7 mm	3.4 mm	0.224 in	0.18 in	4.5 mm	Wire Marker Push On	H	Poly-Vinyl Chloride (PVC)
TE Connectivity AMP Connectors EC0854-000	-45 °C	70 °C	White	0.134 in	5.7 mm	3.4 mm	0.224 in	0.18 in	4.5 mm	Wire Marker Push On	W	Poly-Vinyl Chloride (PVC)
TE Connectivity AMP Connectors EC0843-000	-45 °C	70 °C	White	0.134 in	5.7 mm	3.4 mm	0.224 in	0.18 in	4.5 mm	Wire Marker Push On	L	Poly-Vinyl Chloride (PVC)
TE Connectivity AMP Connectors EC0851-000	-45 °C	70 °C	White	0.134 in	5.7 mm	3.4 mm	0.224 in	0.18 in	4.5 mm	Wire Marker Push On	T	Poly-Vinyl Chloride (PVC)
TE Connectivity AMP Connectors EC0899-000	-45 °C	70 °C	Yellow	0.134 in	5.7 mm	3.4 mm	0.224 in	0.18 in	4.5 mm	Wire Marker Push On	Q	Poly-Vinyl Chloride (PVC)

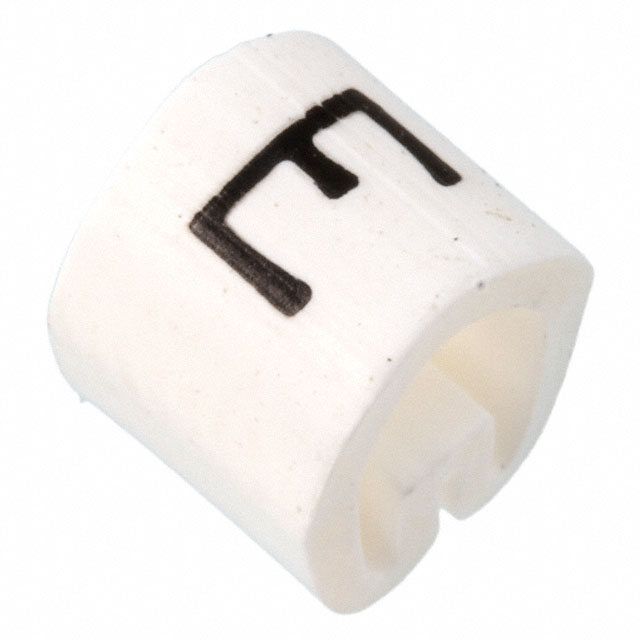

TE Connectivity AMP Connectors EC0836-000	-45 °C	70 °C	White	0.134 in	5.7 mm	3.4 mm	0.224 in	0.18 in	4.5 mm	Wire Marker Push On		Poly-Vinyl Chloride (PVC)
