TLV733P-Q1 Series

Automotive 300-mA, low-IQ, low-dropout voltage regulator with enable

Catalog

Automotive 300-mA, low-IQ, low-dropout voltage regulator with enable

Part	Control Features	Qualification	Package / Case	Number of Regulators	Output Configuration	Protection Features	Voltage Dropout (Max) [Max]	Voltage - Input (Max) [Max]	Output Type	Current - Quiescent (Iq)	Grade	Mounting Type	Current - Output	PSRR [Min]	PSRR [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Supplier Device Package
Texas Instruments TLV73318PQDBVRQ1	Enable	AEC-Q100	SC-74A SOT-753	1	Positive	Over Current Over Temperature UVLO	0.3 V	5.5 V	1.81 mOhm	78 µA	Automotive	Surface Mount	300 mA	28 dB	68 dB	-40 °C	125 °C	1.8 V	SOT-23-5
Texas Instruments TLV73318PQDRVRQ1	Enable	AEC-Q100		1	Positive		0.3 V	5.5 V	1.81 mOhm	62 µA	Automotive	Surface Mount	300 mA	28 dB	68 dB	-40 °C	125 °C	1.8 V	6-WSON (2x2)

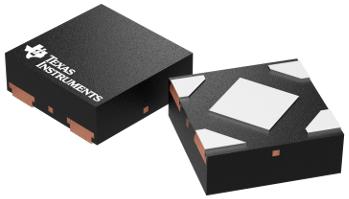

Texas Instruments TLV73312PDQNT	Enable		4-XDFN Exposed Pad	1	Positive	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	0.45 V	5.5 V	1.81 mOhm	60 µA		Surface Mount	300 mA	28 dB	68 dB	-40 °C	125 ¯C	1.2 V	4-X2SON (1x1)
Texas Instruments TLV73315PDQNR	Enable		4-XDFN Exposed Pad	1	Positive	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	0.4 V	5.5 V	1.81 mOhm	60 µA		Surface Mount	300 mA	28 dB	68 dB	-40 °C	125 ¯C	1.5 V	4-X2SON (1x1)
Texas Instruments TLV73311PQDBVRQ1	Enable	AEC-Q100	SC-74A SOT-753	1	Positive	Over Current Over Temperature UVLO	0.51 V	5.5 V	1.81 mOhm	78 µA	Automotive	Surface Mount	300 mA			-40 °C	125 °C	1.1 V	SOT-23-5
Texas Instruments TLV73312PQDRVRQ1	Enable	AEC-Q100		1	Positive		0.45 V	5.5 V	1.81 mOhm	62 µA	Automotive	Surface Mount	300 mA	28 dB	68 dB	-40 °C	125 °C	1.2 V	6-WSON (2x2)
Texas Instruments TLV73318PDBVT	Enable		SC-74A SOT-753	1	Positive	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	0.3 V	5.5 V	1.81 mOhm	60 µA		Surface Mount	300 mA	28 dB	68 dB	-40 °C	125 ¯C	1.8 V	SOT-23-5
Texas Instruments TLV73318PDQNR3	Enable		4-XDFN Exposed Pad	1	Positive	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	0.3 V	5.5 V	1.81 mOhm	60 µA		Surface Mount	300 mA	28 dB	68 dB	-40 °C	125 ¯C	1.8 V	4-X2SON (1x1)
Texas Instruments TLV73315PDQNT	Enable		4-XDFN Exposed Pad	1	Positive	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	0.4 V	5.5 V	1.81 mOhm	60 µA		Surface Mount	300 mA	28 dB	68 dB	-40 °C	125 ¯C	1.5 V	4-X2SON (1x1)
Texas Instruments TLV73312PDQNR	Enable		4-XDFN Exposed Pad	1	Positive	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	0.45 V	5.5 V	1.81 mOhm	60 µA		Surface Mount	300 mA	28 dB	68 dB	-40 °C	125 ¯C	1.2 V	4-X2SON (1x1)

Catalog

Automotive 300-mA, low-IQ, low-dropout voltage regulator with enable

Key Features

• AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to 125°C, TADevice junction temperature range: –40°C to 150°CInput voltage range: 1.4 V to 5.5 VStable operation with or without capacitorsFoldback overcurrent protectionPackage:2.0-mm × 2.0-mm WSON-62.9-mm × 1.6-mm SOT-23Very low dropout: 125 mV at 300 mA (3.3 VOUT)Accuracy: 1% typical, 1.4% maximumLow IQ: 34 µAAvailable in fixed-output voltages: 1.0 V to 3.3 VHigh PSRR: 50 dB at 1 kHzActive output dischargeAEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to 125°C, TADevice junction temperature range: –40°C to 150°CInput voltage range: 1.4 V to 5.5 VStable operation with or without capacitorsFoldback overcurrent protectionPackage:2.0-mm × 2.0-mm WSON-62.9-mm × 1.6-mm SOT-23Very low dropout: 125 mV at 300 mA (3.3 VOUT)Accuracy: 1% typical, 1.4% maximumLow IQ: 34 µAAvailable in fixed-output voltages: 1.0 V to 3.3 VHigh PSRR: 50 dB at 1 kHzActive output discharge

Description

The TLV733P-Q1 family of low dropout (LDO) linear regulators are ultra-small, low quiescent current LDOs that can source 300 mA with good line and load transient performance. These devices provide a typical accuracy of 1%. The TLV733P-Q1 family is designed with a modern capacitor-free architecture to ensure stability without an input or output capacitor. The removal of the output capacitor allows for a very small solution size, and can eliminate inrush current at startup. Furthermore, the TLV733P-Q1 family is also stable with ceramic output capacitors if an output capacitor is necessary. The TLV733P-Q1 family also provides foldback current control during device power-up and enabling if an output capacitor is used. This functionality is especially important in battery-operated devices. The TLV733P-Q1 family provides an active pulldown circuit to quickly discharge output loads when disabled. The TLV733P-Q1 family is available in the 6-pin DRV (WSON) and 5-pin DBV (SOT-23) packages. The TLV733P-Q1 family of low dropout (LDO) linear regulators are ultra-small, low quiescent current LDOs that can source 300 mA with good line and load transient performance. These devices provide a typical accuracy of 1%. The TLV733P-Q1 family is designed with a modern capacitor-free architecture to ensure stability without an input or output capacitor. The removal of the output capacitor allows for a very small solution size, and can eliminate inrush current at startup. Furthermore, the TLV733P-Q1 family is also stable with ceramic output capacitors if an output capacitor is necessary. The TLV733P-Q1 family also provides foldback current control during device power-up and enabling if an output capacitor is used. This functionality is especially important in battery-operated devices. The TLV733P-Q1 family provides an active pulldown circuit to quickly discharge output loads when disabled. The TLV733P-Q1 family is available in the 6-pin DRV (WSON) and 5-pin DBV (SOT-23) packages.
