ATH010 Series

Catalog

DC DC CONVERTER 0.8-3.6V 36W

Part	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Power (Watts)	Type	Package / Case	Applications	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Features	Current - Output (Max) [Max]	Number of Outputs

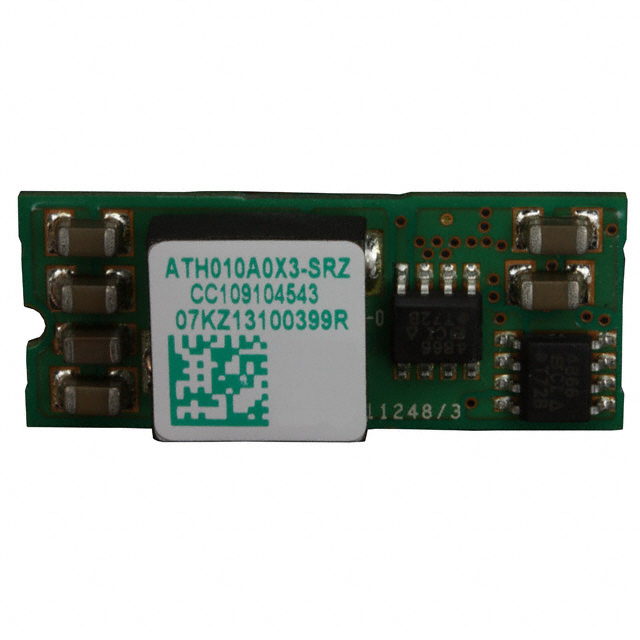

OmniOn Power™ ATH010A0X3-SRZ	Active Low Enable	85 °C	-40 C	3.6 V	0.8 V	36 W	Non-Isolated PoL Module	7-SMD Module	ITE (Commercial)	95 %	33 mm	13.5 mm	0.53 in	1.3 in	0.33 in	8.3 mm	5.5 V	2.4 V	Surface Mount	OCP OTP Remote On/Off UVLO	10 A	1
OmniOn Power™ ATH010A0X3-SRZ	Active Low Enable	85 °C	-40 C	3.6 V	0.8 V	36 W	Non-Isolated PoL Module	7-SMD Module	ITE (Commercial)	95 %	33 mm	13.5 mm	0.53 in	1.3 in	0.33 in	8.3 mm	5.5 V	2.4 V	Surface Mount	OCP OTP Remote On/Off UVLO	10 A	1
