PM20B03VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

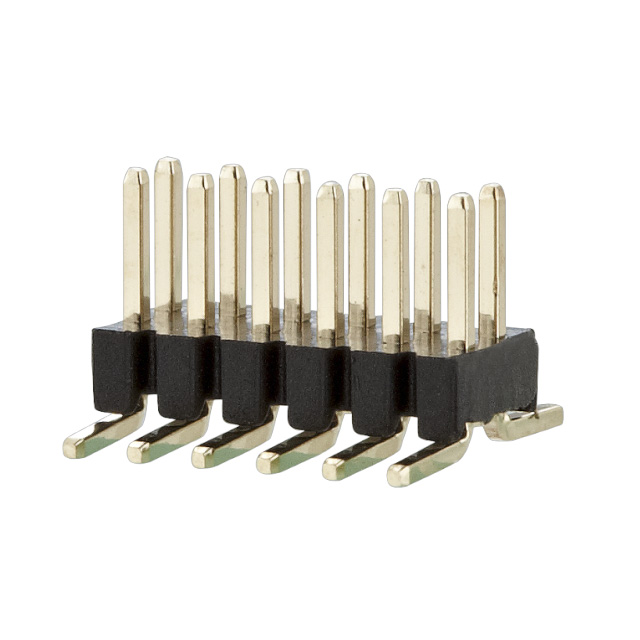

PIN HEADER, SMT, DUAL ROW, 1.27
| Part | Pitch - Mating | Pitch - Mating | Fastening Type | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Contact Type | Number of Positions | Mounting Type | Termination | Contact Finish - Mating | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Insulation Height [custom] | Insulation Height [custom] | Shrouding | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Insulation Material | Insulation Color | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 1.27 mm | 0.05 in | Push-Pull | All | 2.79 mm | 0.11 in | Male Pin | 6 | Surface Mount | Solder | Gold | Square | 0.05 in | 1.27 mm | Flash | 0.591 in | 15 mm | Unshrouded | Header | -40 C | 105 ░C | Copper Alloy | Polyethylene | Black | 2 |
