MAX2769 Series

Catalog

RF RECEIVER 1575.42MHZ 28TQFN

Part	Package / Case	Supplier Device Package	Data Interface	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Current - Receiving	Frequency	Antenna Connector	Mounting Type	Modulation or Protocol	Type	For Use With/Related Products	Supplied Contents
Analog Devices Inc./Maxim Integrated MAX2769ETI+T	28-WFQFN Exposed Pad	28-TQFN (5x5)	PCB Surface Mount	85 °C	-40 °C	2.7 V	3.3 V	GPS	18 mA	1575.42 MHz	PCB Surface Mount	Surface Mount
Analog Devices Inc./Maxim Integrated MAX2769BETI/V+T	28-WFQFN Exposed Pad	28-TQFN (5x5)	PCB Surface Mount	85 °C	-40 °C	2.7 V	3.3 V	GPS	25 mA	1575.42 MHz	PCB Surface Mount	Surface Mount	GPS

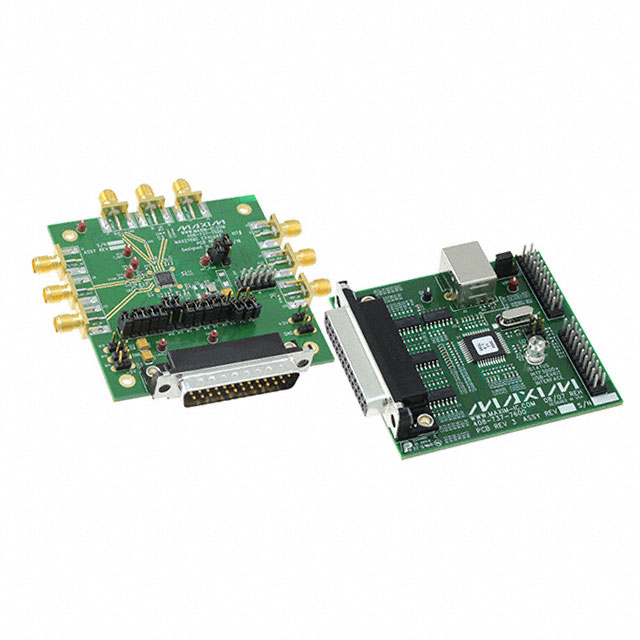

Analog Devices Inc./Maxim Integrated MAX2769CEVKIT#										1.575 GHz				GPS	MAX2769C	Board(s)

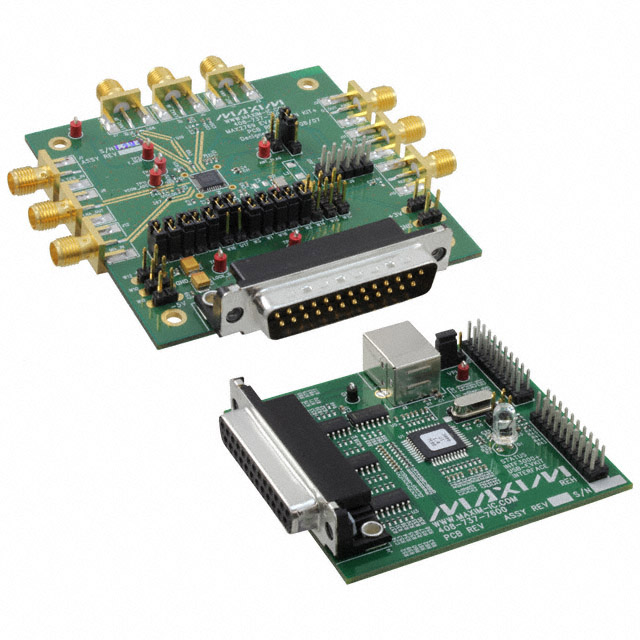

Analog Devices Inc./Maxim Integrated MAX2769EVKIT+														GNSS (Galileo GLONASS GPS)	MAX2769	Board(s)
Analog Devices Inc./Maxim Integrated MAX2769BEVKIT#										1.575 GHz				GPS Receiver	MAX2769B	Board(s)
Analog Devices Inc./Maxim Integrated MAX2769ETI+	28-WFQFN Exposed Pad	28-TQFN (5x5)	PCB Surface Mount	85 °C	-40 °C	2.7 V	3.3 V	GPS	18 mA	1575.42 MHz	PCB Surface Mount	Surface Mount
Analog Devices Inc./Maxim Integrated MAX2769CETI+	28-WFQFN Exposed Pad	28-TQFN (5x5)	SPI	85 °C	-40 °C	2.7 V	3.3 V	General Purpose	18 mA	1.575 GHz		Surface Mount	GLONASS GPS
