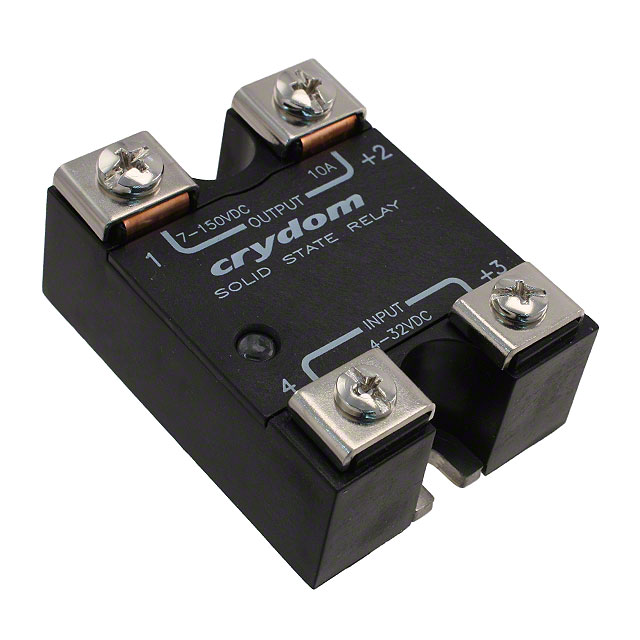

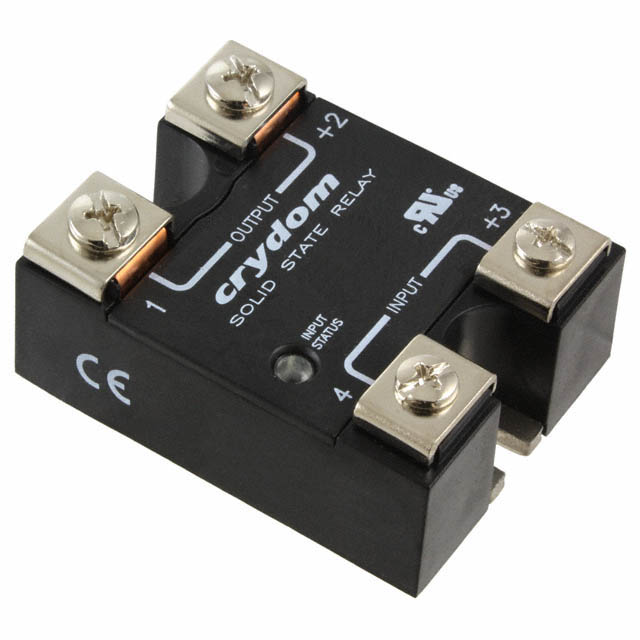

DC200D Series

Catalog

SSR RELAY SPST-NO 20A 1-150V

Part	Package / Case	Output Type	Termination Style	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Approval Agency	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	On-State Resistance (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Sensata-Crydom DC200D20	Hockey Puck	DC	Screw Terminal	32 VDC	4 V	20 A	CE cURus	150 V	1 V	Chassis Mount	39 mOhms	-40 C	100 °C
Sensata-Crydom DC200D20CH	Hockey Puck	DC	Screw Terminal	32 VDC	4 V	20 A	CE cURus	200 V	1 V	Chassis Mount	39 mOhms	-40 C	100 °C
Sensata-Crydom DC200D10	Hockey Puck	DC	Screw Terminal	32 VDC	4 V	10 A	CE cURus	150 V	1 V	Chassis Mount	40 mOhms	-40 C	100 °C
Sensata-Crydom DC200D40C	Hockey Puck	DC	Screw Terminal	32 VDC	4 V	40 A	CE cURus	150 V	1 V	Chassis Mount	16 mOhms	-40 C	100 °C
Sensata-Crydom DC200D10C	Hockey Puck	DC	Screw Terminal	32 VDC	4 V	10 A	CE cURus	150 V	1 V	Chassis Mount	40 mOhms	-40 C	100 °C
Sensata-Crydom DC200D60	Hockey Puck	DC	Screw Terminal	32 VDC	4 V	60 A	CE cURus	150 V	1 V	Chassis Mount	11 mOhms	-40 C	100 °C
Sensata-Crydom DC200D60C	Hockey Puck	DC	Screw Terminal	32 VDC	4 V	60 A	CE cURus	150 V	1 V	Chassis Mount	11 mOhms	-40 C	100 °C
