G5Q-1-H Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 12V
| Part | Relay Type | Termination Style | Must Operate Voltage | Coil Insulation | Release Time | Mounting Type | Load - Max Switching | Coil Type | Coil Resistance | Operate Time | Contact Form | Must Release Voltage | Approval Agency | Seal Rating | Contact Rating (Current) | Switching Voltage | Contact Material | Coil Voltage | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

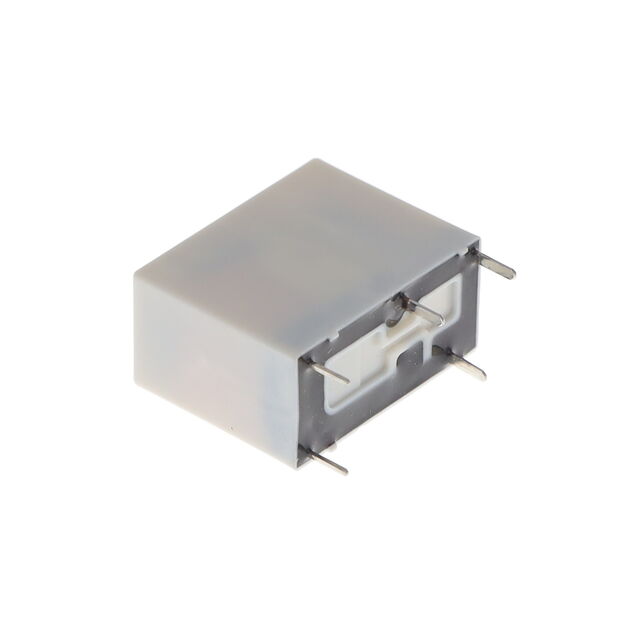

 Omron Electronics Inc-EMC Div | General Purpose | PC Pin | 9 VDC | Class F | 5 ms | Through Hole | 300 W 2770 VA | Non Latching | 360 Ohms | 10 ms | SPDT (1 Form C) | 0.6 VDC | CQC CSA UR VDE | Sealed - Flux Protection | 10 A | 30 VDC 277 VAC | Cadmium Free Silver Alloy | 12 VDC | 33.3 mA | -40 °C | 105 ░C |

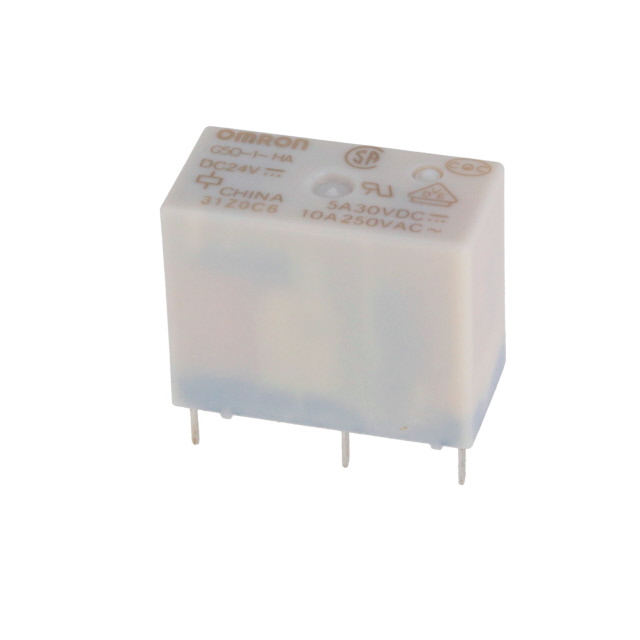

 Omron Electronics Inc-EMC Div | General Purpose | PC Pin | 18 VDC | Class F | 5 ms | Through Hole | 300 W 2770 VA | Non Latching | 1440 Ohms | 10 ms | SPDT (1 Form C) | 1.2 VDC | CQC CSA UR VDE | Sealed - Flux Protection | 10 A | 30 VDC 277 VAC | Cadmium Free Silver Alloy | 24 VDC | 16.7 mA | -40 °C | 105 ░C |

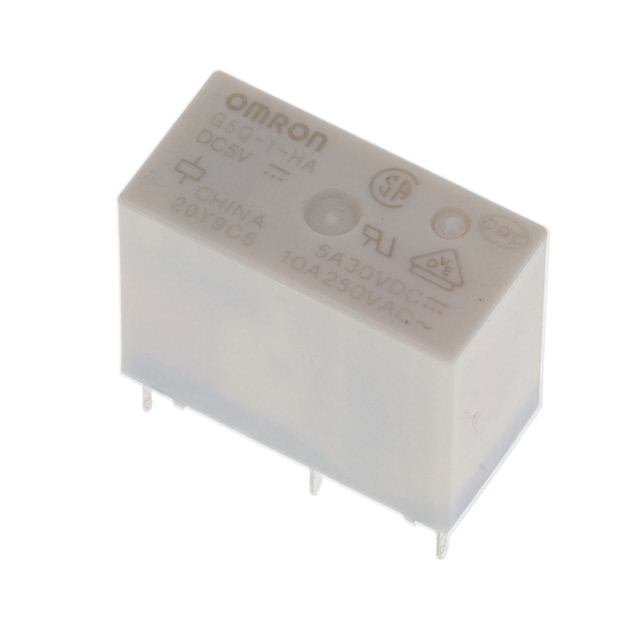

 Omron Electronics Inc-EMC Div | General Purpose | PC Pin | 3.75 VDC | Class F | 5 ms | Through Hole | 300 W 2770 VA | Non Latching | 63 Ohms | 10 ms | SPDT (1 Form C) | 0.25 VDC | CQC CSA UR VDE | Sealed - Flux Protection | 10 A | 30 VDC 277 VAC | Cadmium Free Silver Alloy | 5 VDC | 80 mA | -40 °C | 105 ░C |
