LM95235-Q1 Series

Automotive Grade, ±2°C Remote and Local Temperature Sensor with TruTherm Technology and SMBus

Catalog

Automotive Grade, ±2°C Remote and Local Temperature Sensor with TruTherm Technology and SMBus

Part	Accuracy - Highest (Lowest)	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Resolution	Package / Case	Package / Case [custom]	Package / Case	Sensing Temperature - Remote [Min]	Sensing Temperature - Remote [Max]	Features	Test Condition	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Mounting Type	Test Condition [Min]	Test Condition [Max]	Test Condition [Min]	Test Condition [Max]	Utilized IC / Part	Sensor Type	Supplied Contents	Sensitivity	Interface	Sensing Temperature - Remote [custom]	Grade	Qualification
Texas Instruments LM95235DIMMX	2 °C 6 °C	125 °C	-40 °C	90 °C	-40 °C	10 b	8-MSOP 8-TSSOP	0.118 in	3 mm	-40 °C	90 °C	One-Shot Output Switch Programmable Limit Shutdown Mode Standby Mode	25°C ~ 100°C (-40°C ~ 25°C)	3.6 V	3 V	SMBus	Surface Mount
Texas Instruments LM95235EIMM	2 °C 6 °C	125 °C	-40 °C	90 °C	-40 °C		8-MSOP 8-TSSOP	0.118 in	3 mm	-40 °C	90 °C	One-Shot Output Switch Programmable Limit Shutdown Mode Standby Mode	25°C ~ 100°C (-40°C ~ 25°C)	3.6 V	3 V	SMBus	Surface Mount
Texas Instruments LM95235EIMM/NOPB	2 °C 6 °C	125 °C	-40 °C	90 °C	-40 °C		8-MSOP 8-TSSOP	0.118 in	3 mm	-40 °C	90 °C	One-Shot Output Switch Programmable Limit Shutdown Mode Standby Mode	25°C ~ 100°C (-40°C ~ 25°C)	3.6 V	3 V	SMBus	Surface Mount
Texas Instruments LM95235DIMMX/NOPB	2 °C 6 °C	125 °C	-40 °C	90 °C	-40 °C	10 b	8-MSOP 8-TSSOP	0.118 in	3 mm	-40 °C	90 °C	One-Shot Output Switch Programmable Limit Shutdown Mode Standby Mode		3.6 V	3 V	SMBus	Surface Mount	-40 °C	125 °C	-25 °C	100 °C
Texas Instruments LM95235EIMMX	2 °C 6 °C	125 °C	-40 °C	90 °C	-40 °C		8-MSOP 8-TSSOP	0.118 in	3 mm	-40 °C	90 °C	One-Shot Output Switch Programmable Limit Shutdown Mode Standby Mode	25°C ~ 100°C (-40°C ~ 25°C)	3.6 V	3 V	SMBus	Surface Mount

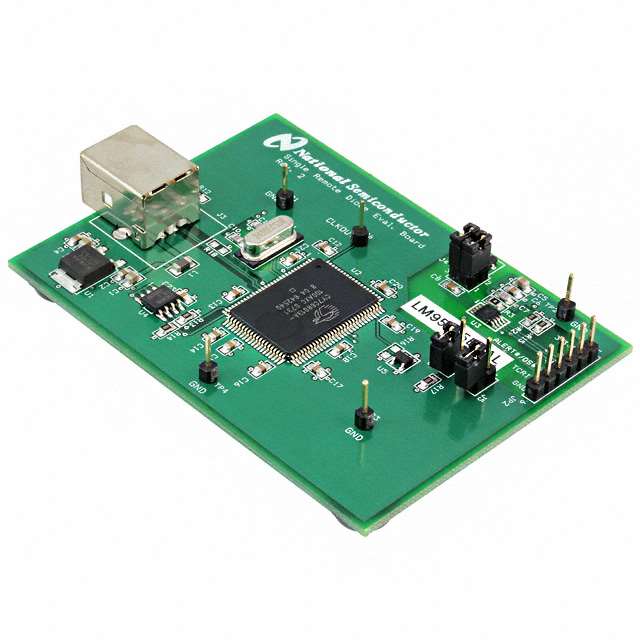

Texas Instruments LM95235EVAL/NOPB														3.6 V	3 V							LM95235	Temperature	Board(s)	1 °C	SMBus
Texas Instruments LM95235CIMM	2 °C	125 °C	-40 °C	90 °C	0 °C		8-MSOP 8-TSSOP	0.118 in	3 mm			One-Shot Output Switch Programmable Limit Shutdown Mode Standby Mode		3.6 V	3 V	SMBus	Surface Mount										0 °C 90 °C
Texas Instruments LM95235QEIMMX/NOPB	2 °C 6 °C	125 °C	-40 °C	85 °C	-40 °C		8-MSOP 8-TSSOP	0.118 in	3 mm	-40 °C	85 °C	One-Shot Output Switch Programmable Limit Shutdown Mode Standby Mode	25°C ~ 100°C (-40°C ~ 25°C)	3.6 V	3 V	SMBus	Surface Mount											Automotive	AEC-Q100
Texas Instruments LM95235CIMMX	2 °C	125 °C	-40 °C	90 °C	0 °C		8-MSOP 8-TSSOP	0.118 in	3 mm			One-Shot Output Switch Programmable Limit Shutdown Mode Standby Mode		3.6 V	3 V	SMBus	Surface Mount										0 °C 90 °C
Texas Instruments LM95235EIMMX/NOPB	2 °C 6 °C	125 °C	-40 °C	90 °C	-40 °C		8-MSOP 8-TSSOP	0.118 in	3 mm	-40 °C	90 °C	One-Shot Output Switch Programmable Limit Shutdown Mode Standby Mode	25°C ~ 100°C (-40°C ~ 25°C)	3.6 V	3 V	SMBus	Surface Mount

Catalog

Automotive Grade, ±2°C Remote and Local Temperature Sensor with TruTherm Technology and SMBus

Key Features

• Remote and Local Temperature ChannelsTruTherm BJT Beta Compensation TechnologyLM95235Q is AEC-Q100 Grade 3 Compliant and is Manufactured on an Automotive Grade FlowDiode Model Selection Bit - MMBT3904 or 65/90-nm Processor DiodesTwo Formats: -128°C to 127.875°C and 0°C to 255.875°CDigital Filter for Remote ChannelProgrammable TCRIT and OS ThresholdsProgrammable Shared Hysteresis RegisterDiode Fault DetectionMask, Offset, and Status RegistersSMBus 2.0 Compatible Interface, Supports TIMEOUTProgrammable Conversion Rate for Best Power ConsumptionThree-Level Address PinStandby Mode One-Shot Conversion ControlPin-for-Pin Compatible With the LM86 and LM898-Pin VSSOP PackageKey SpecificationsSupply Voltage 3.0 to 3.6 VSupply Current, Conv. Rate = 1 Hz 350 µA (typ)Remote Diode Temperature AccuracyTA= 25°C to 85°C; TD= 60°C to 100°C, ±0.75 °C (max)TA= 25°C to 90°C; TD= 40°C to 125°C, ±1.5 °C (max)Local Temperature AccuracyTA= 25°C to 100°C, ±2.0 °C (max)Conversion Rate, Both Channels 16 to 0.4 HzAll trademarks are the property of their respective owners.Remote and Local Temperature ChannelsTruTherm BJT Beta Compensation TechnologyLM95235Q is AEC-Q100 Grade 3 Compliant and is Manufactured on an Automotive Grade FlowDiode Model Selection Bit - MMBT3904 or 65/90-nm Processor DiodesTwo Formats: -128°C to 127.875°C and 0°C to 255.875°CDigital Filter for Remote ChannelProgrammable TCRIT and OS ThresholdsProgrammable Shared Hysteresis RegisterDiode Fault DetectionMask, Offset, and Status RegistersSMBus 2.0 Compatible Interface, Supports TIMEOUTProgrammable Conversion Rate for Best Power ConsumptionThree-Level Address PinStandby Mode One-Shot Conversion ControlPin-for-Pin Compatible With the LM86 and LM898-Pin VSSOP PackageKey SpecificationsSupply Voltage 3.0 to 3.6 VSupply Current, Conv. Rate = 1 Hz 350 µA (typ)Remote Diode Temperature AccuracyTA= 25°C to 85°C; TD= 60°C to 100°C, ±0.75 °C (max)TA= 25°C to 90°C; TD= 40°C to 125°C, ±1.5 °C (max)Local Temperature AccuracyTA= 25°C to 100°C, ±2.0 °C (max)Conversion Rate, Both Channels 16 to 0.4 HzAll trademarks are the property of their respective owners.

Description

The LM95235 is an 11-bit digital temperature sensor with a 2-wire System Management Bus (SMBus) interface and TruTherm technology that can monitor the temperature of a remote diode as well as its own temperature. The LM95235 can be used to very accurately monitor the temperature of external devices such as microprocessors, graphics processors, or a diode-connected MMBT3904 transistor. For automotive applications the LM95235Q is available that is AEC-Q100 Grade3 compliant and is manufactured on an Automotive Grade Flow. TruTherm BJT (transistor) beta compensation technology allows the LM95235 to precisely monitor thermal diodes found in 90 nm and smaller geometry processes. LM95235 reports temperature in two different formats for +127.875°C/-128°C range and 0°C/255°C range. The LM95235T_CRITandOSoutputs are asserted when either unmasked channel exceeds its programmed limit and can be used to shutdown the system, to turn on the system fans, or as a microcontroller interrupt function. The current status of theT_CRITandOSpins can be read back from the status registers via the SMBus interface. All limits have a shared programmable hysteresis register. The remote temperature channel of the LM95235 has a programmable digital filter. The LM95235 contains a diode model selection bit to select between a typical Intel® processor on a 65 nm or 90 nm process or MMBT3904, as well as an offset register for maximum flexibility and best accuracy. The LM95235 has a three-level address pin to connect up to 3 devices to the same SMBus master, that is shared with theOSoutput. The LM95235 has a programmable conversion rate register and a standby mode to save power. One conversion can be triggered in standby mode by writing to the one-shot register. The LM95235 is an 11-bit digital temperature sensor with a 2-wire System Management Bus (SMBus) interface and TruTherm technology that can monitor the temperature of a remote diode as well as its own temperature. The LM95235 can be used to very accurately monitor the temperature of external devices such as microprocessors, graphics processors, or a diode-connected MMBT3904 transistor. For automotive applications the LM95235Q is available that is AEC-Q100 Grade3 compliant and is manufactured on an Automotive Grade Flow. TruTherm BJT (transistor) beta compensation technology allows the LM95235 to precisely monitor thermal diodes found in 90 nm and smaller geometry processes. LM95235 reports temperature in two different formats for +127.875°C/-128°C range and 0°C/255°C range. The LM95235T_CRITandOSoutputs are asserted when either unmasked channel exceeds its programmed limit and can be used to shutdown the system, to turn on the system fans, or as a microcontroller interrupt function. The current status of theT_CRITandOSpins can be read back from the status registers via the SMBus interface. All limits have a shared programmable hysteresis register. The remote temperature channel of the LM95235 has a programmable digital filter. The LM95235 contains a diode model selection bit to select between a typical Intel® processor on a 65 nm or 90 nm process or MMBT3904, as well as an offset register for maximum flexibility and best accuracy. The LM95235 has a three-level address pin to connect up to 3 devices to the same SMBus master, that is shared with theOSoutput. The LM95235 has a programmable conversion rate register and a standby mode to save power. One conversion can be triggered in standby mode by writing to the one-shot register.
