725-084 Series
Manufacturer: EDAC Inc.
Beta
⌘K

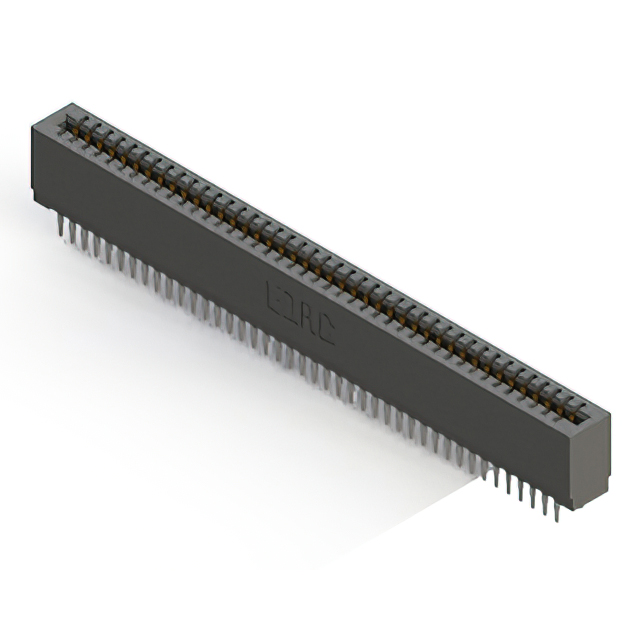

CONN EDGE DUAL FMALE 84POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish | Mounting Type | Number of Rows [custom] | Color | Card Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Number of Positions [custom] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Gender | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | Through Hole | 2 | Black | Non Specified - Dual Edge | Press-Fit | -40 C | 105 ░C | Dual | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 84 | Cantilever | 30 Áin | 0.76 Ám | Female | 42 |
 EDAC Inc. | 2 | Polyester Thermoplastic | Gold | Through Hole | 2 | Black | Non Specified - Dual Edge | Press-Fit | -40 C | 105 ░C | Dual | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 84 | Cantilever | 30 Áin | 0.76 Ám | Female | 42 |
