5276C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

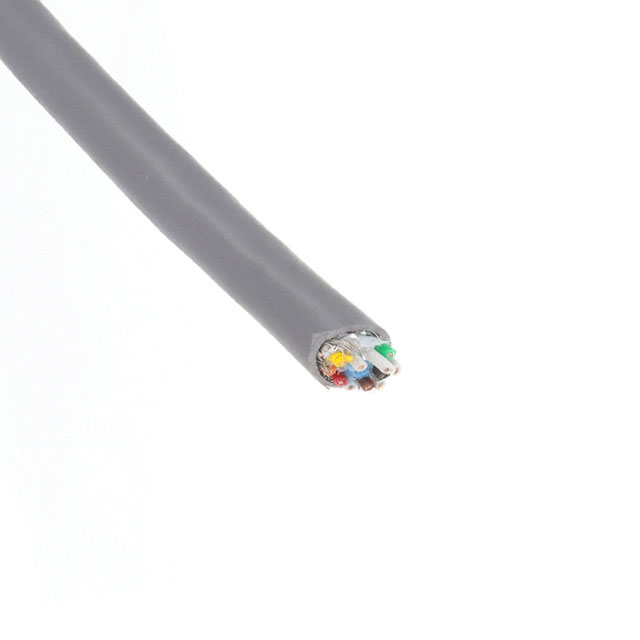

MULTIPAIR CABLE, XTRA GUARD® 1, SHIELDED, 6 PAIR, 24 AWG, 0.23 MM², 1000 FT, 304.8 M
| Part | Shield Material | Shield Coverage | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Number of Conductors | Shield Type | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Features | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Length | Length | Voltage | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Slate | 7 | 32 AWG | Communication Control | 12 | Braid Foil | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | ISO 10993 | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 24 AWG | 0.314 in | 7.98 mm | Multi-Pair | 304.8 m | 1000 ft | 300 VDC | Copper Tinned | ||
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Slate | 7 | 32 AWG | Communication Control | 12 | Braid Foil | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | ISO 10993 | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 24 AWG | 0.314 in | 7.98 mm | Multi-Pair | 300 VDC | Copper Tinned | 100 ft | 30.5 m | ||
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Black | 7 | 32 AWG | Communication Control | 12 | Braid Foil | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | ISO 10993 | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 24 AWG | 0.314 in | 7.98 mm | Multi-Pair | 304.8 m | 1000 ft | 300 VDC | Copper Tinned |
