PPTC041 Series

Catalog

CONN HDR 4POS 0.1 TIN SMD

Part	Contact Material	Insulation Material	Contact Shape	Material Flammability Rating	Number of Rows	Insulation Color	Voltage Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Type	Fastening Type	Current Rating (Amps)	Termination	Insulation Height	Insulation Height	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PPTC041KFXC	Phosphor Bronze	Polyester	Square	UL94 V-0	1	Black	250 V	All	0.1 "	2.54 mm	Tin	Female Socket	Push-Pull	3 A	Solder	0.28 in	7.1 mm	Surface Mount	4	-40 C	105 ░C	Header Top or Bottom Entry

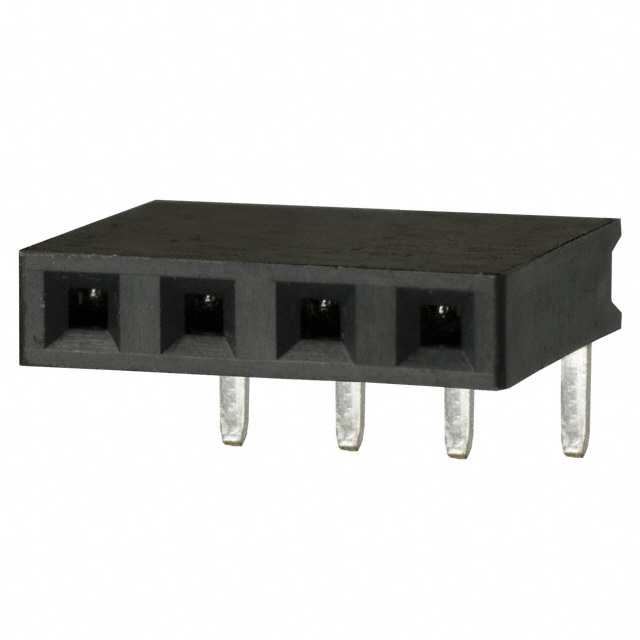

Sullins Connector Solutions PPTC041LGBN-RC	Phosphor Bronze	Polyester	Square	UL94 V-0	1	Black	250 V	All	0.1 "	2.54 mm	Tin	Female Socket	Push-Pull	3 A	Solder	0.1 in	2.54 mm	Right Angle Through Hole	4	-40 C	105 ░C	Header	0.124 in	3.15 mm
Sullins Connector Solutions PPTC041LGBN	Phosphor Bronze	Polyester	Square	UL94 V-0	1	Black	250 V	All	0.1 "	2.54 mm	Tin	Female Socket	Push-Pull	3 A	Solder	0.1 in	2.54 mm	Right Angle Through Hole	4	-40 C	105 ░C	Header	0.124 in	3.15 mm
Sullins Connector Solutions PPTC041LFBN-RC	Phosphor Bronze	Polyester	Square	UL94 V-0	1	Black	250 V	All	0.1 "	2.54 mm	Tin	Female Socket	Push-Pull	3 A	Solder	0.335 "	8.51 mm	Through Hole	4	-40 C	105 ░C	Header			0.126 "	3.2 mm
