505570 Series
Manufacturer: Molex
Beta
⌘K
2.00MM PITCH, MICRO-LOCK PLUS RECEPTACLE CRIMP HOUSING, SINGLE ROW, POSITIVE LOCK, 11 CIRCUITS, LOW-HALOGEN, NATURAL (WHITE)
| Part | Connector Type | Number of Positions | Number of Rows | Color | Contact Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Fastening Type | Contact Termination | Insulation Material | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Receptacle | 11 | 1 | Natural | Female Socket | 0.079 in | 2 mm | -40 C | 105 ░C | Free Hanging (In-Line) | Latch Lock | Crimp | Polybutylene Terephthalate (PBT) Polyester | |

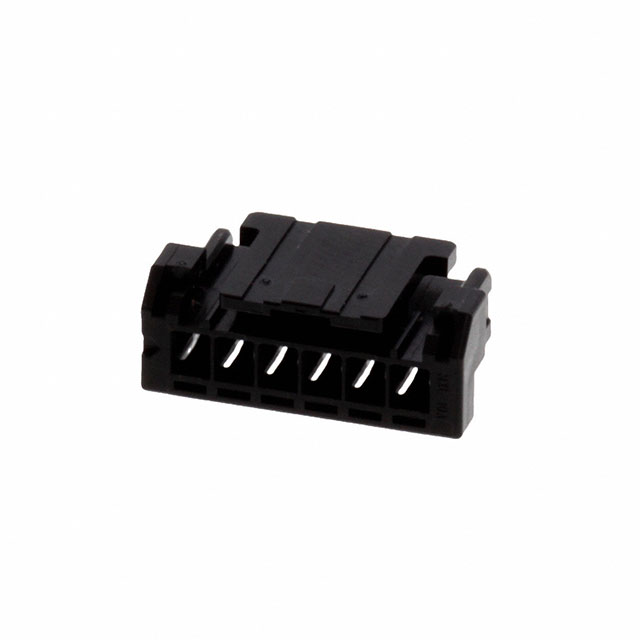

 Molex | Receptacle | 6 | 1 | Black | Non-Gendered | 0.079 in | 2 mm | -40 C | 105 ░C | Free Hanging (In-Line) | Latch Holder | Crimp | Polyester | Contacts Not Included |

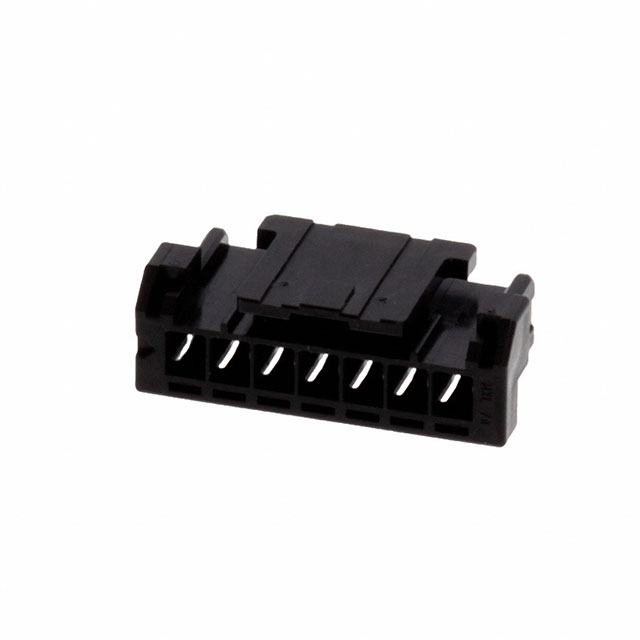

 Molex | Receptacle | 7 | 1 | Black | Non-Gendered | 0.079 in | 2 mm | -40 C | 105 ░C | Free Hanging (In-Line) | Latch Holder | Crimp | Polyester | Contacts Not Included |
 Molex | ||||||||||||||
 Molex | Receptacle | 5 | 1 | Natural | Female Socket | 0.079 in | 2 mm | -40 C | 105 ░C | Free Hanging (In-Line) | Latch Lock | Crimp | ||
 Molex | Receptacle | 11 | 1 | Black | Non-Gendered | 0.079 in | 2 mm | -40 C | 105 ░C | Free Hanging (In-Line) | Latch Holder | Crimp | Polyester | Contacts Not Included |
Molex | Receptacle | 10 | 1 | Black | Non-Gendered | 0.079 in | 2 mm | -40 C | 105 ░C | Free Hanging (In-Line) | Latch Holder | Crimp | Polyester | Contacts Not Included |

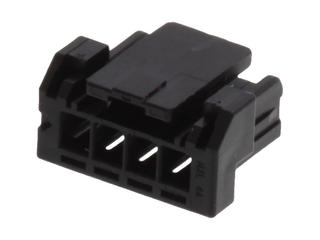

 Molex | Receptacle | 4 | 1 | Black | Non-Gendered | 0.079 in | 2 mm | -40 C | 105 ░C | Free Hanging (In-Line) | Latch Holder | Crimp | Polyester | Contacts Not Included |
 Molex | Receptacle | 8 | 1 | Black | Non-Gendered | 0.079 in | 2 mm | -40 C | 105 ░C | Free Hanging (In-Line) | Latch Holder | Crimp | Polyester | |
 Molex | Receptacle | 16 | 1 | Natural | Female Socket | 0.079 in | 2 mm | -40 C | 105 ░C | Free Hanging (In-Line) | Latch Lock | Crimp | Polybutylene Terephthalate (PBT) Polyester |
