TR9KI2700 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 65W

Part	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	No Load Power Consumption	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Power (Watts)	Polarization	Output Connector	Cord Length	Cord Length	Efficiency	Voltage - Output	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Region Utilized	Approval Agency	Input Connector	Form	Output Connector [diameter]	Output Connector [x]

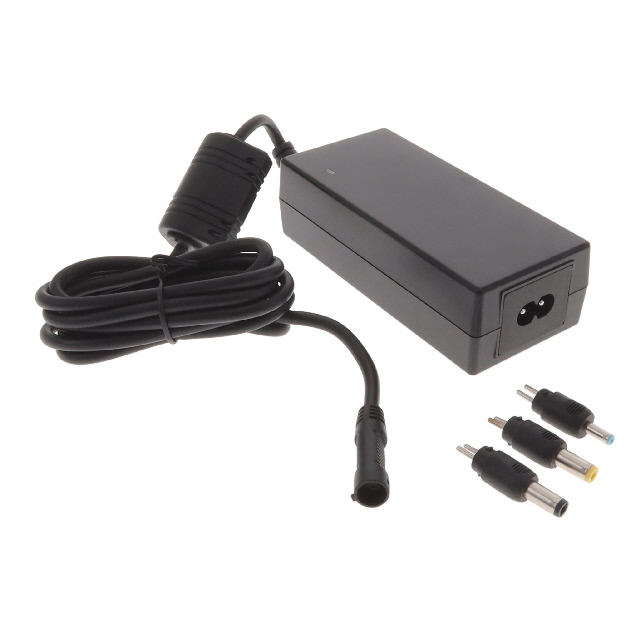

GlobTek, Inc. TR9KI2700T00CIMR6B	2.7 A	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in	150 mW	-20 ░C	40 °C	60601-1-11 60601-1-2 62368-1	65 W	Positive Tip Negative Sleeve	Barrel Plug Kit (1.3mm x 3.5mm	1.5 m	59 in	CoC Tier 2 Level VI	24 V	Cord (Sold Separately)	264 VAC	90 VAC	ITE (Commercial) Medical	International	BSMI CB CE cETLus EAC ETL FCC PSE S-Mark UkrSEPRO VCCI	IEC 320-C8	Desktop (Class II)
GlobTek, Inc. TR9KI2700LCPCIMR6B	2.7 A	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in	150 mW	-20 ░C	40 °C	60601-1-11 60601-1-2 62368-1	65 W	Positive Center	Barrel Plug	1.53 m	60.2 in	CoC Tier 2 Level VI	24 V	Cord (Sold Separately)	264 VAC	90 VAC	ITE (Commercial) Medical	International	BSMI CB CE cETLus EAC ETL FCC PSE S-Mark UkrSEPRO VCCI	IEC 320-C8	Desktop (Class II)	2.5 mm 5.5 mm	11 mm

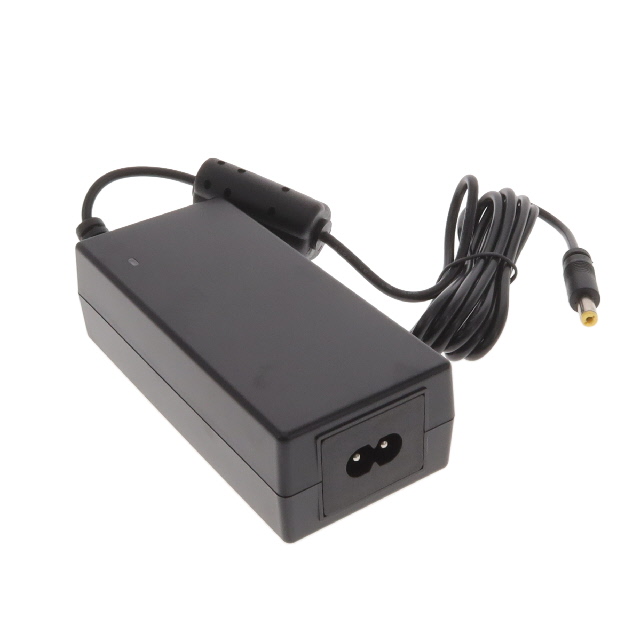

GlobTek, Inc. TR9KI2700CCPCIMR6B	2.7 A	34.2 mm	1.35 in	53.5 mm	4.63 in	117.5 mm	2.11 in	150 mW	-20 ░C	40 °C	60601-1-11 60601-1-2 62368-1	65 W	Positive Center	Barrel Plug	1.53 m	60.2 in	CoC Tier 2 Level VI	24 V	Cord (Sold Separately)	264 VAC	90 VAC	ITE (Commercial) Medical	International	BSMI CB CE cETLus EAC ETL FCC PSE S-Mark UkrSEPRO VCCI	IEC 320-C8	Desktop (Class II)	2.1 mm 5.5 mm	11 mm
