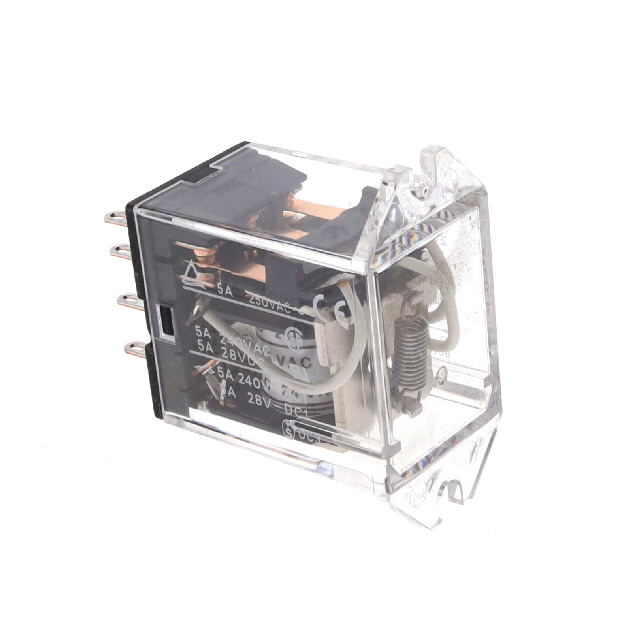

MY3F A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 3PDT 5A 240V
| Part | Contact Material | Approval Agency | Release Time | Switching Voltage | Must Release Voltage | Contact Rating (Current) | Operate Time | Coil Resistance | Load - Max Switching | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Coil Voltage | Coil Current | Must Operate Voltage | Contact Form | Relay Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Silver (Ag) | CE CSA UR VDE | 20 ms | 125 VDC 250 VAC | 72 VAC/DC | 5 A | 20 ms | 18.79 kOhms | 625 W 1250 VA | Non Latching | 70 °C | -55 °C | Solder Lug | 240 VAC | 12.8 mA | 192 VAC | 3PDT (3 Form C) | General Purpose | Chassis Mount |
 Omron Electronics Inc-EMC Div | Silver (Ag) | CE CSA UR VDE | 20 ms | 125 VDC 250 VAC | 7.2 VAC | 5 A | 20 ms | 180 Ohms | 625 W 1250 VA | Non Latching | 70 °C | -55 °C | Solder Lug | 24 VAC | 133.3 mA | 19.2 VAC | 3PDT (3 Form C) | General Purpose | Chassis Mount |
