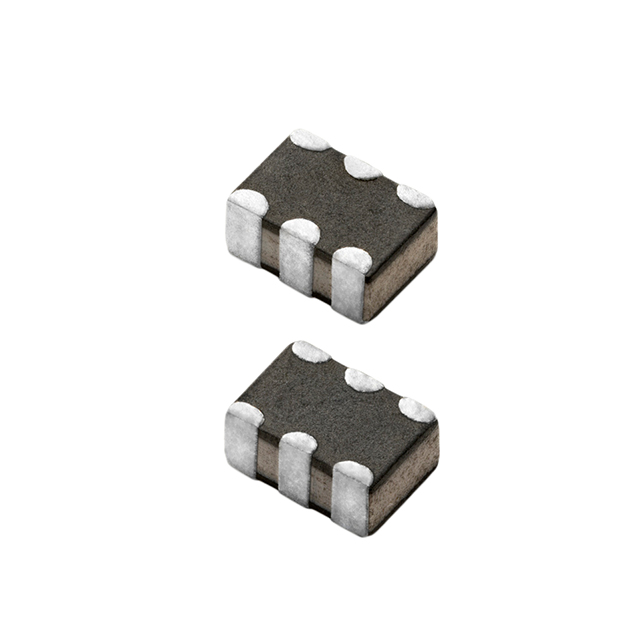

LPF090703A250TG Series

C-PHY 0907 25OHM

Catalog

C-PHY 0907 25OHM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Mounting Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Filter Type	Impedance @ Frequency	DC Resistance (DCR) (Max)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Max) [Max]	Package / Case	Package / Case	Package / Case
LITTELFUSE LPF090703A250TG	85 °C	-40 C	3	Surface Mount	0.02 in	0.5 mm	Signal Line	25 Ohms	5 Ohm	0.9 mm	0.68 mm	0.027 in	0.035 in	80 mA	0806 Metric	6 PC Pad	0302

Catalog

C-PHY 0907 25OHM

Description

Littelfuse LPF Series is a common mode noise filter that covers the specification of the requirements for high-speed differential serial interfaces, corresponding to new high-speed data transmission specification, like C-PHY.
