OFNS-16 Series

Catalog

FASTENER, SADDLE CLAMP, NYLON (POLYAMIDE), NATURAL, 34.3 MM, 6.9 MM

Part	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Material	Color	Height [z]	Height	Width [y]	Width [y]	Mounting Type	Features	Length	Length	Panel Hole Size	Panel Hole Size	Type Attributes	Material Flammability Rating	Opening Size [y]	Opening Size [x]	Opening Size [x]	Opening Size [y]	Type	Panel Hole Size
Essentra Components OFNS16-S9.5M-19	0.79 mm	0.079 "	0.031 "	2 mm	Polyamide (PA66) Nylon 6/6	Natural	1.35 in	34.29 mm	0.27 in	6.86 mm	Arrowhead	Flame Retardant	34.29 mm	1.35 in	0.374 in 9.5 mm	Square	Round	UL94 V-0	25.15 mm	28.7 mm	1.13 in	0.99 in	Clip Wire Saddle
Essentra Components OFNS-16-312-01	0.79 mm	0.063 "	0.031 "	1.6 mm	Polyamide (PA66) Nylon 6/6	Natural	1.35 in	34.29 mm	0.27 in	6.86 mm	Arrowhead Winged		34.29 mm	1.35 in	7.92 mm		Round	UL94 V-2	25.15 mm	28.7 mm	1.13 in	0.99 in	Clip Wire Saddle	0.312 in

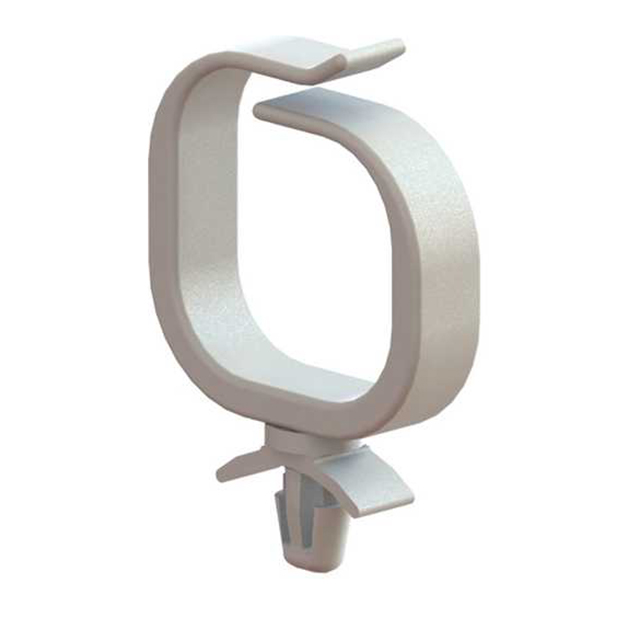

Essentra Components OFNS-16-187-19	0.79 mm	0.079 "	0.031 "	2 mm	Polyamide (PA66) Nylon 6/6	Natural	1.35 in	34.29 mm	0.27 in	6.86 mm	Arrowhead Winged	Flame Retardant	34.29 mm	1.35 in	4.75 mm		Round	UL94 V-0	25.15 mm	28.7 mm	1.13 in	0.99 in	Clip Wire Saddle	0.187 in
