SDF-V37 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB PLUG 37P PNL MNT SLDR
| Part | Color | Dielectric Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Shell Material, Finish | Number of Rows [custom] | Number of Positions | Contact Type | Contact Finish Thickness | Flange Feature | Contact Finish | Termination | Connector Style | Mounting Type | Ingress Protection | Connector Type | Features | Shell Size, Connector Layout | Shell Size, Connector Layout | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

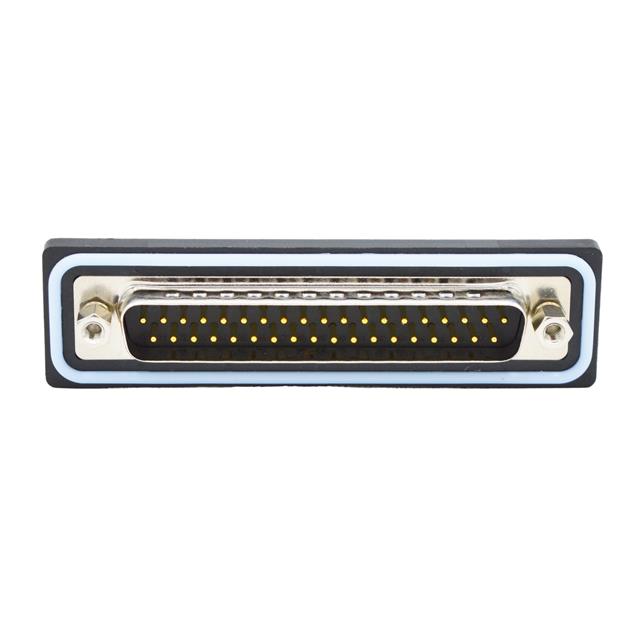

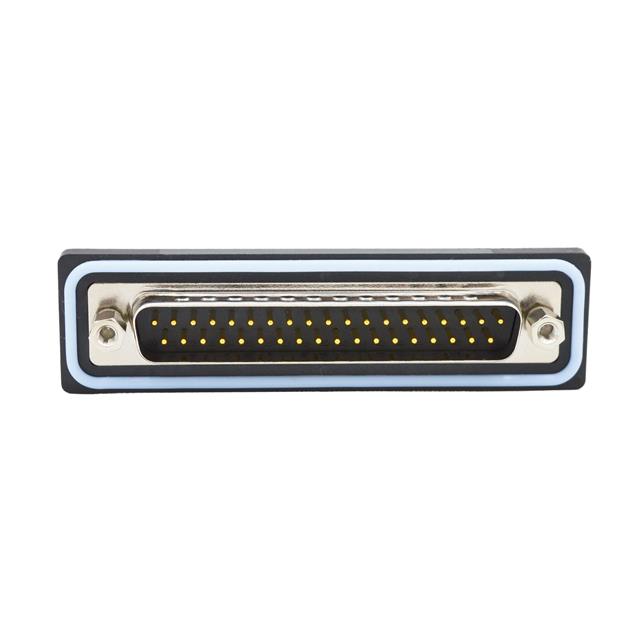

 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | 5 A | Nickel Plated Steel | 2 | 37 | Signal | Flash | 4-40 Mating Side Female Screwlock | Gold | Solder | D-Sub | Panel Mount Through Hole | IP67 - Dust Tight Waterproof | Plug Male Pins | Board Lock Grounding Indents | 4 | DC C | UL94 V-0 | ||

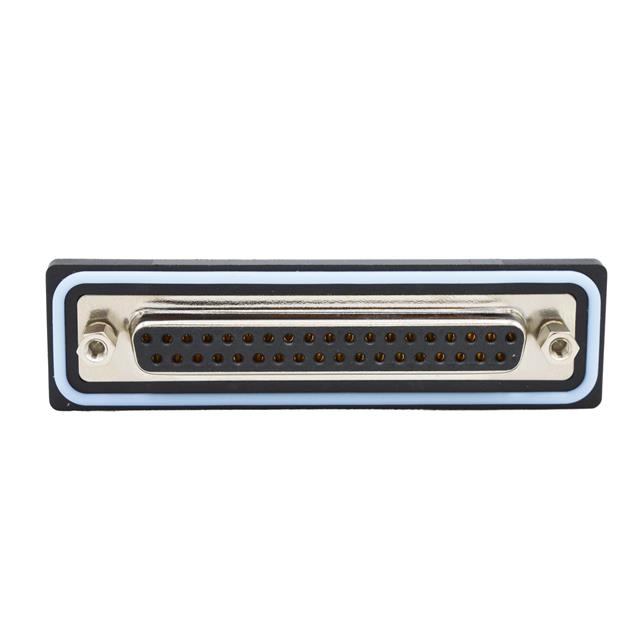

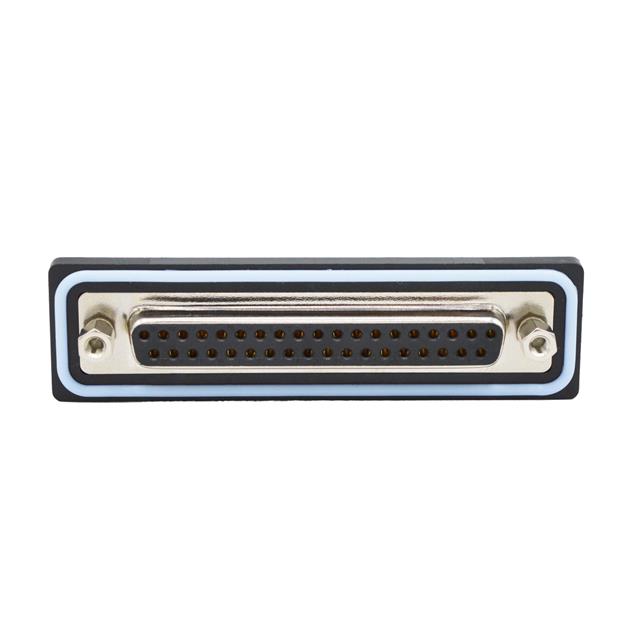

 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | 5 A | Nickel Plated Steel | 2 | 37 | Signal | Flash | 4-40 Mating Side Female Screwlock | Gold | Solder | D-Sub | Panel Mount Through Hole | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Board Lock | 4 | DC C | UL94 V-0 | ||
NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | 5 A | Nickel Plated Steel | 2 | 37 | Signal | 4-40 Mating Side Female Screwlock | Gold | Solder | D-Sub | Panel Mount Through Hole | IP67 - Dust Tight Waterproof | Plug Male Pins | Board Lock Grounding Indents | 4 | DC C | UL94 V-0 | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | 5 A | Nickel Plated Steel | 2 | 37 | Signal | Flash | 4-40 Mating Side Female Screwlock | Gold | Solder | D-Sub | Panel Mount Through Hole | IP67 - Dust Tight Waterproof | Plug Male Pins | Grounding Indents | 4 | DC C | UL94 V-0 | ||
NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | 5 A | Nickel Plated Steel | 2 | 37 | Signal | 4-40 Mating Side Female Screwlock | Gold | Solder | D-Sub | Panel Mount Through Hole | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Board Lock | 4 | DC C | UL94 V-0 | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | 5 A | Nickel Plated Steel | 2 | 37 | Signal | Flash | 4-40 Mating Side Female Screwlock | Gold | Solder | D-Sub | Panel Mount Through Hole | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | 4 | DC C | UL94 V-0 | |||
NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | 5 A | Nickel Plated Steel | 2 | 37 | Signal | 4-40 Mating Side Female Screwlock | Gold | Solder | D-Sub | Panel Mount Through Hole | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | 4 | DC C | UL94 V-0 | 30 Áin | 0.76 Ám | ||
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | 5 A | Nickel Plated Steel | 2 | 37 | Signal | 4-40 Mating Side Female Screwlock | Gold | Solder | D-Sub | Panel Mount Through Hole | IP67 - Dust Tight Waterproof | Plug Male Pins | Grounding Indents | 4 | DC C | UL94 V-0 | 30 Áin | 0.76 Ám |
