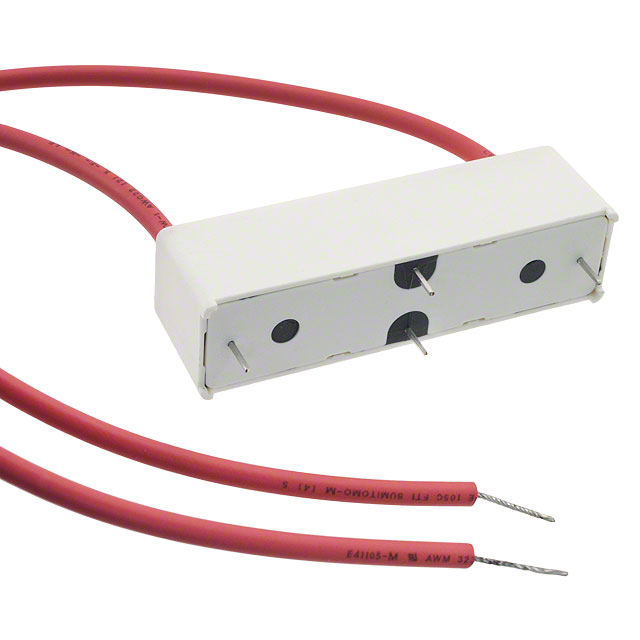

DAR71210 Series
Manufacturer: Sensata Technologies
Beta
⌘K
RELAY REED SPST-NO 3A 12V
| Part | Coil Resistance | Contact Material | Release Time | Contact Form | Coil Current | Termination Style | Must Release Voltage | Contact Rating (Current) | Coil Type | Operate Time | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage | Mounting Type | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata Technologies | 150 Ohms | Rhodium (Rh) | 2 ms | SPST-NO (1 Form A) | 80 mA | Quick Connect - 0.250" (6.3mm) | 1.25 VDC | 3 A | Non Latching | 3 ms | 1000 VDC 1000 VAC | -20 C | 70 °C | 12 VDC | Chassis Mount | 9 VDC |
 Sensata Technologies | 150 Ohms | Rhodium (Rh) | 2 ms | SPST-NO (1 Form A) | 80 mA | PC Pin Wire Leads | 1.25 VDC | 3 A | Non Latching | 3 ms | 1000 VDC 1000 VAC | -20 C | 70 °C | 12 VDC | Through Hole | 9 VDC |
