AR18-HZ Series
Manufacturer: Assmann WSW Components
Beta
⌘K

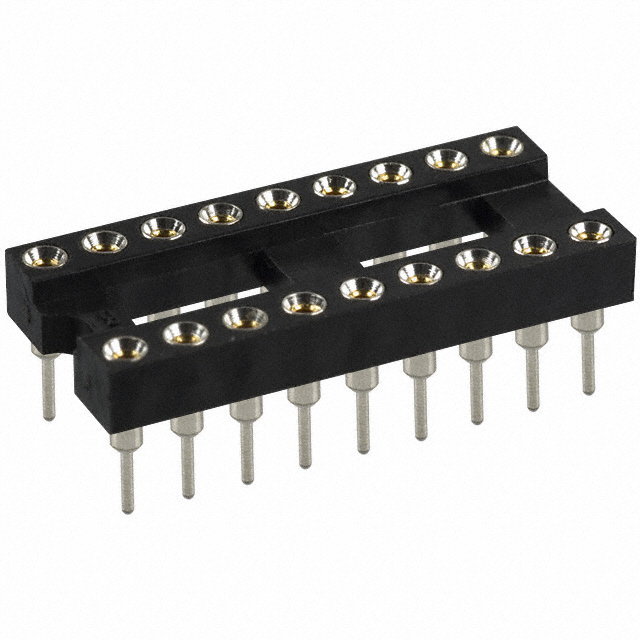

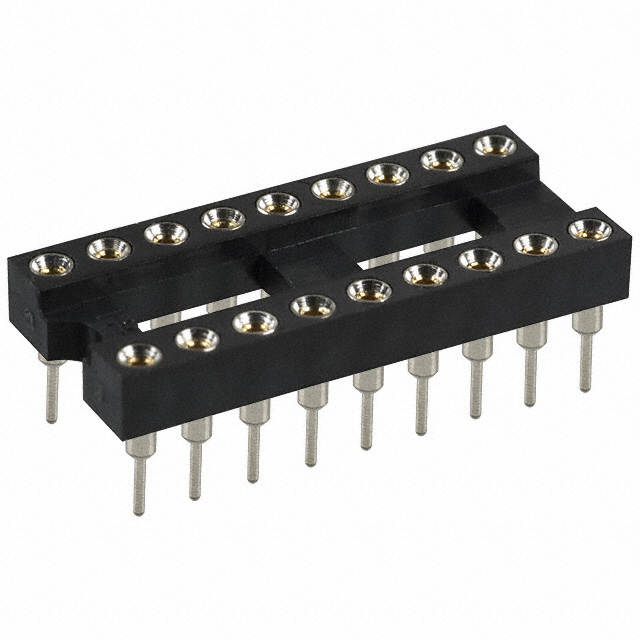

CONN IC DIP SOCKET 18POS GOLD
| Part | Material Flammability Rating | Current Rating (Amps) | Contact Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Post | Type | Type | Type | Pitch - Mating | Pitch - Mating | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Mating | Contact Finish - Mating | Mounting Type | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) | Features | Contact Finish - Post | Housing Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | UL94 V-0 | 3 A | 4 mOhm | -40 C | 105 ░C | Beryllium Copper | 7.62 mm | 0.3 in | DIP | 0.1 " | 2.54 mm | Wire Wrap | 200 µin | 5.08 µm | Beryllium Copper | Gold | Through Hole | 0.1 in | 2.54 mm | 18 | Open Frame | Tin | Polyester Thermoplastic | ||
 Assmann WSW Components | UL94 V-0 | 3 A | 4 mOhm | -40 C | 105 ░C | Beryllium Copper | 7.62 mm | 0.3 in | DIP | 0.1 " | 2.54 mm | Solder | 200 µin | 5.08 µm | Beryllium Copper | Gold | Through Hole | 0.1 in | 2.54 mm | 18 | Open Frame | Tin | Polyester Thermoplastic | 0.76 Ám | 30 Áin |
 Assmann WSW Components | UL94 V-0 | 3 A | 4 mOhm | -40 C | 105 ░C | Beryllium Copper | 7.62 mm | 0.3 in | DIP | 0.1 " | 2.54 mm | Solder | 200 µin | 5.08 µm | Beryllium Copper | Through Hole | 0.1 in | 2.54 mm | 18 | Open Frame | Tin | Polyester Thermoplastic |
