34141 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

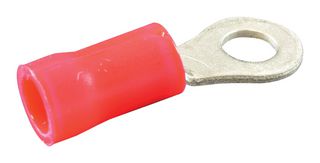

RING TONGUE TERMINAL, M2.5, #4, 16 AWG, 1.65 MM², PLASTI-GRIP SERIES, RED
| Part | Width - Outer Edges [x] | Width - Outer Edges [x] | Color | Insulation | Thickness | Thickness | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Max] | Wire Gauge [Min] | Features | Contact Finish | Terminal Type | Contact Material | Material - Insulation | Mounting Type | Termination | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 5.54 mm | 0.218 in | Red | Insulated | 0.031 in | 0.79 mm | 17.37 mm | 0.684 in | 22 AWG | 16 AWG | Serrated Termination | Tin | Circular | Copper | Poly-Vinyl Chloride (PVC) | Free Hanging (In-Line) | Crimp | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | 4 Stud |
