3028-1541 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

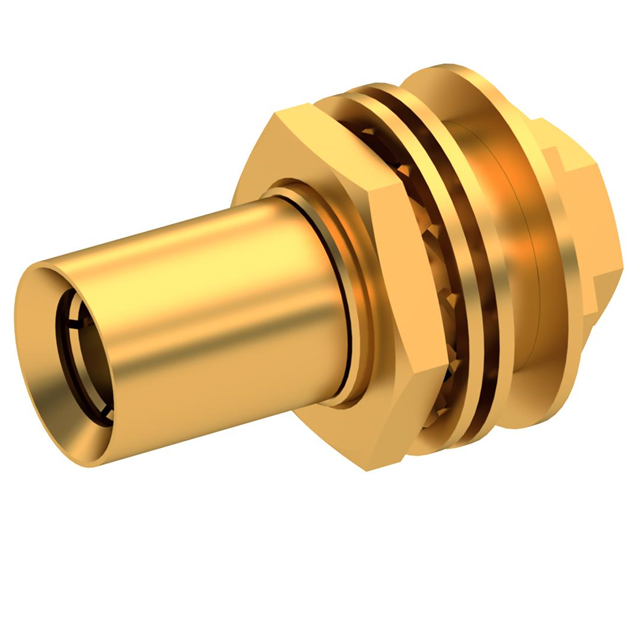

SLB / STRAIGHT PLUG FEMALE SOLDE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Mating Cycles | Body Finish | Center Contact Plating | Body Material | Dielectric Material | Connector Style | Shield Termination | Cable Group | Connector Type | Number of Ports | Mounting Type | Housing Color | Frequency - Max [Max] | Contact Termination | Center Contact Material | Impedance | Fastening Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 0.3 dB | 500 | Gold | Gold | Brass | Polytetrafluoroethylene (PTFE) | SLB | Clamp | RG-405 (.085" Semi Rigid) | Female Socket Plug | 1 | Panel Mount | Gold | 4 GHz | Solder | Beryllium Copper | 50 Ohms | Snap-On | Bulkhead - Front Side Nut |
Radiall USA, Inc. | -65 ░C | 165 °C | 0.3 dB | 500 | Gold | Gold | Brass | Polytetrafluoroethylene (PTFE) | SLB | Clamp | RG-405 (.085" Semi Rigid) | Female Socket Plug | 1 | Panel Mount | Gold | 4 GHz | Solder | Beryllium Copper | 50 Ohms | Snap-On | Bulkhead - Front Side Nut |
 Radiall USA, Inc. | -65 ░C | 165 °C | 0.3 dB | 500 | Gold | Gold | Brass | Polytetrafluoroethylene (PTFE) | SLB | Clamp | RG-405 (.085" Semi Rigid) | Female Socket Plug | 1 | Panel Mount | Gold | 4 GHz | Solder | Beryllium Copper | 50 Ohms | Snap-On | Bulkhead - Front Side Nut |
