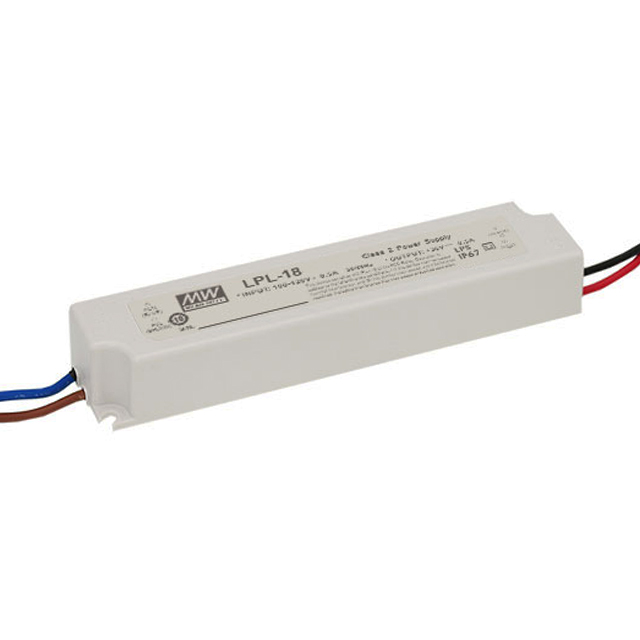

LPL-18 Series

Catalog

LED DRIVER CV AC/DC 24V 750MA

Part	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output	Ratings	Voltage - Input (Max) [Max]	Power (Watts)	Topology	Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Termination Style	Approval Agency	Current - Output (Max) [Max]
MEAN WELL USA Inc. LPL-18-24	Chassis Mount	OCP OTP OVP SCP	22 mm	1.18 "	140 mm	5.51 in	0.87 in	30 mm	90 VAC	1	24 V	IP67	132 VAC	18 W	AC DC Converter	Constant Voltage	83 %	-30 ░C	70 °C	3000 V	Wire Leads	CE	750 mA
MEAN WELL USA Inc. LPL-18-36	Chassis Mount	OCP OTP OVP SCP	22 mm	1.18 "	140 mm	5.51 in	0.87 in	30 mm	90 VAC	1	36 V	IP67	132 VAC	18 W	AC DC Converter	Constant Voltage	84 %	-30 ░C	70 °C	3000 V	Wire Leads	CE	500 mA
MEAN WELL USA Inc. LPL-18-12	Chassis Mount	OCP OTP OVP SCP	22 mm	1.18 "	140 mm	5.51 in	0.87 in	30 mm	90 VAC	1	12 V	IP67	132 VAC	18 W	AC DC Converter	Constant Voltage	80 %	-30 ░C	70 °C	3000 V	Wire Leads	CE	1.5 A
