LNA4801 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

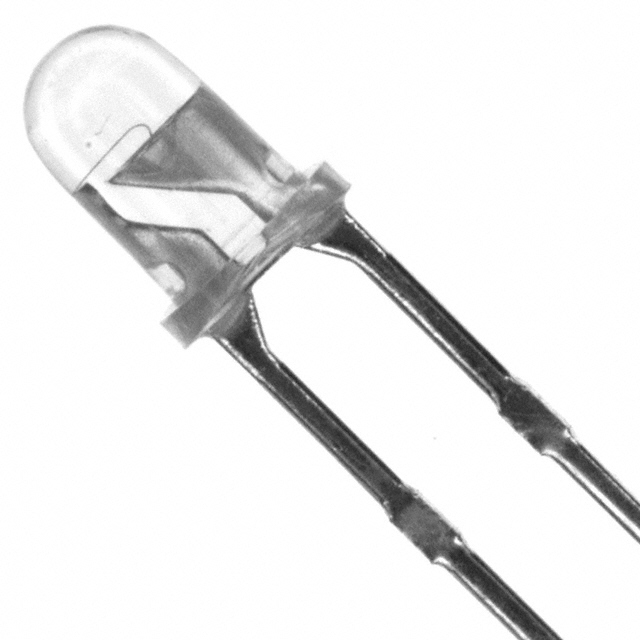

EMITTER IR 860NM 100MA T-1
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Wavelength | Package / Case | Current - DC Forward (If) (Max) [Max] | Mounting Type | Voltage - Forward (Vf) (Typ) | Radiant Intensity (Ie) Min @ If [Min] | Type | Orientation | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 85 C | -25 °C | 860 nm | T-1 | 100 mA | Through Hole | 1.6 V | 12 mW/sr | Infrared (IR) | Top View | 44 ° |
