LMZ14201EXT Series

1A SIMPLE SWITCHER Power Module with 42V Maximum Input Voltage for Military and Rugged App

Catalog

1A SIMPLE SWITCHER Power Module with 42V Maximum Input Voltage for Military and Rugged App

Part	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Frequency - Switching [Max]	Board Type	Voltage - Output	Utilized IC / Part	Supplied Contents	Outputs and Type	Outputs and Type	Regulator Topology	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Number of Outputs	Features	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Mounting Type	Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Control Features	Voltage - Input (Max) [Max]	Applications	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]

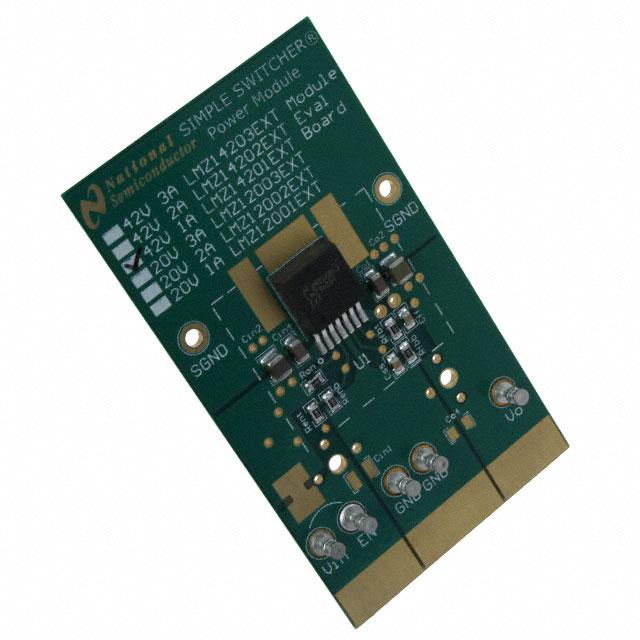

Texas Instruments LMZ14201EXTEVAL/NOPB	DC/DC Step Down	6 V	24 V	1 A	1 MHz	Fully Populated	3.3 V	LMZ14201EXT	Board(s)	Non-Isolated	1	Buck

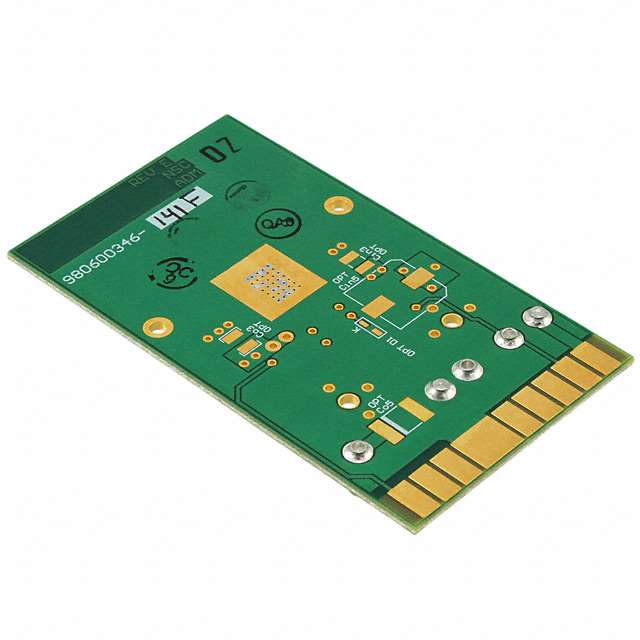

Texas Instruments LMZ14201EVAL/NOPB	DC/DC Step Down	6 V	24 V	1 A	1 MHz	Fully Populated	3.3 V	LMZ14201	Board(s)	Non-Isolated	1	Buck
Texas Instruments LMZ14201HTZ/NOPB													TO-PMOD-7	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	TO-PMOD-7 Power Module	1	OCP OTP OVP SCP UVLO	5 V	30 V	Surface Mount	Non-Isolated PoL Module	1 A	6 V	Active High Enable	42 V	ITE (Commercial)	97 %	125 °C	-40 °C
Texas Instruments LMZ14201HTZE/NOPB													TO-PMOD-7	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	TO-PMOD-7 Power Module	1	OCP OTP OVP SCP UVLO	5 V	30 V	Surface Mount	Non-Isolated PoL Module	1 A	6 V	Active High Enable	42 V	ITE (Commercial)	97 %	125 °C	-40 °C
Texas Instruments LMZ14201EXTTZE/NOPB													TO-PMOD-7	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	TO-PMOD-7 Power Module	1	UVLO	0.8 V	6 V	Surface Mount	Non-Isolated PoL Module	1 A	6 V	Active High Enable	42 V	ITE (Commercial)	90 %	125 °C	-55 °C
Texas Instruments LMZ14201TZX-ADJ/NOPB													TO-PMOD-7	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	TO-PMOD-7 Power Module	1	UVLO	0.8 V	6 V	Surface Mount	Non-Isolated PoL Module	1 A	6 V	Active High Enable	42 V	ITE (Commercial)	90 %	125 °C	-40 °C
Texas Instruments LMZ14201EXTTZ/NOPB													TO-PMOD-7	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	TO-PMOD-7 Power Module	1	UVLO	0.8 V	6 V	Surface Mount	Non-Isolated PoL Module	1 A	6 V	Active High Enable	42 V	ITE (Commercial)	90 %	125 °C	-55 °C
Texas Instruments LMZ14201HEVAL/NOPB	DC/DC Step Down	15 V	42 V	1 A		Fully Populated	12 V	LMZ14201H	Board(s)	Non-Isolated	1	Buck
Texas Instruments LMZ14201HTZX/NOPB													TO-PMOD-7	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	TO-PMOD-7 Power Module	1	OCP OTP OVP SCP UVLO	5 V	30 V	Surface Mount	Non-Isolated PoL Module	1 A	6 V	Active High Enable	42 V	ITE (Commercial)	97 %	125 °C	-40 °C

Catalog

1A SIMPLE SWITCHER Power Module with 42V Maximum Input Voltage for Military and Rugged App

Key Features

• Junction Temperature Range –55°C to 125°CIntegrated Shielded InductorSimple PCB LayoutFlexible Startup Sequencing Using External Soft-Start and Precision EnableProtection Against Inrush Currents and Faultssuch as Input UVLO and Output Short CircuitSingle Exposed Pad and Standard Pinout forEasy Mounting and ManufacturingFast Transient Response for Powering FPGAsand ASICsLow Output Voltage RipplePin-to-Pin Compatible With Family Devices:LMZ14203EXT/2EXT/1EXT(42-V Maximum 3 A, 2 A, 1 A)LMZ14203/2/1 (42-V Maximum 3 A, 2 A, 1 A)LMZ12003/2/1 (20-V Maximum 3 A, 2 A, 1 A)Fully Enabled for WEBENCH Power DesignerElectrical Specifications6-W Maximum Total Output PowerUp to 1-A Output CurrentInput Voltage Range 6 V to 42 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 90%Performance BenefitsLow Radiated Emissions and High Radiated ImmunityPasses Vibration Standard MIL-STD-883 Method2007.2 Condition A JESD22–B103BCondition 1Passes Drop Standard MIL-STD-883 Method2002.3 Condition B JESD22–B110 Condition BJunction Temperature Range –55°C to 125°CIntegrated Shielded InductorSimple PCB LayoutFlexible Startup Sequencing Using External Soft-Start and Precision EnableProtection Against Inrush Currents and Faultssuch as Input UVLO and Output Short CircuitSingle Exposed Pad and Standard Pinout forEasy Mounting and ManufacturingFast Transient Response for Powering FPGAsand ASICsLow Output Voltage RipplePin-to-Pin Compatible With Family Devices:LMZ14203EXT/2EXT/1EXT(42-V Maximum 3 A, 2 A, 1 A)LMZ14203/2/1 (42-V Maximum 3 A, 2 A, 1 A)LMZ12003/2/1 (20-V Maximum 3 A, 2 A, 1 A)Fully Enabled for WEBENCH Power DesignerElectrical Specifications6-W Maximum Total Output PowerUp to 1-A Output CurrentInput Voltage Range 6 V to 42 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 90%Performance BenefitsLow Radiated Emissions and High Radiated ImmunityPasses Vibration Standard MIL-STD-883 Method2007.2 Condition A JESD22–B103BCondition 1Passes Drop Standard MIL-STD-883 Method2002.3 Condition B JESD22–B110 Condition B

Description

The LMZ14201EXT SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 1-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ14201EXT is available in an innovative package that enhances thermal performance and the device allows for hand or machine soldering. The LMZ14201EXT can accept an input voltage rail between 6 V and 42 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ14201EXT only requires three external resistors and four external capacitors to complete the power solution. The LMZ14201EXT is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short-circuit protection, output current limit, and allows startup into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz. The LMZ14201EXT SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 1-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ14201EXT is available in an innovative package that enhances thermal performance and the device allows for hand or machine soldering. The LMZ14201EXT can accept an input voltage rail between 6 V and 42 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ14201EXT only requires three external resistors and four external capacitors to complete the power solution. The LMZ14201EXT is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short-circuit protection, output current limit, and allows startup into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz.
