CC1125 Series

Ultra-high performance Sub-1 GHz wireless transceiver for narrowband systems

Catalog

Ultra-high performance Sub-1 GHz wireless transceiver for narrowband systems

Part	Current - Transmitting [Max]	Current - Transmitting [Min]	Data Rate (Max) [Max]	Type	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Supplier Device Package	Mounting Type	Memory Size	GPIO	Package / Case	Serial Interfaces	Current - Receiving [Min]	Current - Receiving [Max]	Frequency [Min]	Frequency [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplied Contents	Frequency	For Use With/Related Products
Texas Instruments CC1125RHBR	56 mA	26 mA	200 kbps	TxRx + MCU	-129 dBm	3.6 V	2 V	General ISM < 1GHz	32-VQFN (5x5)	Surface Mount	4 kB 256 B	4	32-VFQFN Exposed Pad	SPI	17 mA	27 mA	164 MHz 274 MHz 410 MHz 820 MHz	192 MHz 320 MHz 480 MHz 960 MHz	85 °C	-40 °C
Texas Instruments CC1125RHMT	56 mA	26 mA	200 kbps	TxRx + MCU	-129 dBm	3.6 V	2 V	General ISM < 1GHz	32-VQFN (5x5)	Surface Mount	4 kB 256 B	4	32-VFQFN Exposed Pad	SPI	17 mA	27 mA	164 MHz 274 MHz 410 MHz 820 MHz	192 MHz 320 MHz 480 MHz 960 MHz	85 °C	-40 °C

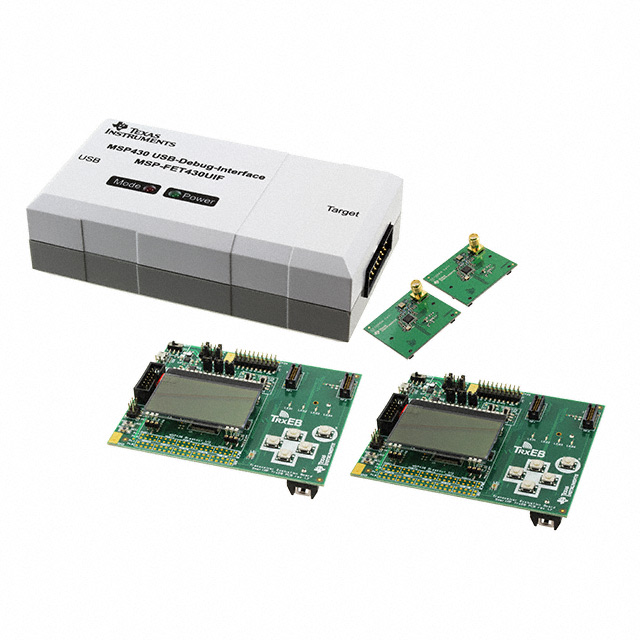

Texas Instruments CC1125DK				Transceiver ISM																	Accessories Board(s) Cable(s)	868 MHz	CC1125
Texas Instruments CC1125RHBT	56 mA	26 mA	200 kbps	TxRx + MCU	-129 dBm	3.6 V	2 V	General ISM < 1GHz	32-VQFN (5x5)	Surface Mount	4 kB 256 B	4	32-VFQFN Exposed Pad	SPI	17 mA	27 mA	164 MHz 274 MHz 410 MHz 820 MHz	192 MHz 320 MHz 480 MHz 960 MHz	85 °C	-40 °C

Catalog

Ultra-high performance Sub-1 GHz wireless transceiver for narrowband systems

Key Features

• High-Performance, Single-Chip TransceiverAdjacent Channel Selectivity: 67 dB at6.25-kHz OffsetBlocking Performance: 104 dB at 10 MHzExcellent Receiver Sensitivity–129 dBm at 300 bps–123 dBm at 1.2 kbps–110 dBm at 50 kbpsVery Low Phase Noise: –115 dBc/Hz at10-kHz OffsetSuitable for Systems Targeting ETSICategory 1Separate 128-Byte RX and TX FIFOsSupport for Seamless Integration With the CC1190 Device for Increased Range Giving up to 3-dB Improvement in Sensitivity and up to +27-dBm Output PowerHigh Spectral Efficiency (9.6 kbps in 12.5-kHz Channel in Compliance With FCC Narrowbanding Mandate)Power SupplyWide Supply Voltage Range (2.0 V to 3.6 V)Low Current Consumption:RX: 2 mA in RX Sniff ModeRX: 17 mA Peak Current in Low-Power ModeRX: 26 mA Peak Current in High-Performance ModeTX: 47 mA at +14 dBmPower Down: 0.12 μA (0.5 μA With Enhanced Wake-On-Radio (eWOR) Timer Running)Programmable Output Power up to +16 dBm With 0.4-dB Step SizeAutomatic Output Power RampingConfigurable Data Rates: 0 to 200 kbpsSupported Modulation Formats: 2-FSK,2-GFSK, 4-FSK, 4-GFSK, MSK, OOKWaveMatch: Advanced Digital Signal Processing for Improved Sync Detect PerformanceRoHS-Compliant 5-mm x 5-mm No-Lead QFN32-Pin Package (RHB)Regulations – Suitable for Systems Targeting Compliance WithEurope: ETSI EN 300 220 Category 1, ETSI EN 54-25, ETSI EN 300 113, and EN 301 166US: FCC CFR47 Part 15, 24, 90, 101Japan: ARIB RCR STD-T30, T-67, T-108Peripherals and Support FunctionseWOR Functionality for Automatic Low-Power Receive PollingIncludes Functions for Antenna Diversity SupportSupport for RetransmissionsSupport for Auto-Acknowledge of Received PacketsTCXO Support and Control, also in Power ModesAutomatic Clear Channel Assessment (CCA) for Listen-Before-Talk (LBT) SystemsBuilt-in Coding Gain Support for Increased Range and RobustnessDigital RSSI MeasurementTemperature SensorHigh-Performance, Single-Chip TransceiverAdjacent Channel Selectivity: 67 dB at6.25-kHz OffsetBlocking Performance: 104 dB at 10 MHzExcellent Receiver Sensitivity–129 dBm at 300 bps–123 dBm at 1.2 kbps–110 dBm at 50 kbpsVery Low Phase Noise: –115 dBc/Hz at10-kHz OffsetSuitable for Systems Targeting ETSICategory 1Separate 128-Byte RX and TX FIFOsSupport for Seamless Integration With the CC1190 Device for Increased Range Giving up to 3-dB Improvement in Sensitivity and up to +27-dBm Output PowerHigh Spectral Efficiency (9.6 kbps in 12.5-kHz Channel in Compliance With FCC Narrowbanding Mandate)Power SupplyWide Supply Voltage Range (2.0 V to 3.6 V)Low Current Consumption:RX: 2 mA in RX Sniff ModeRX: 17 mA Peak Current in Low-Power ModeRX: 26 mA Peak Current in High-Performance ModeTX: 47 mA at +14 dBmPower Down: 0.12 μA (0.5 μA With Enhanced Wake-On-Radio (eWOR) Timer Running)Programmable Output Power up to +16 dBm With 0.4-dB Step SizeAutomatic Output Power RampingConfigurable Data Rates: 0 to 200 kbpsSupported Modulation Formats: 2-FSK,2-GFSK, 4-FSK, 4-GFSK, MSK, OOKWaveMatch: Advanced Digital Signal Processing for Improved Sync Detect PerformanceRoHS-Compliant 5-mm x 5-mm No-Lead QFN32-Pin Package (RHB)Regulations – Suitable for Systems Targeting Compliance WithEurope: ETSI EN 300 220 Category 1, ETSI EN 54-25, ETSI EN 300 113, and EN 301 166US: FCC CFR47 Part 15, 24, 90, 101Japan: ARIB RCR STD-T30, T-67, T-108Peripherals and Support FunctionseWOR Functionality for Automatic Low-Power Receive PollingIncludes Functions for Antenna Diversity SupportSupport for RetransmissionsSupport for Auto-Acknowledge of Received PacketsTCXO Support and Control, also in Power ModesAutomatic Clear Channel Assessment (CCA) for Listen-Before-Talk (LBT) SystemsBuilt-in Coding Gain Support for Increased Range and RobustnessDigital RSSI MeasurementTemperature Sensor

Description

The CC1125 device is a fully integrated single-chip radio transceiver designed for high performance at very low-power and low-voltage operation in cost-effective wireless systems. All filters are integrated, thus removing the need for costly external SAW and IF filters. The device is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 164–192 MHz, 274–320 MHz, 410–480 MHz, and 820–960 MHz. The CC1125 device provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and Wake-On-Radio. The main operating parameters of the CC1125 device can be controlled through an SPI interface. In a typical system, the CC1125 device will be used with a microcontroller and only a few external passive components. The CC1125 device is a fully integrated single-chip radio transceiver designed for high performance at very low-power and low-voltage operation in cost-effective wireless systems. All filters are integrated, thus removing the need for costly external SAW and IF filters. The device is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 164–192 MHz, 274–320 MHz, 410–480 MHz, and 820–960 MHz. The CC1125 device provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and Wake-On-Radio. The main operating parameters of the CC1125 device can be controlled through an SPI interface. In a typical system, the CC1125 device will be used with a microcontroller and only a few external passive components.
