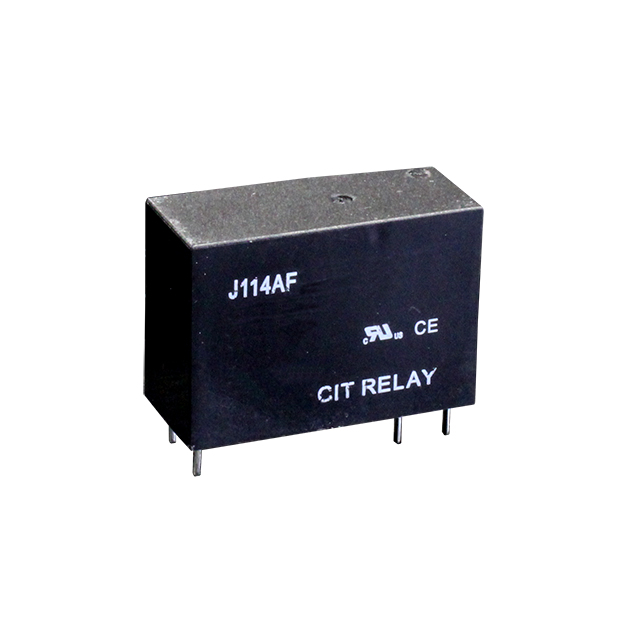

J114AF1 Series

Catalog

RELAY GEN PURPOSE SPDT 16A 5V

Part	Coil Resistance	Contact Rating (Current)	Mounting Type	Contact Material	Relay Type	Termination Style	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Coil Current	Release Time	Coil Voltage	Must Operate Voltage	Must Release Voltage	Seal Rating	Switching Voltage [Max]	Load - Max Switching	Operate Time	Features
CIT Relay and Switch J114AF1CHS5VDC.53	47 Ohms	16 A	Through Hole	Silver Tin Oxide (AgSnO)	General Purpose	PC Pin	SPDT (1 Form C)	-55 C	105 ░C	Non Latching	106.4 mA	10 ms	5 VDC	3.75 VDC	0.5 VDC	Sealed - Fully	110 VDC 380 VAC	1760 W 6080 VA	20 ms
CIT Relay and Switch J114AF1AHS24VDC.53	1.05 kOhms	16 A	Through Hole	Silver Tin Oxide (AgSnO)	General Purpose	PC Pin	SPST-NO (1 Form A)	-55 C	105 ░C	Non Latching		10 ms	24 VDC	18 VDC	2.4 VDC	Sealed - Fully	110 VDC 380 VAC	1760 W 6080 VA	20 ms	Alternate Pinout
CIT Relay and Switch J114AF1AS24VDC.53	1.05 kOhms	16 A	Through Hole	Silver Tin Oxide (AgSnO)	General Purpose	PC Pin	SPST-NO (1 Form A)	-55 C	105 ░C	Non Latching		10 ms	24 VDC	18 VDC	2.4 VDC	Sealed - Fully	110 VDC 380 VAC	1760 W 6080 VA	20 ms
CIT Relay and Switch J114AF1CHS24VDC.53	1.05 kOhms	16 A	Through Hole	Silver Tin Oxide (AgSnO)	General Purpose	PC Pin	SPDT (1 Form C)	-55 C	105 ░C	Non Latching		10 ms	24 VDC	18 VDC	2.4 VDC	Sealed - Fully	110 VDC 380 VAC	1760 W 6080 VA	20 ms
CIT Relay and Switch J114AF1CHS12VDC.53	270 Ohms	16 A	Through Hole	Silver Tin Oxide (AgSnO)	General Purpose	PC Pin	SPDT (1 Form C)	-55 C	105 ░C	Non Latching	44.4 mA	10 ms	12 VDC	9 VDC	1.2 VDC	Sealed - Fully	110 VDC 380 VAC	1760 W 6080 VA	20 ms
CIT Relay and Switch J114AF1CS9VDC.53	150 Ohms	16 A	Through Hole	Silver Tin Oxide (AgSnO)	General Purpose	PC Pin	SPDT (1 Form C)	-55 C	105 ░C	Non Latching	0.06 A	10 ms	9 VDC	6.75 VDC	0.9 VDC	Sealed - Fully	110 VDC 380 VAC	1760 W 6080 VA	20 ms
CIT Relay and Switch J114AF1AS48VDC.53	4.25 kOhms	16 A	Through Hole	Silver Tin Oxide (AgSnO)	General Purpose	PC Pin	SPST-NO (1 Form A)	-55 C	105 ░C	Non Latching	11.3 mA	10 ms	48 VDC	36 VDC	4.8 VDC	Sealed - Fully	110 VDC 380 VAC	1760 W 6080 VA	20 ms
CIT Relay and Switch J114AF1CS48VDC.53	4.25 kOhms	16 A	Through Hole	Silver Tin Oxide (AgSnO)	General Purpose	PC Pin	SPDT (1 Form C)	-55 C	105 ░C	Non Latching	11.3 mA	10 ms	48 VDC	36 VDC	4.8 VDC	Sealed - Fully	110 VDC 380 VAC	1760 W 6080 VA	20 ms
CIT Relay and Switch J114AF1CHS48VDC.53	4.25 kOhms	16 A	Through Hole	Silver Tin Oxide (AgSnO)	General Purpose	PC Pin	SPDT (1 Form C)	-55 C	105 ░C	Non Latching	11.3 mA	10 ms	48 VDC	36 VDC	4.8 VDC	Sealed - Fully	110 VDC 380 VAC	1760 W 6080 VA	20 ms
CIT Relay and Switch J114AF1AHS3VDC.53	17 Ohms	16 A	Through Hole	Silver Tin Oxide (AgSnO)	General Purpose	PC Pin	SPST-NO (1 Form A)	-55 C	105 ░C	Non Latching		10 ms		2.25 VDC	0.3 VDC	Sealed - Fully	110 VDC 380 VAC	1760 W 6080 VA	20 ms
