PSC-100 Series

Catalog

AC/DC CONVERTER 27.6V 27.6V 101W

Part	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Approval Agency	Features	Current - Output 1	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Voltage - Isolation	Applications	Voltage - Output 2	Current - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Voltage - Output 1 [custom]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]

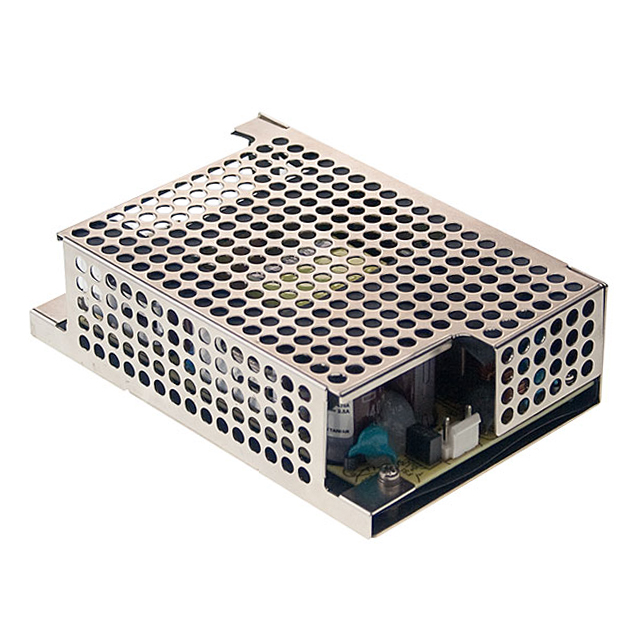

MEAN WELL USA Inc. PSC-100B-C	27.6 V	264 VAC 370 VDC	90 VAC 127 VDC	2	CB CE cURus TUV	Adjustable Output Universal Input	2.4 A	101 W	85.09 mm	130 mm	85 mm	37 mm	1.46 in	5.12 in	88 %	3000 V	ITE (Commercial)	27.6 V	1.25 A	70 °C	-20 °C	Chassis Mount	Enclosed
MEAN WELL USA Inc. PSC-100A-C		264 VAC 370 VDC	90 VAC 127 VDC	2	CB CE cURus TUV	Adjustable Output Universal Input	4.75 A	100 W	85.09 mm	130 mm	85 mm	37 mm	1.46 in	5.12 in	86 %	3000 V	ITE (Commercial)	13.8 V	2.5 A	70 °C	-20 °C	Chassis Mount	Enclosed	13.8 V

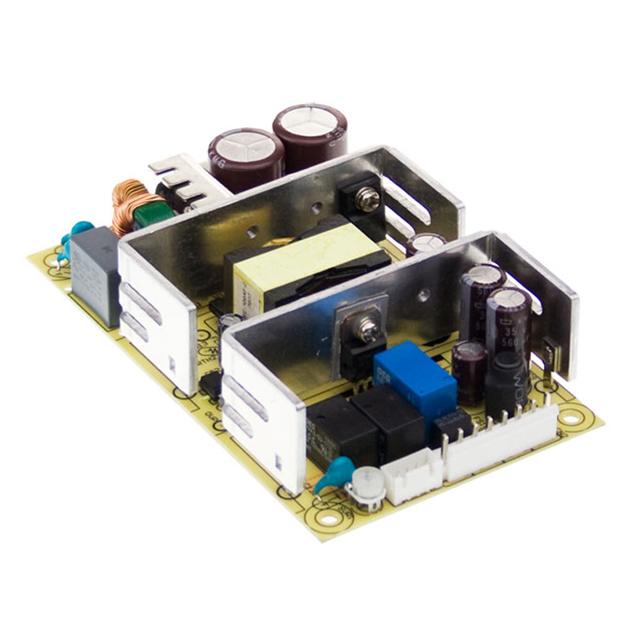

MEAN WELL USA Inc. PSC-100A		264 VAC 370 VDC	90 VAC 127 VDC	2	CB CE cURus TUV	Adjustable Output Universal Input	4.75 A	100 W	76.2 mm				31 mm	127 mm	86 %	3000 V	ITE (Commercial)	13.8 V	2.5 A	70 °C	-20 °C	Chassis Mount	Open Frame	13.8 V	5 "	1.22 in	3 "
MEAN WELL USA Inc. PSC-100B	27.6 V	264 VAC 370 VDC	90 VAC 127 VDC	2	CB CE cURus TUV	Adjustable Output Universal Input	2.4 A	101 W	76.2 mm				31 mm	127 mm	88 %	3000 V	ITE (Commercial)	27.6 V	1.25 A	70 °C	-20 °C	Chassis Mount	Open Frame		5 "	1.22 in	3 "
