17K732 Series
Manufacturer: Rosenberger
Beta
⌘K

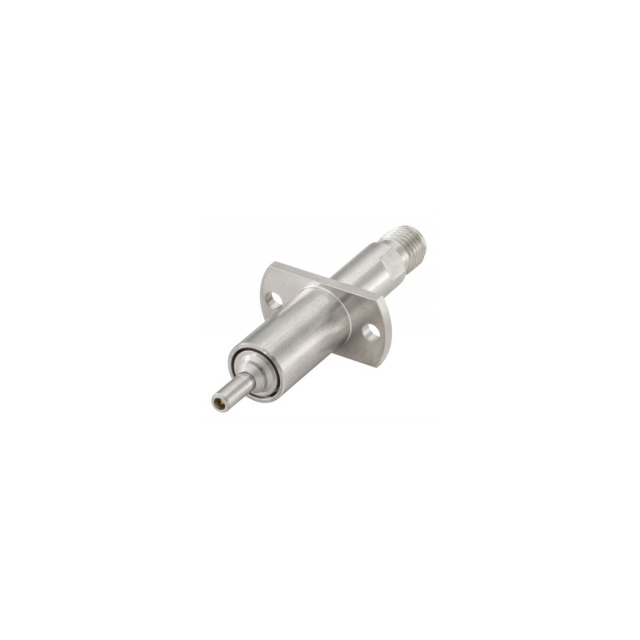

LONGWIPE SMP ADAPTER
| Part | Body Material | Body Finish | Insertion Loss | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mating Cycles | Adapter Type | Style | Frequency - Max [Max] | Center Gender | Mounting Type | Fastening Type | Conversion Type | Adapter Series | Impedance | Convert To (Adapter End) | Convert From (Adapter End) | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | White Bronze | 0.12 dB | Beryllium Copper | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | 1000 | Jack to Jack | Straight | 6000 MHz | Female to Female | Free Hanging (In-Line) | Snap-On Threaded | Between Series | SMA to SMP | 50 Ohms | SMP Jack Female Socket | Female Socket SMA Jack | Gold |
