27MTP Series

Catalog

HEX PCB SUPPORT, #6-32 THREADED

Part	Mounting Type	Support Panel Thickness [custom]	Support Panel Thickness [custom]	Between Board Height	Between Board Height	Between Board Height	Holding Type	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall
Essentra Components 27MTP00625	Threaded Stud	0.063 in	1.59 mm	15.88 mm	0.625 in	5 8	Snap Fit	Nylon	0.156 in	3.96 mm	25.43 mm	1.001 in

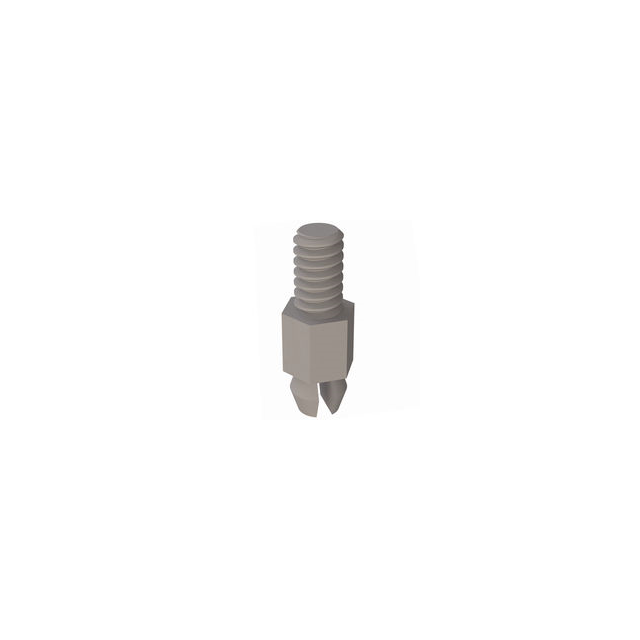

Essentra Components 27MTP00395	Threaded Stud	0.063 in	1.59 mm	10.03 mm	0.395 in		Snap Fit	Nylon	0.156 in	3.96 mm	19.58 mm	0.771 "
Essentra Components 27MTP00875	Threaded Stud	0.063 in	1.59 mm	22.23 mm	0.875 in	0.875 in	Snap Fit	Nylon	0.156 in	3.96 mm	31.78 mm	1.251 in
Essentra Components 27MTP00250	Threaded Stud	0.063 in	1.59 mm	0.25 in	6.35 mm		Snap Fit	Nylon	0.156 in	3.96 mm	15.9 mm	0.626 in
Essentra Components 27MTP00125	Threaded Stud	0.063 in	1.59 mm	3.18 mm	0.125 in	0.125 in	Snap Fit	Nylon	0.156 in	3.96 mm			12.73 mm	0.501 "
Essentra Components 27MTP00375	Threaded Stud	0.063 in	1.59 mm	9.53 mm	0.375 in	0.375 "	Snap Fit	Nylon	0.156 in	3.96 mm	19.08 mm	0.751 "
Essentra Components 27MTP00187	Threaded Stud	0.063 in	1.59 mm	0.1875 in	0.187 in	4.75 mm	Snap Fit	Nylon	0.156 in	3.96 mm	14.3 mm	0.563 in
Essentra Components 27MTP00750	Threaded Stud	0.063 in	1.59 mm	19.05 mm	0.75 "	0.75 "	Snap Fit	Nylon	0.156 in	3.96 mm	28.6 mm	1.126 in
