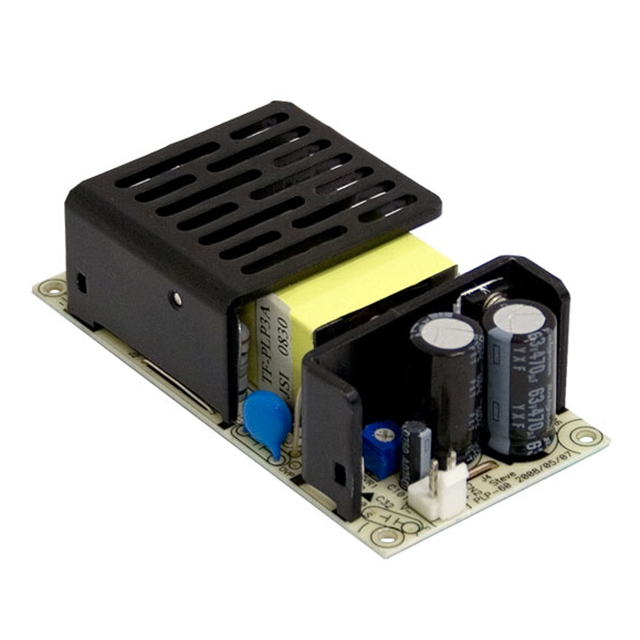

PLP-60 Series

Catalog

LED DRIVER CC AC/DC 36-48V 1.3A

Part	Mounting Type	Efficiency	Features	Termination Style	Voltage - Output [Max]	Voltage - Output [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Power (Watts)	Voltage - Input (Max) [Max]	Topology	Voltage - Input (Min) [Min]	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Current - Output (Max) [Max]	Number of Outputs	Current - Output (Max)
MEAN WELL USA Inc. PLP-60-48	Chassis Mount	89 %	OCP OVP SCP	Rectangular 2 Position	48 V	36 V	-30 ░C	70 °C	3750 VDC	62 W	264 VAC	AC DC Converter	90 VAC	Constant Current	29.6 mm	50.8 mm	1.17 "	4 "	2 in	101.6 mm	CB CCC CE TUV UR	1.3 A	1
MEAN WELL USA Inc. PLP-60-24	Chassis Mount	88 %	OCP OVP SCP	Rectangular 2 Position	24 V	18 V	-30 ░C	70 °C	3750 VDC	60 W	264 VAC	AC DC Converter	90 VAC	Constant Current	29.6 mm	50.8 mm	1.17 "	4 "	2 in	101.6 mm	CB CCC CE cURus TUV	2.5 A	1
MEAN WELL USA Inc. PLP-60-12	Chassis Mount	84 %	OCP OVP SCP	Rectangular 2 Position	12 V	9 V	-30 ░C	70 °C	3750 VDC	60 W	264 VAC	AC DC Converter	90 VAC	Constant Current	29.6 mm	50.8 mm	1.17 "	4 "	2 in	101.6 mm	CB CCC CE cURus TUV		1	5 A
