1734350 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

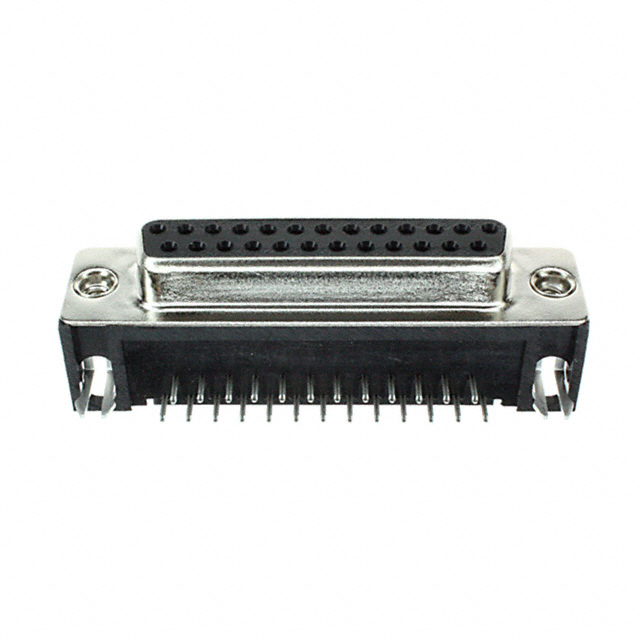

CONN D-SUB RCPT 25POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Dielectric Material | Color | Termination | Flange Feature | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Contact Type | Mounting Type | Connector Type | Number of Positions | Backset Spacing | Backset Spacing | Features | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish | Number of Rows [custom] | Connector Style | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Phosphor Bronze | 250 V | Polybutylene Terephthalate (PBT) | Black | Solder | Housing/Shell | 4-40 | 0.38 µm | 15 µin | UL94 V-0 | Signal | Right Angle Through Hole | Receptacle Female Sockets | 25 | 8.08 mm | 0.318 " | Board Lock | 2 A | B DB | 3 | Gold | 2 | D-Sub | Nickel Plated Steel |
