SMLD12 Series

Industry standard 0603 Size, Long life type, Blue-green Chip LED

Catalog

Industry standard 0603 Size, Long life type, Blue-green Chip LED

Part	Mounting Type	Height (Max) [z]	Lens Style	Voltage - Forward (Vf) (Typ)	Lens Color	Wavelength - Dominant	Current - Test	Lens Size [y]	Lens Size [x]	Millicandela Rating	Color	Supplier Device Package	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Package / Case	Package / Case

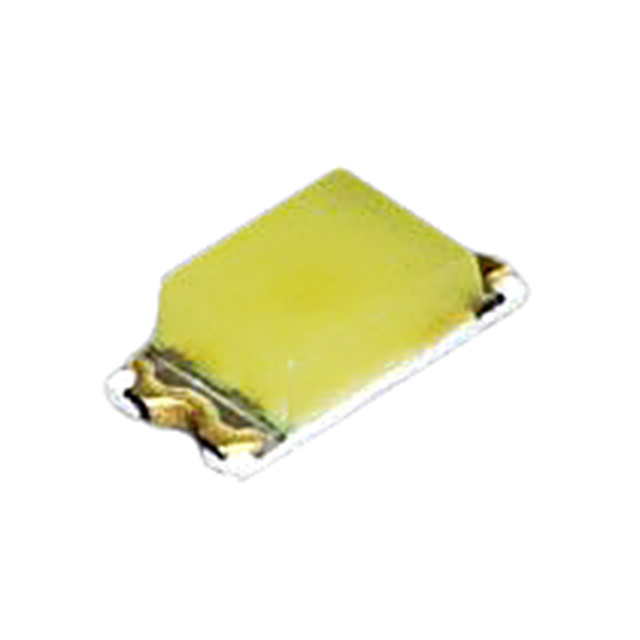

Rohm Semiconductor SMLD12E3N1WT86	Surface Mount	0.65 mm	Rectangle with Flat Top	2.9 V	White	496 nm	5 mA	0.8 mm	1.2 mm	85 mcd	Blue-Green	1608	603	1.6 mm	0.8 mm	Diffused	1608 Metric	0603

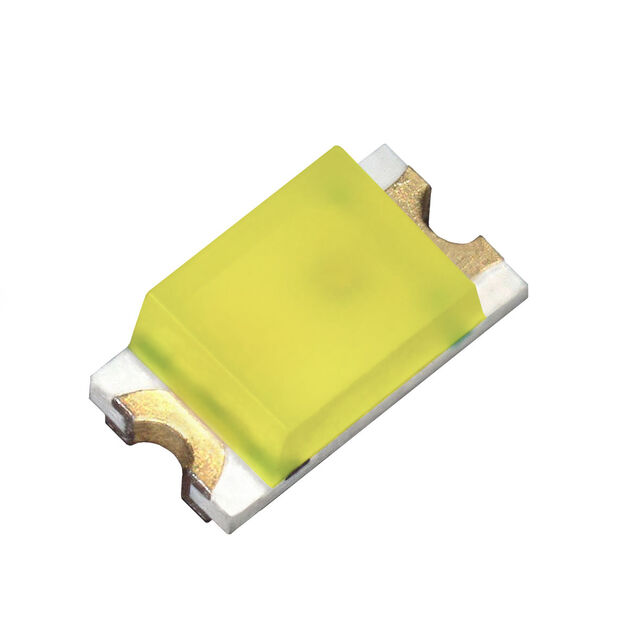

Rohm Semiconductor SMLD12WBN1W1	Surface Mount	0.65 mm	Rectangle with Flat Top	2.9 V	White		5 mA	0.8 mm	1.2 mm	120 mcd	White	1608	603	1.6 mm	0.8 mm		1608 Metric	0603
Rohm Semiconductor SMLD12E2N1WT86	Surface Mount	0.65 mm	Rectangle with Flat Top	2.9 V	White	505 nm	5 mA	0.8 mm	1.2 mm	120 mcd	Blue-Green	1608	603	1.6 mm	0.8 mm	Diffused	1608 Metric	0603

Industry standard 0603 Size, Long life type, Blue-green Chip LED

SMLD12E3N1W has a long life and the residual luminous rate exceeds 90% even after 1000 hours (under Ta=85℃,IF=20mA).
