EVQ-PL Series

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Illumination	Termination Style	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage [x]	Actuator Type	Outline [x]	Outline [y]	Mechanical Life	Mounting Type	Circuit	Actuator Orientation	Actuator Height off PCB, Vertical	Switch Function	Switch Travel	Actuator Height off PCB, Vertical [z]	Features

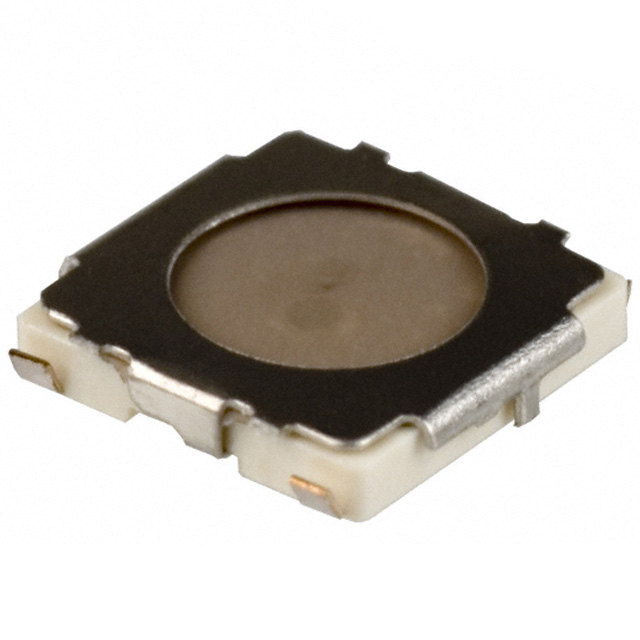

Panasonic Industrial Automation Sales EVQ-PLFA08	Non-Illuminated	J Lead	163 gf	-20 C	70 °C	0.02 A 15 VDC	Without	4.9 mm	4.9 mm	500000 Cycles	Surface Mount	SPST-NO	Top Actuated	0.8 mm	Off-Mom	0.25 mm

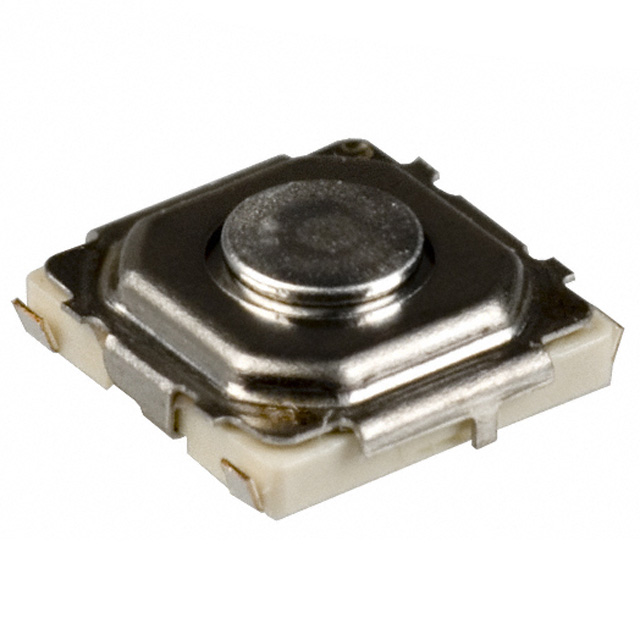

Panasonic Industrial Automation Sales EVQ-PLMA15	Non-Illuminated	J Lead	265 gf	-20 C	70 °C	0.02 A 15 VDC	Standard	4.9 mm	4.9 mm	200000 Cycles	Surface Mount	SPST-NO	Top Actuated		Off-Mom	0.25 mm	1.5 mm	Push Plate
Panasonic Industrial Automation Sales EVQ-PLDA15	Non-Illuminated	J Lead	102 gf	-20 C	70 °C	0.02 A 15 VDC	Standard	4.9 mm	4.9 mm	500000 Cycles	Surface Mount	SPST-NO	Top Actuated		Off-Mom	0.25 mm	1.5 mm	Push Plate

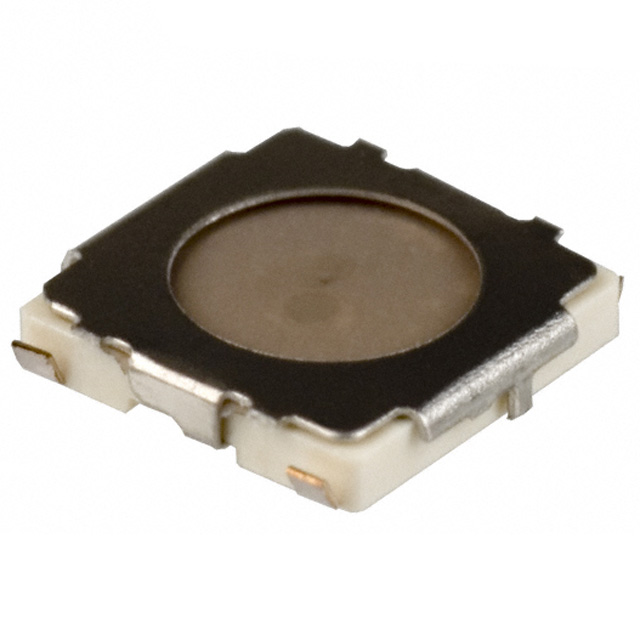

Panasonic Industrial Automation Sales EVQ-PLKA08	Non-Illuminated	J Lead	265 gf	-20 C	70 °C	0.02 A 15 VDC	Without	4.9 mm	4.9 mm	200000 Cycles	Surface Mount	SPST-NO	Top Actuated	0.8 mm	Off-Mom	0.25 mm
