FMS Series
Manufacturer: OptiFuse
Beta
⌘K
FUSE BRD MNT 125MA 250VAC RADIAL
| Part | Melting I˛t | Fuse Type | Mounting Type | Size / Dimension [z] | Size / Dimension [diameter] | Response Time | Current Rating (Amps) | Approval Agency | Package / Case | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Melting I²t | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OptiFuse | 0.0019 | Board Mount (Cartridge Style Excluded) | Through Hole | 0.327 " 8.3 mm | 0.335 " 8.5 mm | Fast Blow | 0.125 Amps | cULus UL 248 | Can Radial Vertical | 50 A | 250 V | |||||||||
OptiFuse | 0.11 | Board Mount (Cartridge Style Excluded) | Through Hole | 0.327 " 8.3 mm | 0.335 " 8.5 mm | Fast Blow | 1 A | cULus UL 248 | Can Radial Vertical | 50 A | 250 V | 0.11 I²t | ||||||||
OptiFuse | 0.63 | Board Mount (Cartridge Style Excluded) | Through Hole | 0.327 " 8.3 mm | 0.335 " 8.5 mm | Fast Blow | 2 A | cULus UL 248 | Can Radial Vertical | 50 A | 250 V | 0.63 | ||||||||

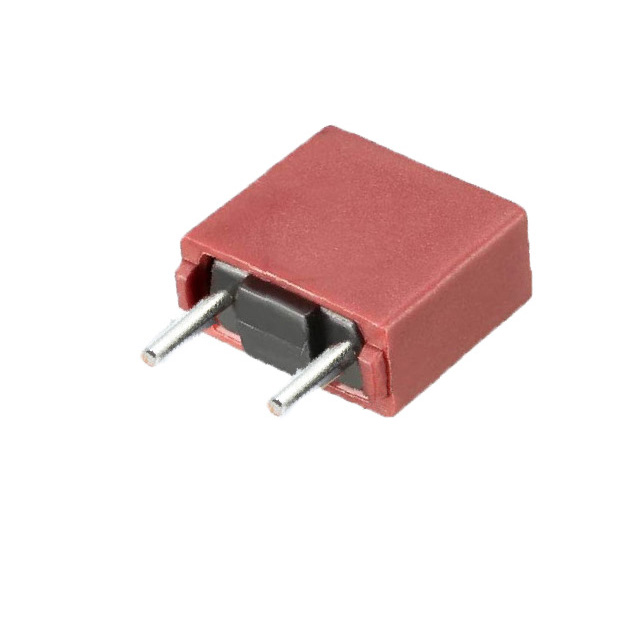

 OptiFuse | 0.1947 | Board Mount (Cartridge Style Excluded) | Through Hole | 7.7 mm | Fast Blow | 800 mA | IEC 60127 | Can Radial Vertical | 35 A | 250 V | 0.1947 | 125 VDC | -55 C | 125 °C | 0.303 " | 0.335 " | 0.169 " | 8.5 mm | 4.3 mm | |
OptiFuse | 0.0013 | Board Mount (Cartridge Style Excluded) | Through Hole | 0.327 " 8.3 mm | 0.335 " 8.5 mm | Fast Blow | 100 mA | cULus UL 248 | Can Radial Vertical | 50 A | 250 V | 0.0013 | ||||||||
OptiFuse | 0.0065 | Board Mount (Cartridge Style Excluded) | Through Hole | 0.327 " 8.3 mm | 0.335 " 8.5 mm | Fast Blow | 0.2 A | cULus UL 248 | Can Radial Vertical | 50 A | 250 V | 0.0065 | ||||||||
OptiFuse | 0.069 | Board Mount (Cartridge Style Excluded) | Through Hole | 0.327 " 8.3 mm | 0.335 " 8.5 mm | Fast Blow | 800 mA | cULus UL 248 | Can Radial Vertical | 50 A | 250 V | |||||||||
OptiFuse | 0.014 | Board Mount (Cartridge Style Excluded) | Through Hole | 0.327 " 8.3 mm | 0.335 " 8.5 mm | Fast Blow | 0.25 A | cULus UL 248 | Can Radial Vertical | 50 A | 250 V | 0.014 | ||||||||
OptiFuse | 0.024 | Board Mount (Cartridge Style Excluded) | Through Hole | 0.327 " 8.3 mm | 0.335 " 8.5 mm | Fast Blow | 0.5 A | cULus UL 248 | Can Radial Vertical | 50 A | 250 V | 0.024 | ||||||||
OptiFuse | 0.38 | Board Mount (Cartridge Style Excluded) | Through Hole | 0.327 " 8.3 mm | 0.335 " 8.5 mm | Fast Blow | 1.6 A | cULus UL 248 | Can Radial Vertical | 50 A | 250 V | 0.38 |
