68602 Series

Catalog

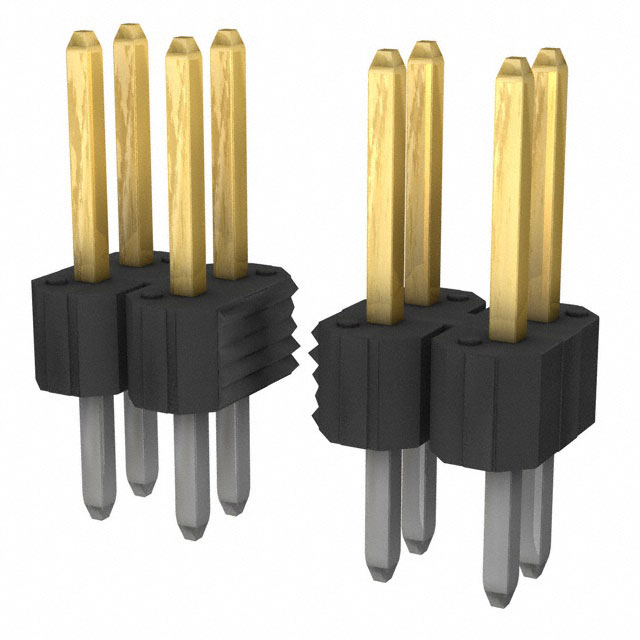

CONN HEADER VERT 34POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Contact Finish - Mating	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating	Insulation Color	Shrouding	Number of Positions Loaded	Contact Type	Material Flammability Rating	Connector Type	Mounting Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Number of Rows	Contact Shape	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post
Amphenol ICC (FCI) 68602-134HLF	30 Áin	0.76 Ám	Phosphor Bronze	Push-Pull	Gold or Gold GXT™	3 A	0.23 in	5.84 mm	Black	Unshrouded	All	Male Pin	UL94 V-0	Header	Through Hole	0.1 in	2.54 mm	-65 ░C	130 °C	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Square	0.48 in	12.19 mm	34	0.15 in	3.81 mm
Amphenol ICC (FCI) 68602-372	50 µin	1.27 µm	Phosphor Bronze	Push-Pull	Gold or Gold GXT™	3 A	0.23 in	5.84 mm	Black	Unshrouded	All	Male Pin	UL94 V-0	Header	Through Hole	0.1 in	2.54 mm	-65 ░C	130 °C	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Square	0.48 in	12.19 mm	72	0.15 in	3.81 mm

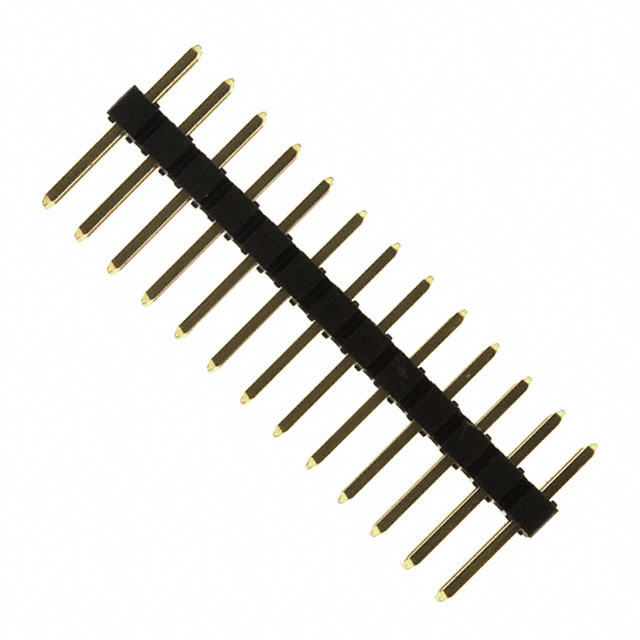

Amphenol ICC (FCI) 68602-226HLF	15 µin	0.38 µm	Phosphor Bronze	Push-Pull	Gold or Gold GXT™	3 A	0.23 in	5.84 mm	Black	Unshrouded	All	Male Pin	UL94 V-0	Header	Through Hole	0.1 in	2.54 mm	-65 ░C	130 °C	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Square	0.48 in	12.19 mm	26	0.15 in	3.81 mm
Amphenol ICC (FCI) 68602-172H	30 Áin	0.76 Ám	Phosphor Bronze	Push-Pull	Gold or Gold GXT™		0.23 in	5.84 mm	Black	Unshrouded	All	Male Pin	UL94 V-0	Header	Through Hole	0.1 in	2.54 mm			Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Square	0.48 in	12.19 mm	72	0.15 in	3.81 mm
Amphenol ICC (FCI) 68602-152HLF	30 Áin	0.76 Ám	Phosphor Bronze	Push-Pull	Gold or Gold GXT™	3 A	0.23 in	5.84 mm	Black	Unshrouded	All	Male Pin	UL94 V-0	Header	Through Hole	0.1 in	2.54 mm	-65 ░C	130 °C	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Square	0.48 in	12.19 mm	52	0.15 in	3.81 mm
Amphenol ICC (FCI) 68602-156HLF	30 Áin	0.76 Ám	Phosphor Bronze	Push-Pull	Gold or Gold GXT™	3 A	0.23 in	5.84 mm	Black	Unshrouded	All	Male Pin	UL94 V-0	Header	Through Hole	0.1 in	2.54 mm	-65 ░C	130 °C	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Square	0.48 in	12.19 mm	56	0.15 in	3.81 mm

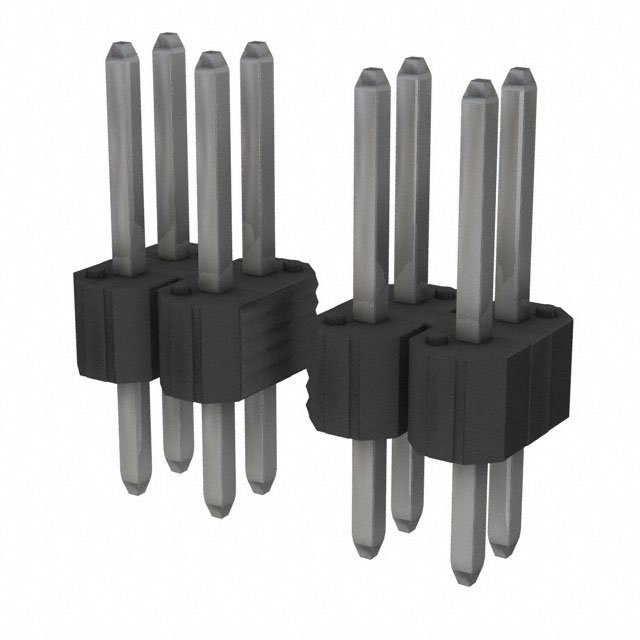

Amphenol ICC (FCI) 68602-446HLF	100 çin	2.54 çm	Phosphor Bronze	Push-Pull		3 A	0.23 in	5.84 mm	Black	Unshrouded	All	Male Pin	UL94 V-0	Header	Through Hole	0.1 in	2.54 mm	-65 ░C	130 °C	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Square	0.48 in	12.19 mm	46	0.15 in	3.81 mm	Tin
Amphenol ICC (FCI) 68602-168HLF	30 Áin	0.76 Ám	Phosphor Bronze	Push-Pull	Gold or Gold GXT™	3 A	0.23 in	5.84 mm	Black	Unshrouded	All	Male Pin	UL94 V-0	Header	Through Hole	0.1 in	2.54 mm	-65 ░C	130 °C	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Square	0.48 in	12.19 mm	68	0.15 in	3.81 mm
Amphenol ICC (FCI) 68602-220HLF	15 µin	0.38 µm	Phosphor Bronze	Push-Pull	Gold or Gold GXT™	3 A	0.23 in	5.84 mm	Black	Unshrouded	All	Male Pin	UL94 V-0	Header	Through Hole	0.1 in	2.54 mm	-65 ░C	130 °C	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Square	0.48 in	12.19 mm	20	0.15 in	3.81 mm
Amphenol ICC (FCI) 68602-472	100 çin	2.54 çm	Phosphor Bronze	Push-Pull		3 A	0.23 in	5.84 mm	Black	Unshrouded	All	Male Pin	UL94 V-0	Header	Through Hole	0.1 in	2.54 mm	-65 ░C	130 °C	Solder	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Square	0.48 in	12.19 mm	72	0.15 in	3.81 mm
