794488 Series

Catalog

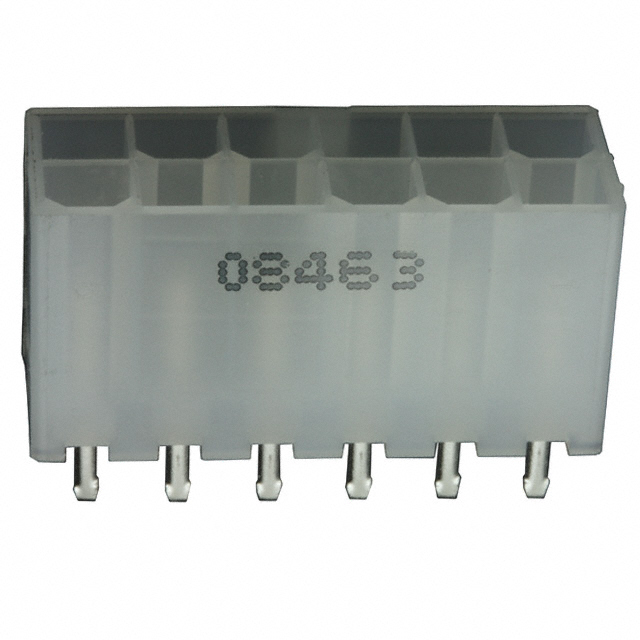

CONN HEADER VERT 12POS 4.2MM

Part	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Number of Rows [custom]	Number of Positions	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Material	Connector Type	Fastening Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Material	Number of Positions Loaded	Contact Shape	Insulation Height [z]	Insulation Height [z]
TE Connectivity AMP Connectors 1-794488-1	Solder	-55 C	105 ░C	Board to Board Cable	Male Pin	118.1 µin	3 µm	600 VAC	Through Hole	0.165 in	4.2 mm	Shrouded - 4 Wall	2	12	Natural	0.165 in	4.2 mm	Nylon Polyamide (PA)	Header	Locking Ramp	UL94 V-0	0.138 in	3.5 mm	Tin	Copper Alloy	All	Square	12.8 mm	0.504 "
