8520 Series

Catalog

HOOK-UP STRND 14AWG BLU

Part	Wire Gauge	Qualification	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Features	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Voltage	Jacket Color	Jacket (Insulation) Material	Length [x]	Length [x]	Operating Temperature
Belden Inc. 8520 0061000	14.5 AWG	MIL-W-76C Type MW	0.111 "	2.82 mm	Copper Tinned	Chemical Resistant	41	30	304.8 m	1000 ft	0.018 in	0.46 mm	Hook-Up	1 kV	Blue	Poly-Vinyl Chloride (PVC)

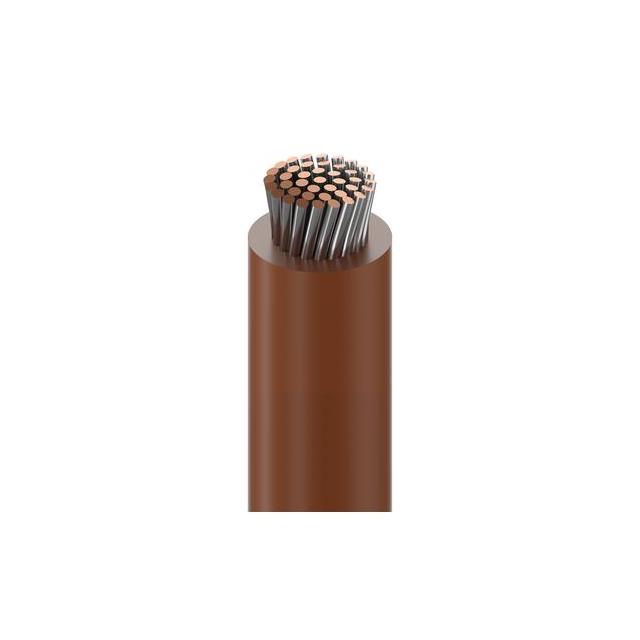

Belden Inc. 8520 0031000	14.5 AWG	MIL-W-76C Type MW	0.111 "	2.82 mm	Copper Tinned		41	30	304.8 m	1000 ft	0.018 in	0.46 mm	Hook-Up	1 kV	Orange	Poly-Vinyl Chloride (PVC)
Belden Inc. 8520 0011000	14.5 AWG	MIL-W-76C Type MW	0.111 "	2.82 mm	Copper Tinned		41	30	304.8 m	1000 ft	0.018 in	0.46 mm	Hook-Up	1 kV	Brown	Poly-Vinyl Chloride (PVC)
Belden Inc. 8520 013100	14.5 AWG	MIL-W-76C Type MW	0.111 "	2.82 mm	Copper Tinned	Chemical Resistant	41	30			0.018 in	0.46 mm	Hook-Up	1 kV	Blue	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m
Belden Inc. 8520 0181000	14.5 AWG	MIL-W-76C Type MW	0.111 "	2.82 mm	Copper Tinned	Chemical Resistant	41	30	304.8 m	1000 ft	0.018 in	0.46 mm	Hook-Up	1 kV	White Blue Stripe	Poly-Vinyl Chloride (PVC)
Belden Inc. 8520 0091000	14.5 AWG	MIL-W-76C Type MW	0.111 "	2.82 mm	Copper Tinned	Chemical Resistant	41	30	304.8 m	1000 ft	0.018 in	0.46 mm	Hook-Up	1 kV	White	Poly-Vinyl Chloride (PVC)
Belden Inc. 8520 005100	14.5 AWG	MIL-W-76C Type MW	0.111 "	2.82 mm	Copper Tinned	Chemical Resistant	41	30			0.018 in	0.46 mm	Hook-Up	1 kV	Green	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m	80 °C
Belden Inc. 8520 0101000	14.5 AWG	MIL-W-76C Type MW	0.111 "	2.82 mm	Copper Tinned	Chemical Resistant	41	30	304.8 m	1000 ft	0.018 in	0.46 mm	Hook-Up	1 kV	Black	Poly-Vinyl Chloride (PVC)
Belden Inc. 8520 0051000	14.5 AWG	MIL-W-76C Type MW	0.111 "	2.82 mm	Copper Tinned	Chemical Resistant	41	30	304.8 m	1000 ft	0.018 in	0.46 mm	Hook-Up	1 kV	Green	Poly-Vinyl Chloride (PVC)
Belden Inc. 8520 003100	14.5 AWG	MIL-W-76C Type MW	0.111 "	2.82 mm	Copper Tinned		41	30			0.018 in	0.46 mm	Hook-Up	1 kV	Orange	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m
